Sony SSC-DC593 - 1 Service Overview; Board Location; Installation and Removal of Cabinet; Upper Case

1-1
SSC-DC593/DC593P/DC598P (E)
Section 1
Service Overview

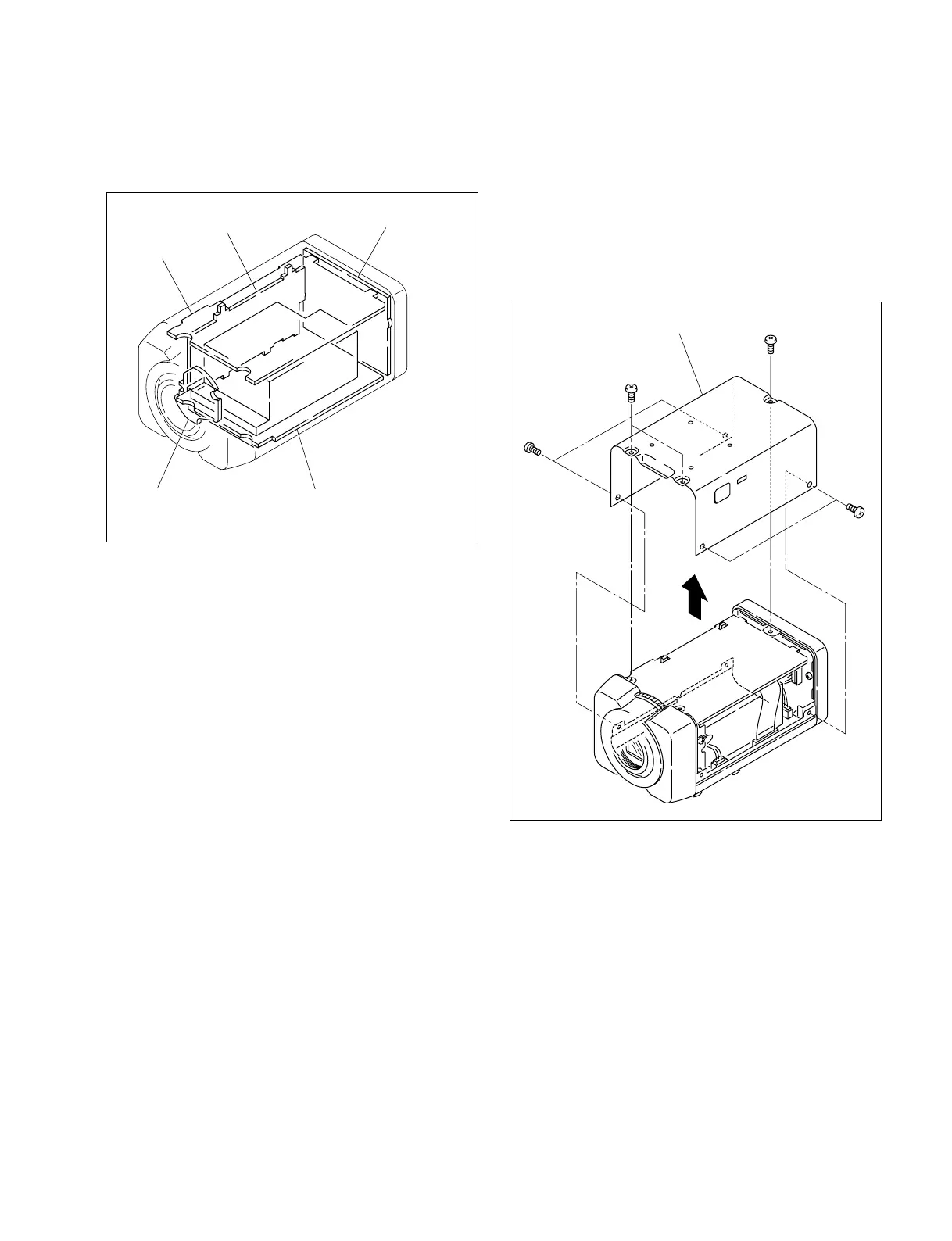

FC-92 board
CT-221 board
PR-269 board
BI-156 board
AC/DC power supply (for SSC-593/593P)
Switchin
g
re
g
ulator (for SSC-598P)
B 2x4
B 2x4
B 2x4
B 2x4
Upper case assembly
1-1. Board Location 1-2. Installation and Removal of Cabinet
1-2-1. Upper Case
1. Remove the seven screws, then remove the upper case
in the direction indicated by the arrow.
2. Attach the upper case in the reverse order of step 1.
