STR-DA5400ES
7
A-VIDEO BOARD SERVICE POSITION

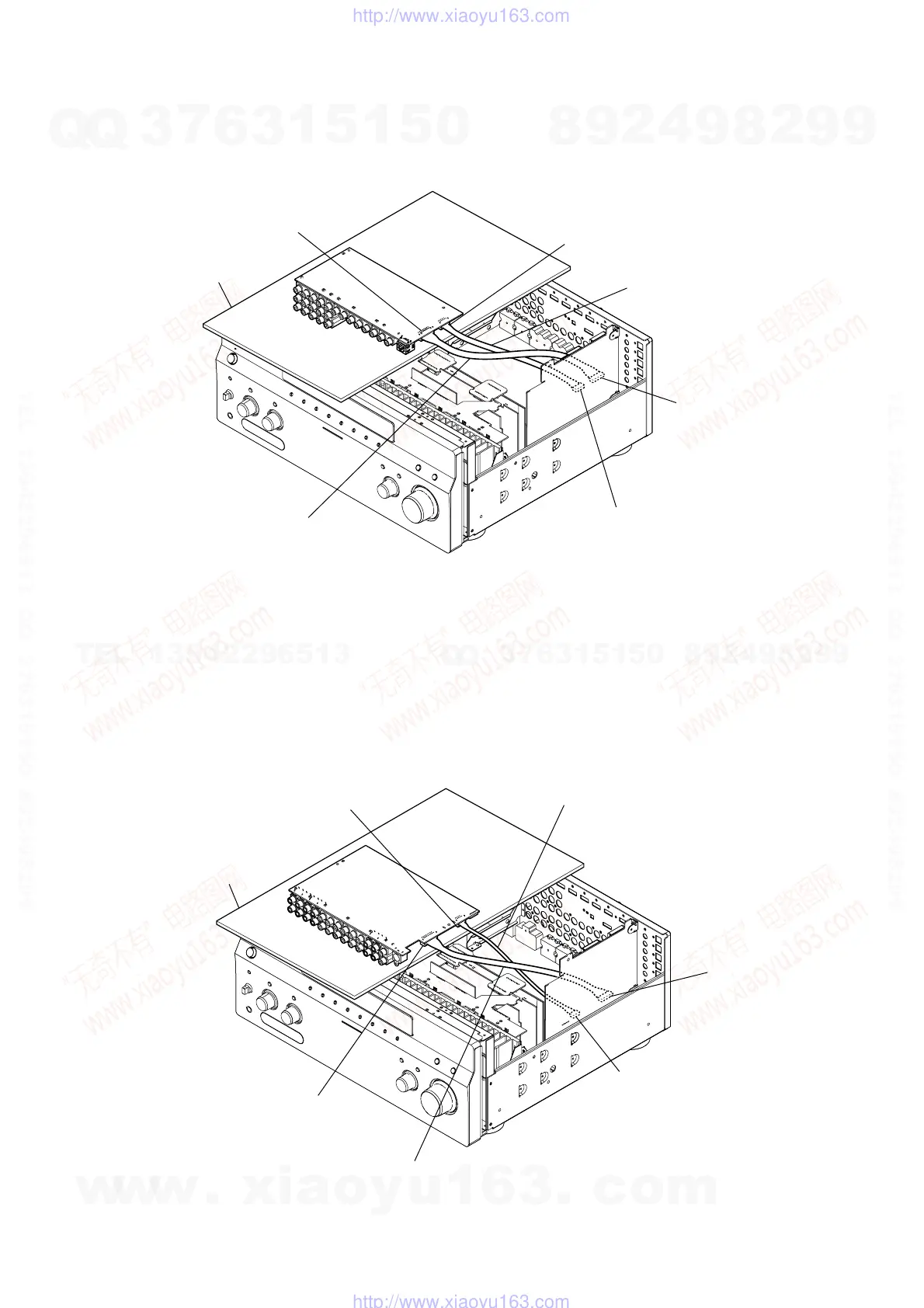

In checking the A-VIDEO board, prepare jig (extension cable J-2501-255-A: 1.25 mm Pitch, 10 cores, Length 300 mm/J-2501-256-A: 1.25
mm Pitch, 12 cores, Length 300 mm).
ANALOG BOARD SERVICE POSITION
In checking the ANALOG board, prepare jig (extension cable J-2501-254-A: 1.25 mm Pitch, 8 cores, Length 300 mm/J-2501-258-A: 1.25
mm Pitch, 16 cores, Length 300 mm).
Connect jig (extension cable J-2501-255-A)
to the A-VIDEO board (CN6002) and
CONTROL board (CN2507).
A-VIDEO board
(CN6001)
A-VIDEO board
(CN6002)
insulating sheet
Connect jig (extension cable J-2501-256-A)
to the A-VIDEO board (CN6001) and
CONTROL board (CN2505).
CONTROL board
(CN2507)
CONTROL board
(CN2505)
Connect jig (extension cable J-2501-254-A)
to the ANALOG board (CN726) and
CONTROL board (CN2508).
ANALOG board
(CN726)
CONTROL board
(CN2503)
insulating sheet
ANALOG board
(CN601)
CONTROL board
(CN2508)
Connect jig (extension cable J-2501-258-A)
to the ANALOG board (CN601) and
CONTROL board (CN2503).
