STR-DA5400ES
8
CAPACITOR DISCHARGE

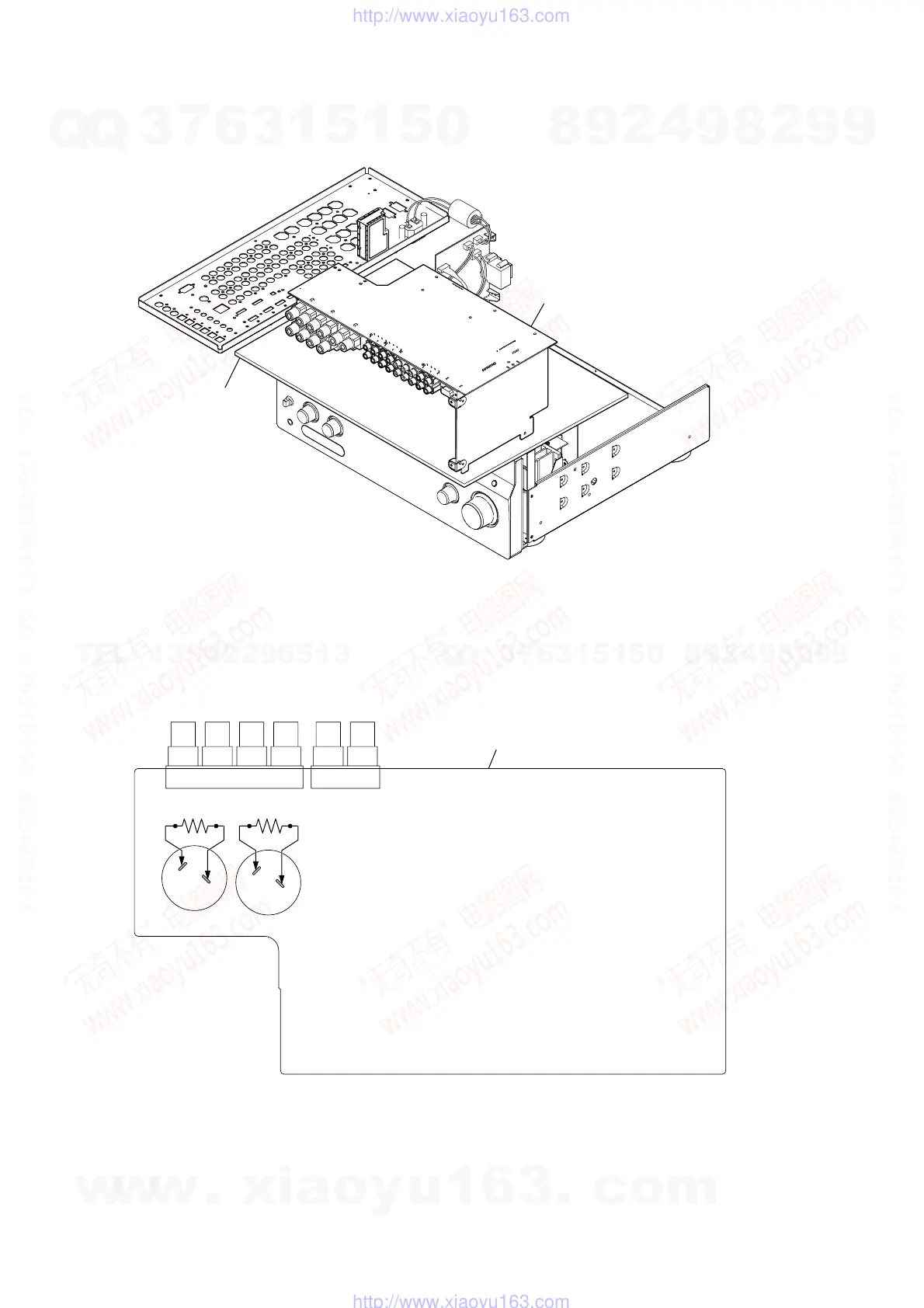

MAIN BOARD SERVICE POSITION
MAIN board
insulating sheet
C2490C2491
MAIN board
CAUTION: In checking the MAIN board, make a capacitor discharge
of C2490 or C2491 for electric shock prevention.
