Sony STR-DB2000 Service Manual

STR-DA2000ES/DB2000
6868

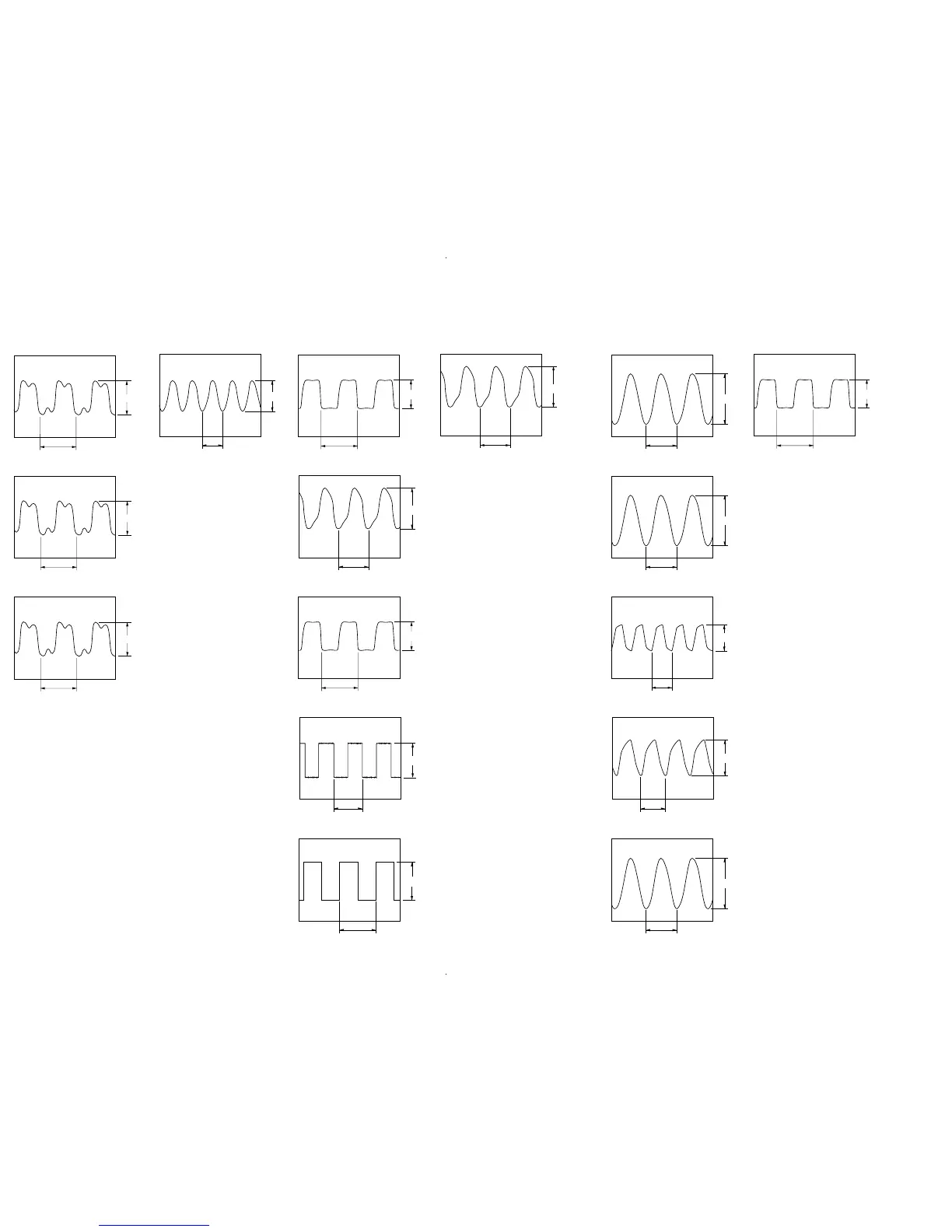

• Waveforms
– MULTI-VIDEO Board –
wa IC1271 5 (2Y) (VIDEO 1 mode)
ws IC1271 7 (1Y) (VIDEO 1 mode)
wd IC1241 8 (EXS) (VIDEO 1 mode)
2 IC2124 4 (Y)
3 IC2121 qd (CKOUT)
6 IC2601 tj
4 IC2121 qf (BCK)
5 IC2121 qg (LRCK)
– UP CONVERT Board –
ea IC3101 4 (XTAL) (VIDEO 1 mode)
– DISPLAY Board –
ra IC1001 6 (XOUT)
– DIGITAL Board –
1 IC2201 qs (MCLK2)
– D. AMP Board –
qa IC1471 4 (Y)
qs IC1401 wk (XFSOIN)
qd IC1401 yf (XFSIIN)
qf IC1401 uj (XFSOOUT)
qg IC1800 ws (XO)
6 Vp-p
70 ns
6 Vp-p
56 ns
6 Vp-p
56 ns
3.5 Vp-p
74 ns
3.6 Vp-p
81 ns
3.4 Vp-p
81 ns
3.2 Vp-p
0.3 us
3.1 Vp-p
21 ns
3.8 Vp-p
60 ns
7.2 Vp-p
20.4 ns
4.5 Vp-p
20.4 ns
4.5 Vp-p
12.4 ns
4.5 Vp-p
20.4 ns
2.6 Vp-p
125 ns
5 Vp-p
139 ns
3 Vp-p
1.6 us
