Sony STR-DB2000 - HEAT SINK Section

99
STR-DA2000ES/DB2000
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
401 A-4733-941-A REG BOARD, COMPLETE (STR-DA2000ES)
401 A-4734-035-A REG BOARD, COMPLETE
(STR-DB2000: SP, MY)
401 A-4734-064-A REG BOARD, COMPLETE
(STR-DB2000: AEP, UK)
402 3-905-609-11 SCREW (TRANSISTOR)
403 1-688-684-11 TH BOARD
404 4-383-023-01 SHEET, MICA
IC904 8-759-231-53 IC TA7805S

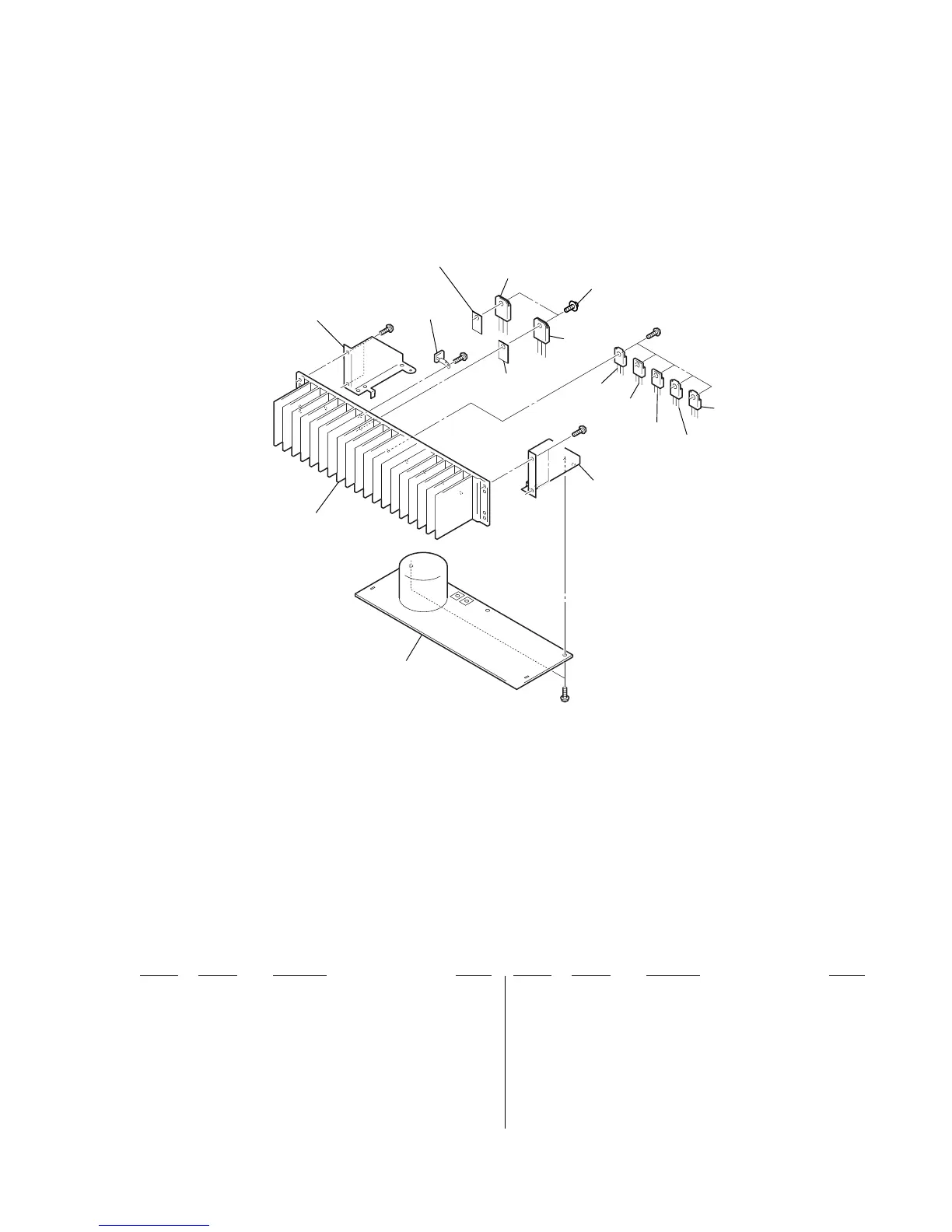

7-9. HEAT SINK SECTION
IC905 8-759-071-48 IC TA7807S
IC906 8-759-245-79 IC TA79005S
IC909 8-759-445-59 IC BA033T
IC910 8-759-231-53 IC TA7805S
Q904 6-550-625-01 TRANSISTOR 2SK1381
Q909 6-702-390-01 IC MN2488-OPY-MK
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
401
403
404
402
not supplied
not supplied
not supplied
Q909
supplied with
Q909
Q904
IC905
IC906
IC909
IC91
0
IC904
#1
#4
#1
#1
#1
