Sony STR-DB2000 - Exploded Views; 7-1. Case Section

91
STR-DA2000ES/DB2000
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Accessories are given in the last of the elec-
trical parts list.
• Color variation
SILVER: STR-DA2000ES/DB2000: AEP, UK
GOLD: STR-DB2000: Singapore, Malaysia
BLACK: STR-DB2000: AEP, UK
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color

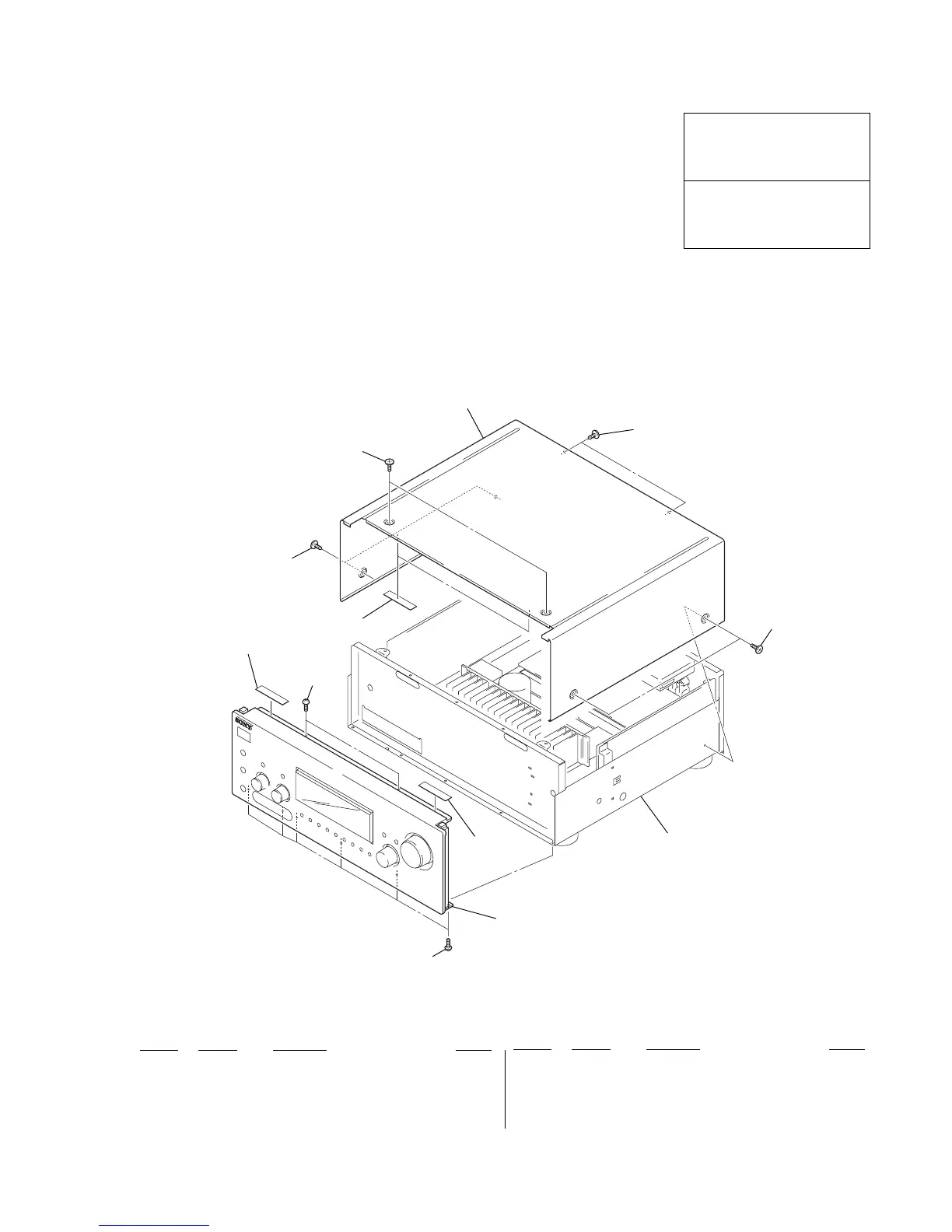

7-1. CASE SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-704-515-21 SCREW (BV/RING) (for BLACK)
1 3-704-515-31 SCREW (BV/RING) (for SILVER, GOLD)
2 4-227-843-01 SCREW (TP), FLAT HEAD (for BLACK)
2 4-227-843-31 SCREW (TP), FLAT HEAD (for SILVER, GOLD)
3 4-248-594-01 CASE (414535) (SILVER)
3 4-248-594-21 CASE (414535) (GOLD)
3 4-900-512-02 CASE (414535) (BLACK)
4 4-860-518-00 CUSHION
5 4-985-642-01 CUSHION
•Abbreviation
MY : Malaysia model
SP : Singapore model
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
1
1
5
4
4
2
2
2
2
3
power block section
front panel section
