STR-DA2000ES/DB2000

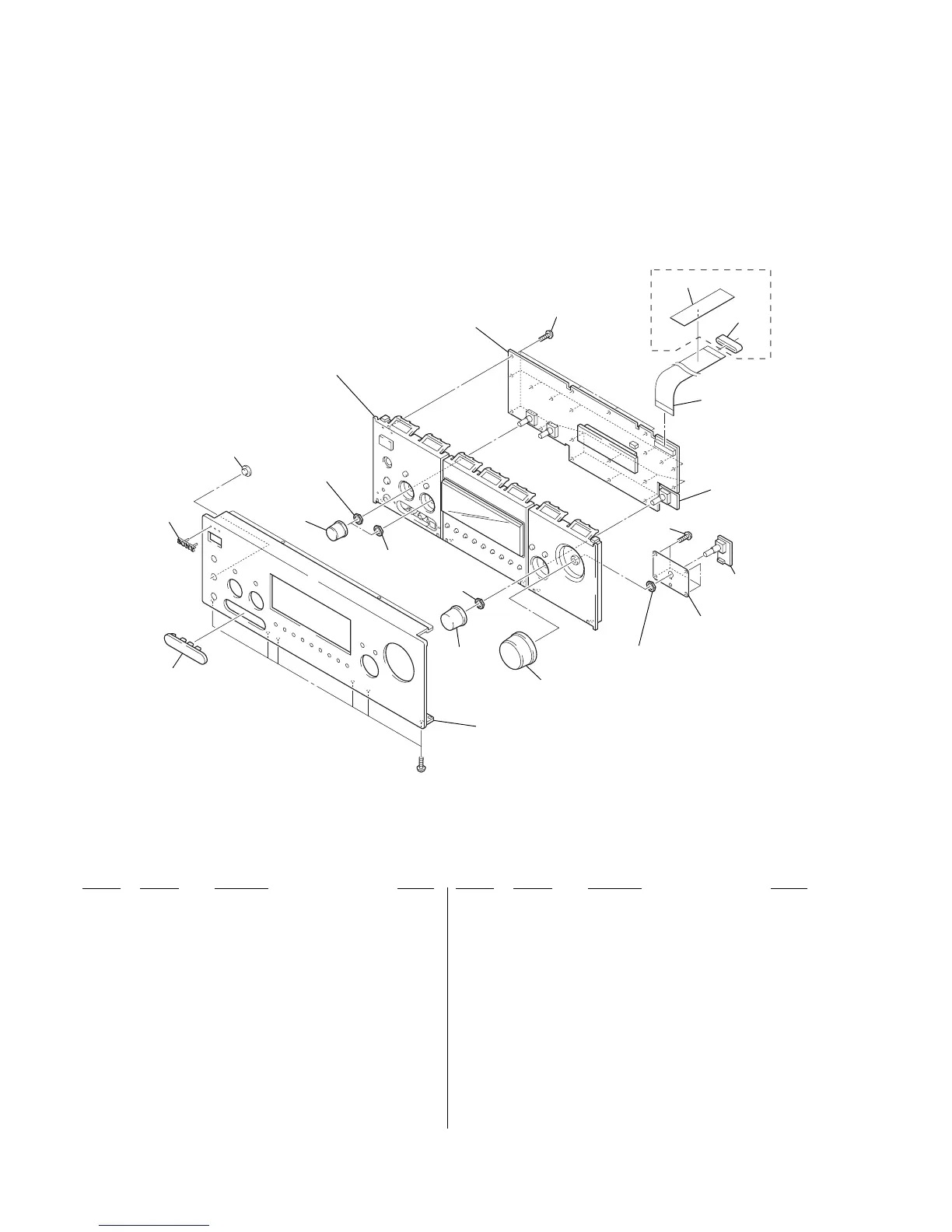

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-4955-963-2 LID ASSY (BLACK)
51 X-4955-967-1 LID ASSY (GOLD)
51 X-4955-968-2 LID ASSY (SILVER)
52 4-240-858-01 EMBLEM (5-A), SONY (BLACK)
52 4-240-858-11 EMBLEM (5-A), SONY (GOLD)
52 4-240-858-21 EMBLEM (5-A), SONY (SILVER)
53 X-4953-000-1 WINDOW ASSY, REMOTE CONTROL
54 4-245-437-01 KNOB (MENU) (BLACK)
54 4-245-437-21 KNOB (MENU) (GOLD)
54 4-245-437-31 KNOB (MENU) (SILVER)
55 A-4733-935-A DISPLAY BOARD, COMPLETE
56 4-951-620-01 SCREW (2.6X8), +BVTP
57 1-773-297-11 WIRE (FLAT TYPE) (29 CORE)
58 1-688-600-11 FUNCTION BOARD
59 1-688-601-11 VOL BOARD
60 4-240-507-01 KNOB (VOL) (BLACK)
60 X-4953-671-1 KNOB (VOL-E) ASSY (GOLD)
60 X-4953-672-1 KNOB (VOL-E) ASSY (SILVER)
61 4-232-569-02 KNOB (FN DE9) (BLACK)
61 4-232-569-12 KNOB (FN DE9) (GOLD)
61 4-232-569-22 KNOB (FN DE9) (SILVER)
62 4-245-444-64 PANEL, FRONT (BLACK)
62 4-245-444-74 PANEL, FRONT (SILVER) (STR-DB2000)
62 4-245-444-84 PANEL, FRONT (GOLD)
62 4-245-444-94 PANEL, FRONT (SILVER) (STR-DA2000ES)
63 1-500-472-11 CORE, FERRITE (STR-DA2000ES)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
60
51
52
53
54
55
56
56
57
63
58
59
61
62
supplied with
RV1061
supplied with
RV1060
#1
not supplied
not supplied
supplied with
RV1051
base panel section
supplied with
RV1052
STR-DA2000ES
