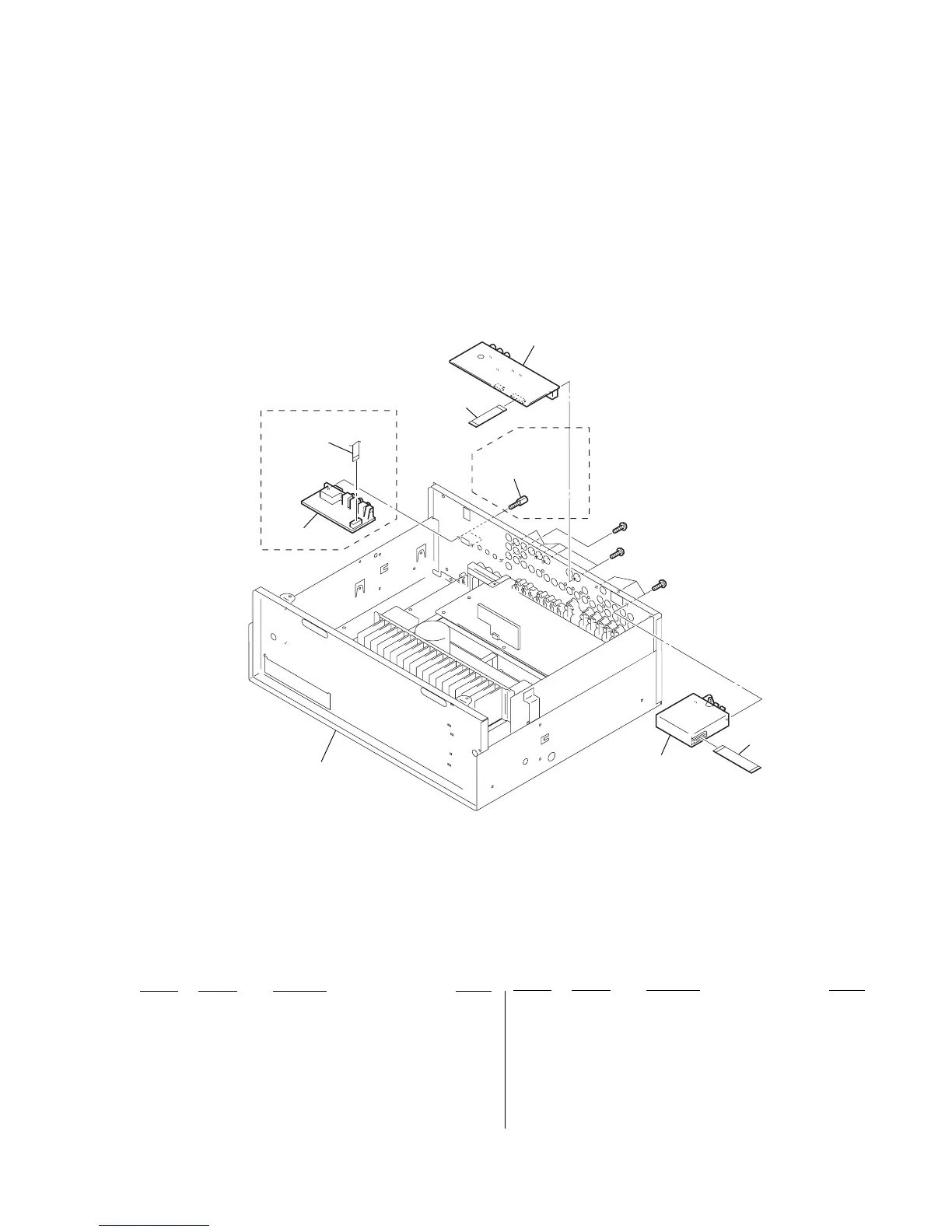

7-5. TUNER SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 A-4733-946-A CIS BOARD, COMPLETE (STR-DA2000ES)
202 1-769-875-11 WIRE (FLAT TYPE) (7 CORE) (STR-DA2000ES)
203 1-769-969-11 WIRE (FLAT TYPE) (13 CORE)
204 A-4733-944-A S-VIDEO BOARD, COMPLETE
(STR-DA2000ES)
204 A-4734-037-A S-VIDEO BOARD, COMPLETE (STR-DB2000)
206 1-769-937-11 WIRE (FLAT TYPE) (11 CORE)
(EXCEPT STR-DB2000: AEP, UK)
206 1-773-001-11 WIRE (FLAT TYPE) (15 CORE)
(STR-DB2000: AEP, UK)
TU2051 1-693-577-31 TUNER (STR-DA2000ES)
TU2051 1-693-578-41 TUNER (STR-DB2000: AEP, UK)
TU2051 1-693-641-11 TUNER (STR-DB2000: SP, MY)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
201
202
203
204
206
TU2051
back panel section
#1
supplied with
CIS board
#1
#1
STR-DA2000ES
STR-DA2000ES
