Sony STR-DB2000 - 7-7. Chassis Section; Chassis Section Exploded View

97
STR-DA2000ES/DB2000
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 X-4955-348-1 FOOT ASSY
* 302 3-225-496-01 CLAMP (FLAT CLAMP 45)
303 1-469-969-11 CLAMP, FERRITE
304 1-773-220-11 WIRE (FLAT TYPE) (25 CORE)
305 3-655-653-21 BAND (TAITON), BINDING
* 306 1-500-169-11 CORE (FPC) (STR-DA2000ES)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-885-09 SCREW +BVTT 4X16 (S)

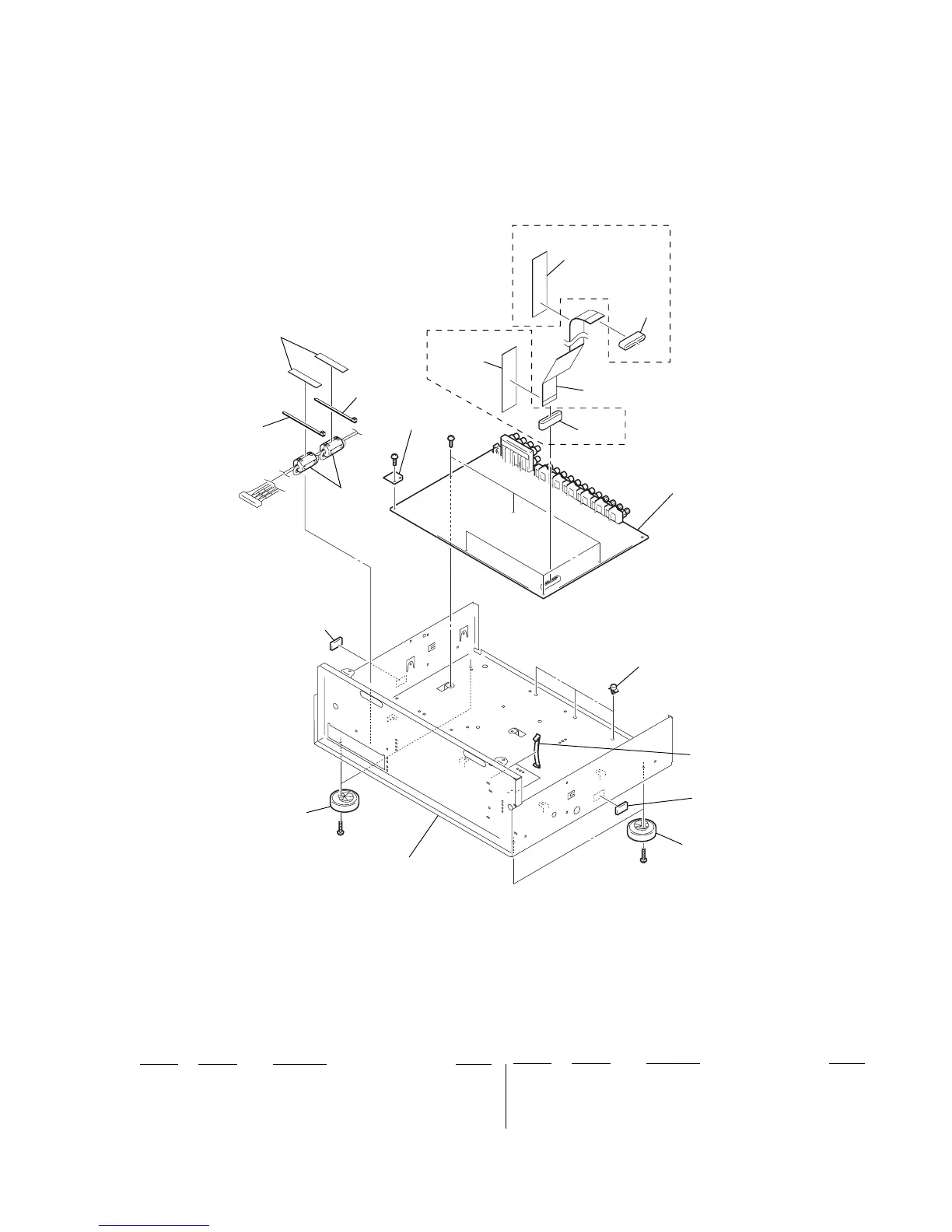

7-7. CHASSIS SECTION
301
304
306
306
303
305
305
302
301
not suppried
D-AMP board
section
not
suppried
not
suppried
not
suppried
not suppried
#3
#3
#1
#1
not supplie
d
not supplied
not supplied
STR-DA2000ES
STR-DA2000ES
