Sony STR-DB2000 Service Manual
4
of 1
of 1 rating
158 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
9
STR-D
A2000ES/DB2000

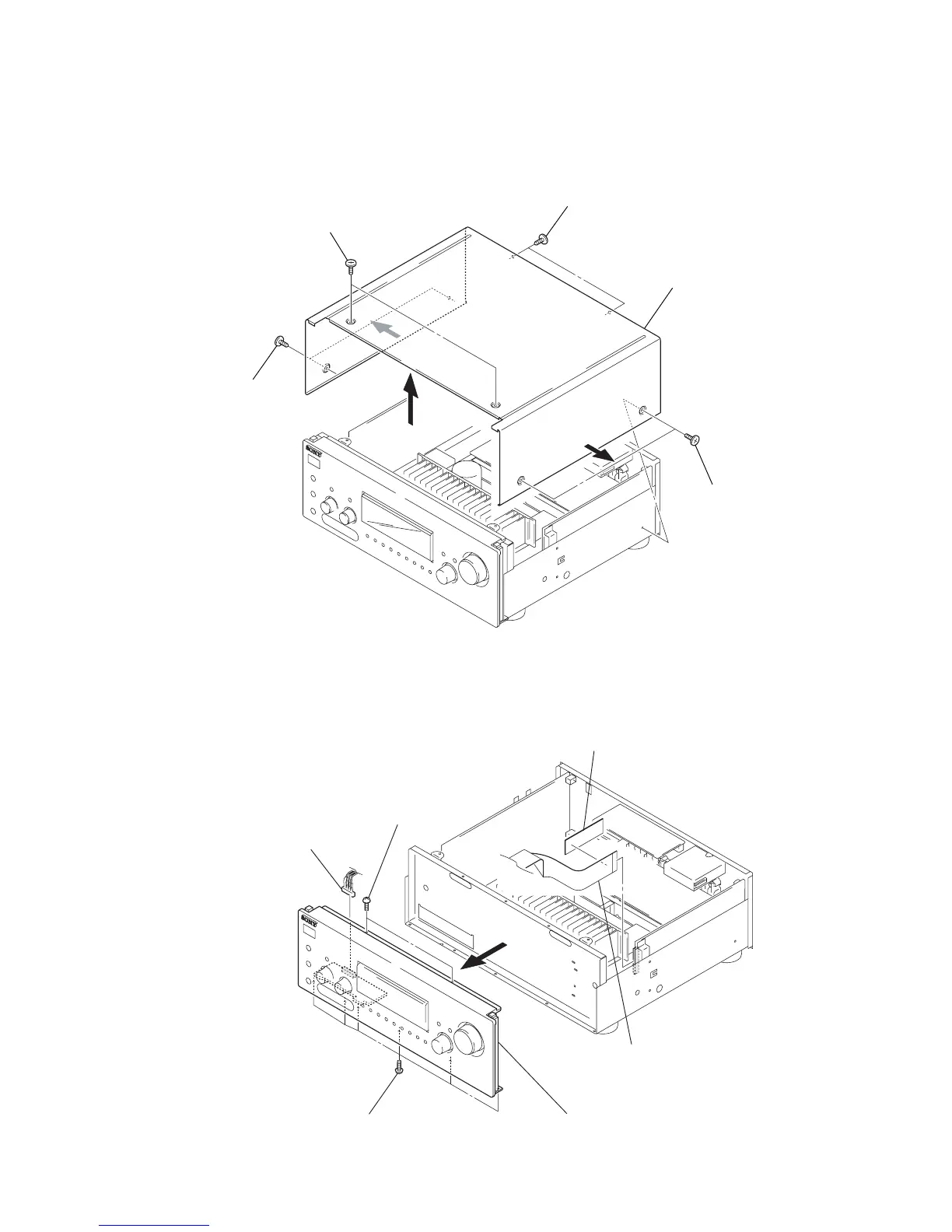

3-3.
FRONT P
ANEL SECTION
2
two flat head screws
1
two flat head screws
3
two flat head screws
5
case
4
two flat head screw
s
4
six screws
(BV/ring)
3
connector
(CN1091)
5
two screws
(BV/ring)
2
wire (flat type) (29 core
)
(CN2008)
2
tape
6
front panel section
Note:
Follow the disassembly procedure in the n
umerical order given.
3-2.
CASE
8
10
Table of Contents
Default Chapter
1
Service Manual
1
Table of Contents
4
1 Servicing Notes
5
2 General
7
Location of Controls
7
3 Disassembly
8
Disassembly Flow
8
Case
9
Front Panel Section
9
Switching Regulator
10
MAIN Block
10
DIGITAL Board
11
AMP Board Section
11
4 Test Mode
12
5 Electrical Adjustments
14
6 Diagrams
16
Block Diagram - AUDIO (ANALOG) (1/2) Section
16
Block Diagram - AUDIO (ANALOG) (2/2) Section
17
Block Diagram - AUDIO (DIGITAL) (1/3) Section
18
Block Diagram - AUDIO (DIGITAL) (2/3) Section
19
Block Diagram - AUDIO (DIGITAL) (3/3) Section
20
Block Diagram - PRE out Section
21
Block Diagram - POWER AMP Section
22
Block Diagram - VIDEO Section
23
Block Diagram - PANEL Section
24
Block Diagram - POWER Section
25
Note for Printed Wiring Boards and Schematic Diagrams
26
Schematic Diagram - 2CH. AU Board (1/3)
27
Schematic Diagram - 2CH. AU Board (2/3)
28
Schematic Diagram - 2CH. AU Board (3/3)
29
Printed Wiring Board - 2CH. AU Board (Component Side)
30
Printed Wiring Board - 2CH. AU Board (Conductor Side)
31
Printed Wiring Board - MULTI-VIDEO Board (Component Side)
32
Printed Wiring Board - MULTI-VIDEO Board (Conductor Side)
33
Schematic Diagram - MULTI-VIDEO Board (1/4)
34
Schematic Diagram - MULTI-VIDEO Board (2/4)
35
Schematic Diagram - MULTI-VIDEO Board (3/4)
36
Schematic Diagram - MULTI-VIDEO Board (4/4)
37
Printed Wiring Board - up CONVERT Board (STR-DA2000ES Only)
38
Schematic Diagram - up CONVERT Board (STR-DA2000ES Only)
39
Printed Wiring Board - S-VIDEO Board
40
Schematic Diagram - S-VIDEO Board
41
Printed Wiring Board - DIGITAL Board (Component Side)
42
Printed Wiring Board - DIGITAL Board (Conductor Side)
43
Schematic Diagram - DIGITAL Board (1/8)
44
Schematic Diagram - DIGITAL Board (2/8)
45
Schematic Diagram - DIGITAL Board (3/8)
46
Schematic Diagram - DIGITAL Board (4/8)
47
Schematic Diagram - DIGITAL Board (5/8)
48
Schematic Diagram - DIGITAL Board (6/8)
49
Schematic Diagram - DIGITAL Board (7/8)
50
Schematic Diagram - DIGITAL Board (8/8)
51
Printed Wiring Board - D. AMP Board (Component Side)
52
Printed Wiring Board - D. AMP Board (Conductor Side)
53
Schematic Diagram - D. AMP Section (1/6)
54
Schematic Diagram - D. AMP Section (2/6)
55
Schematic Diagram - D. AMP Section (3/6)
56
Schematic Diagram - D. AMP Section (4/6)
57
Schematic Diagram - D. AMP Section (5/6)
58
Schematic Diagram - D. AMP Section (6/6)
59
Printed Wiring Board - CIS Board (STR-DA2000ES Only)
60
Schematic Diagram - CIS Board (STR-DA2000ES Only)
61
Printed Wiring Board - PANEL Section
62
Schematic Diagram - PANEL Section
63
Printed Wiring Board - HP-V3 Board
64
Schematic Diagram - HP-V3 Board
65
Printed Wiring Board - REG Board
66
Schematic Diagram - REG Board
67
IC Block Diagrams
69
IC Pin Function Description
79
7 Exploded Views
91
Case Section
91
Front Panel Section
92
Base Panel Section
93
Power Block Section
94
Tuner Section
95
Back Panel Section
96
Chassis Section
97
Boards Section
98
HEAT SINK Section
99
AMP Board Section
100
8 Electrical Parts List
101
Digital Display
127
Revision History
158
