Sony STR-DB2000 Service Manual

96
STR-DA2000ES/DB2000

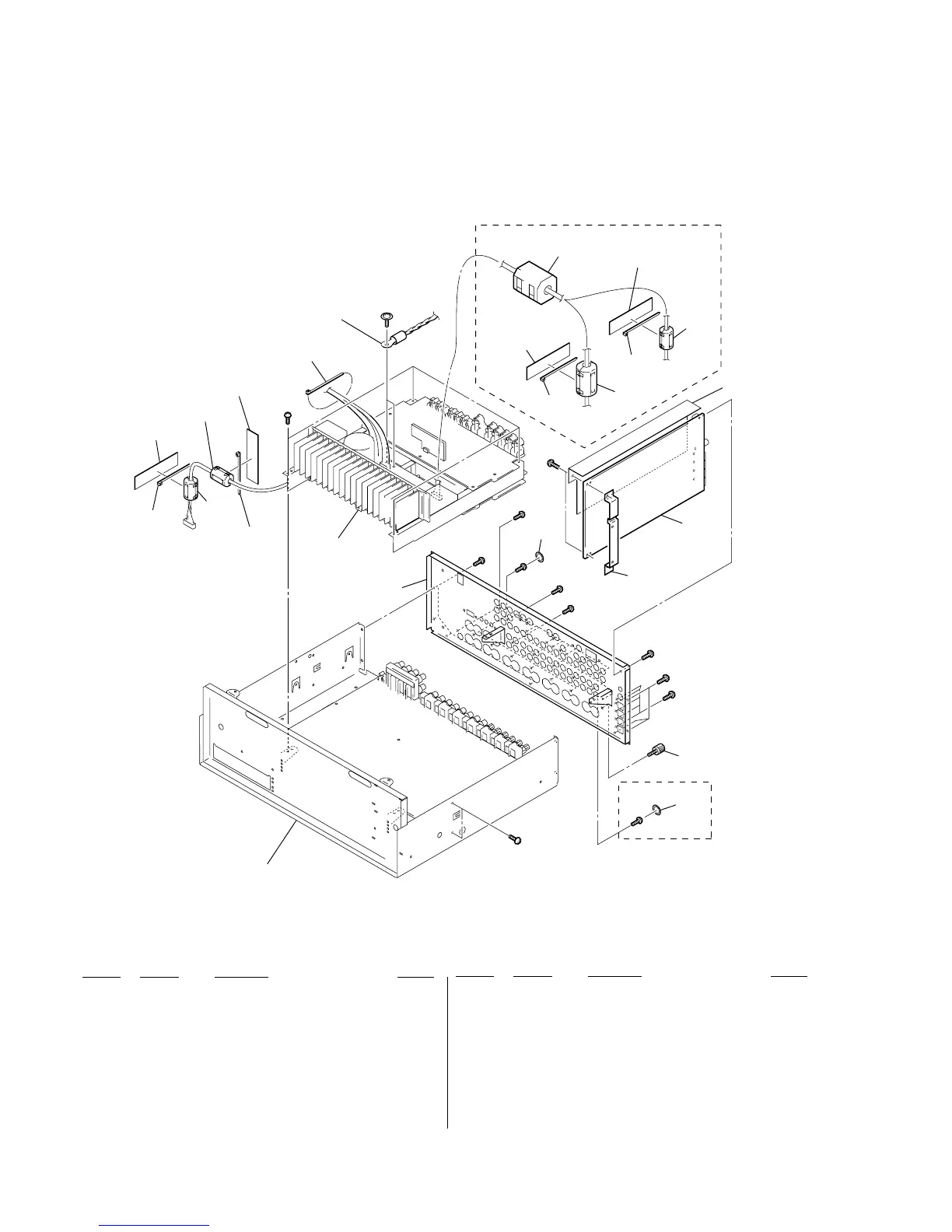

7-6. BACK PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 3-655-653-21 BAND (TAITON), BINDING
252 A-4733-922-A DIGTAL BOARD, COMPLETE (STR-DA2000ES)
252 A-4734-045-A DIGTAL BOARD, COMPLETE
(STR-DB2000: SP, MY)
252 A-4734-054-A DIGTAL BOARD, COMPLETE
(STR-DB2000: AEP, UK)
253 4-947-010-01 SCREW, FEEDER FIXED
254 1-500-051-11 CORE, FERRITE
255 1-469-241-11 CORE, FERRITE
256 1-469-969-11 CLAMP, FERRITE (STR-DA2000ES)
257 1-500-603-11 CLAMP, FERRITE (STR-DA2000ES)
258 3-655-653-11 BAND (TAITON), BINDING
259 4-251-318-11 COVER, PROTECTION
260 4-860-518-00 CUSHION
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#5 7-682-948-01 SCREW +PSW 3X8 CZN
STR-DA2000ES
STR-DA2000ES
252
259
253
259
251
255
258
254
251
chassis section
boards section
not supplied
not supplied
not supplied
#4
#1
#1
#1
#1
#1
#1
#4
#1
#1
#1
#1
not
supplied
not
supplied
255
256
258
251
257
260
260
not supplied
#5
