Sony STR-DB2000 - 7-8. Boards Section; Boards Section Exploded View

98
STR-DA2000ES/DB2000
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
351 A-4728-955-A UP CONVERT BOARD, COMPLETE
(STR-DA2000ES)
352 A-4733-932-A MULTI-VIDEO BOARD, COMPLETE
(STR-DA2000ES)
352 A-4734-048-A MULTI-VIDEO BOARD, COMPLETE
(STR-DB2000: SP, MY)
352 A-4734-061-A MULTI-VIDEO BOARD, COMPLETE
(STR-DB2000: AEP, UK)
353 A-4733-930-A 2CH. AU BOARD, COMPLETE (STR-DA2000ES)
353 A-4734-029-A 2CH. AU BOARD, COMPLETE
(STR-DB2000: SP, MY)
353 A-4734-059-A 2CH. AU BOARD, COMPLETE
(STR-DB2000: AEP, UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

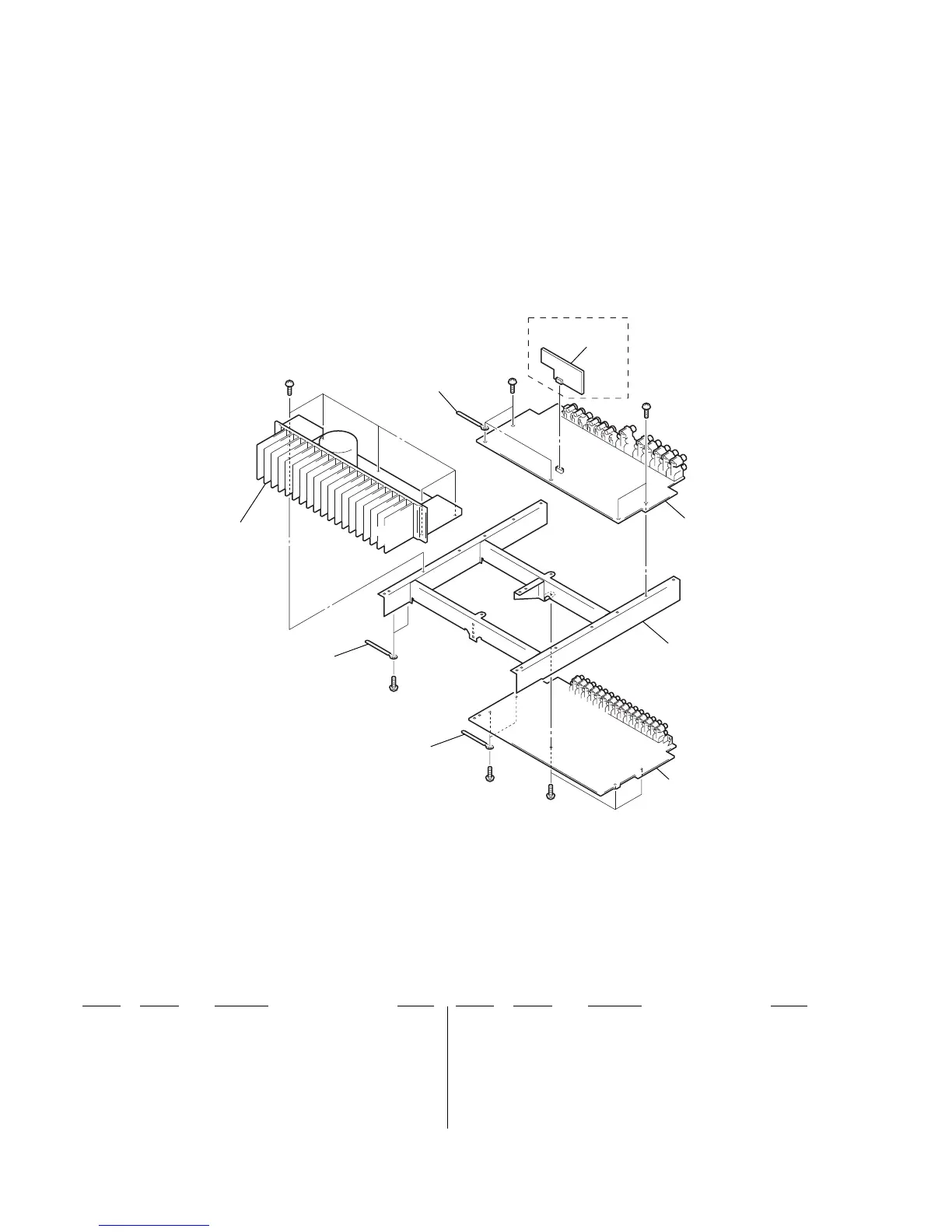

7-8. BOARDS SECTION
351
352
353
heat sink section
not supplied
not supplied
not supplied
#1
#1
#1
#1
#1
not supplied
#1
STR-DA2000ES
