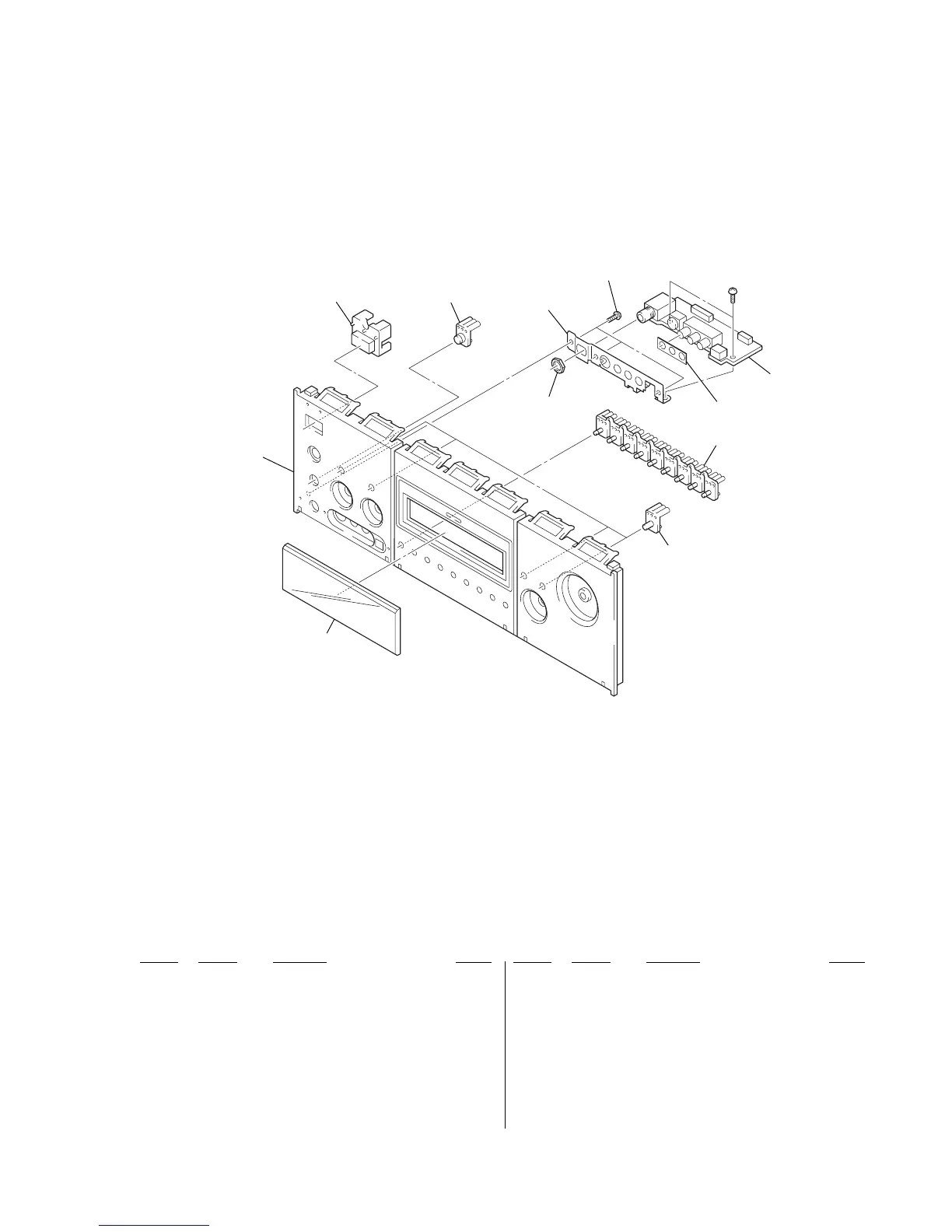

7-3. BASE PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-245-438-01 PLATE, INDICATION (BLACK)
101 4-245-438-11 PLATE, INDICATION (SILVER, GOLD)
102 4-245-430-01 BASE, PANEL (BLACK)
102 4-245-430-11 BASE, PANEL (SILVER)
102 4-245-430-21 BASE, PANEL (GOLD)
103 4-998-592-01 BUTTON (POWER) (BLACK)
103 4-998-592-12 BUTTON (POWER) (GOLD)
103 4-998-592-31 BUTTON (POWER) (SILVER)
104 4-245-434-01 BUTTON (SP) (BLACK)
104 4-245-434-21 BUTTON (SP) (GOLD)
104 4-245-434-31 BUTTON (SP) (SILVER)
105 A-4733-939-A HP-V3 BOARD, COMPLETE (STR-DA2000ES)
105 A-4734-033-A HP-V3 BOARD, COMPLETE (STR-DB2000)
106 4-245-435-02 BUTTON (MODE)
107 4-245-436-01 BUTTON (MENU) (BLACK)
107 4-245-436-21 BUTTON (MENU) (GOLD)
107 4-245-436-31 BUTTON (MENU) (SILVER)
108 4-951-620-01 SCREW (2.6X8), +BVTP
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
101
102
103
104
108
105
106
107
supplied with
J1086
not supplied
not supplied
#1
