STR-DH730/DH830
5
SECTION 2
DISASSEMBLY
Note:

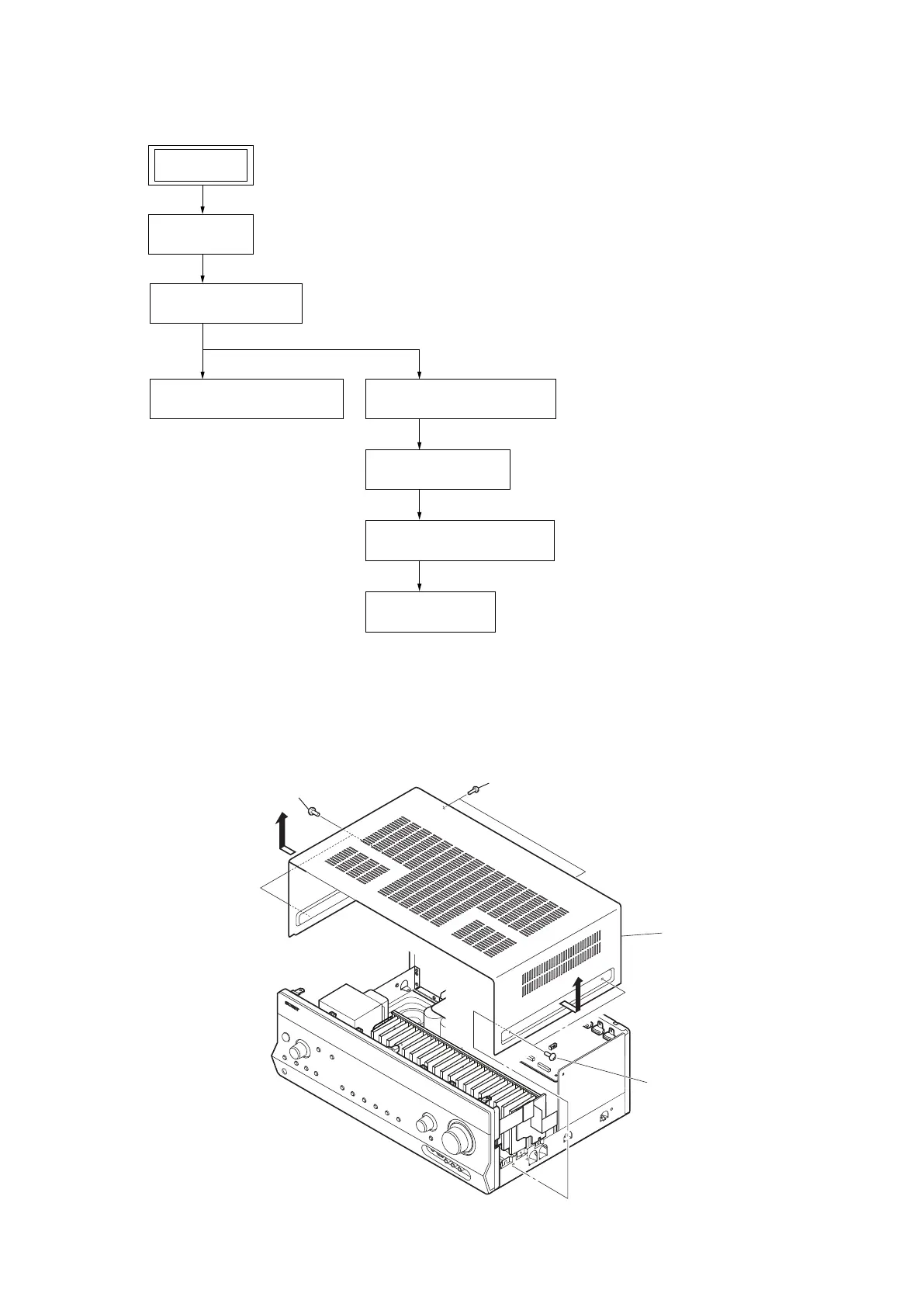

This set can be disassemble according to the following sequence.
Note:
Follow the disassembly procedure in the numerical order given.
2-1. CASE
2-2. D-VIDEO BOARD
(Page 6)
2-3. FRONT PANEL SECTION
(Page 6)
2-6. MAIN BOARD SECTION
(Page 8)
2-7. MAIN BOARD
(Page 8)
2-4. BACK PANEL SECTION
(Page 7)
2-5. DIGITAL BOARD
(Page 7)
2-1. CASE
(Page 5)
SET
1 two screws
(+BVST 4x8)
3 two screws
(+BVTP 3x8)
5 case
4
4
2 two
screws
(+BVST 4x8)
