Sony STR-DH730 - Back Panel Section Assembly Parts

70
STR-DH730/DH830

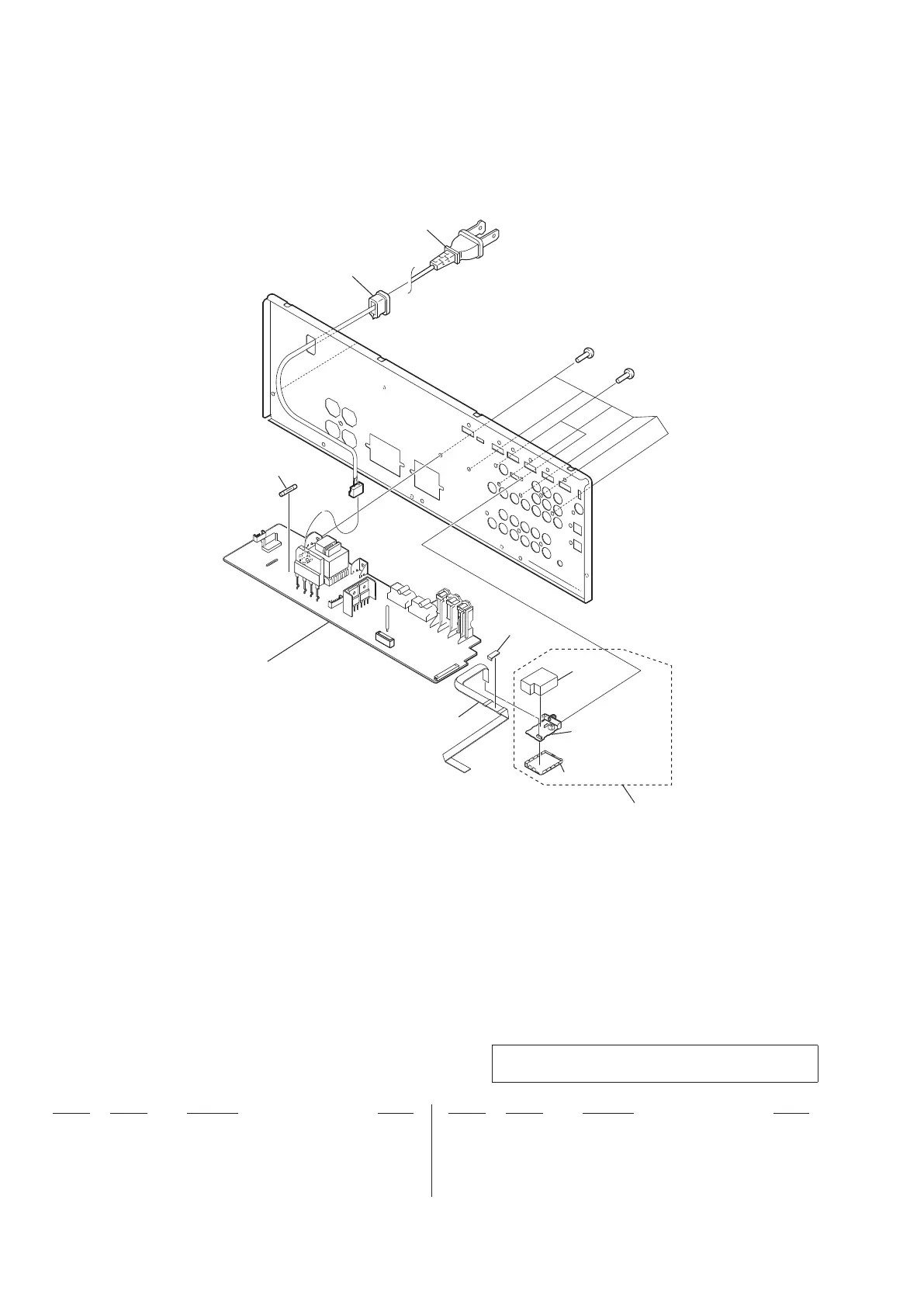

6-4. BACK PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-966-267-12 BUSHING (FBS001), CORD
0
152 1-777-071-83 CORD, POWER (ECE)
0
152 1-833-566-21 POWER-SUPPLY CORD (AUS)
0
152 1-837-308-11 CORD, POWER-SUPPLY (CND, US)
153 A-1846-564-A TUNER1AMF ASSY (CND, US)
153 A-1846-561-A TUNER1AMPR ASSY (AUS, ECE)
154 1-828-572-11 WIRE (FLAT TYPE) (9 CORE)
0
F901 1-532-465-33 FUSE, T3.15AL 250V (AUS, ECE)
0
F901 1-533-311-12 FUSE, GLASS (DIA.5) 8A 125V (CND, US)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
not supplied
not supplied
not supplied
not supplied
(TUNER1 board)
153
154
#1
#1
152
151
F901
not supplied
(STANDBY-AVIDEO PC board)
