Sony STR-DH730 - MAIN Board Section; MAIN Board

STR-DH730/DH830
8

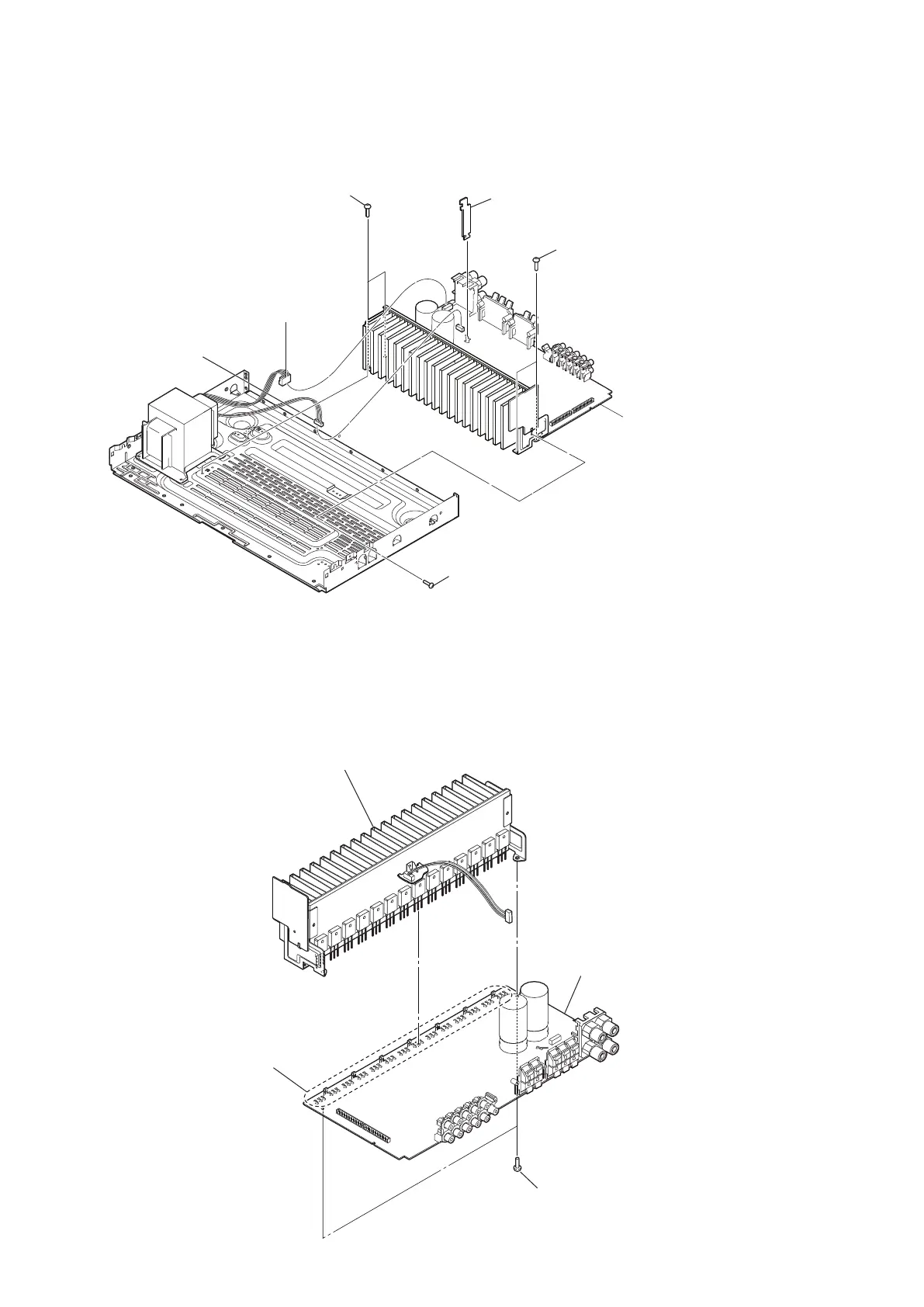

2-6. MAIN BOARD SECTION
2-7. MAIN BOARD
Note: This illustration sees the MAIN board from back side.
5 two screws
(+
BVTP 3x8)
1 CNP920 (5P)
2 CNP930 (3P)
7 MAIN board section
6 two screws
(+
BVTP 3x8)
4 one screw
(+
BVTP 3x8)
3 LOCK board
3 heatsink block
2 two screws
(+BVTP 3
x 8)
4 MAIN board
1 Remove the
forty-two solders.
