Sony STR-DH730 - Exploded Views; Case Section Assembly Parts

67
STR-DH730/DH830
SECTION 6
EXPLODED VIEWS
1 2-580-630-01 SCREW, +BVST 4X8
2 4-160-845-31 CASE
9 3 A-1842-612-A D-VIDEO BOARD, COMPLETE
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “
*
” are not stocked since
they are seldom required for routine ser-
vice.
Some delay should be anticipated when
ordering these items.
• Abbreviation
AUS : Australian model
CND : Canadian model
ECE : Continental European, East
European and Russian models
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
R R
Parts Color Cabinet’s Color
• Accessories are given in the last of the
electrical parts list.

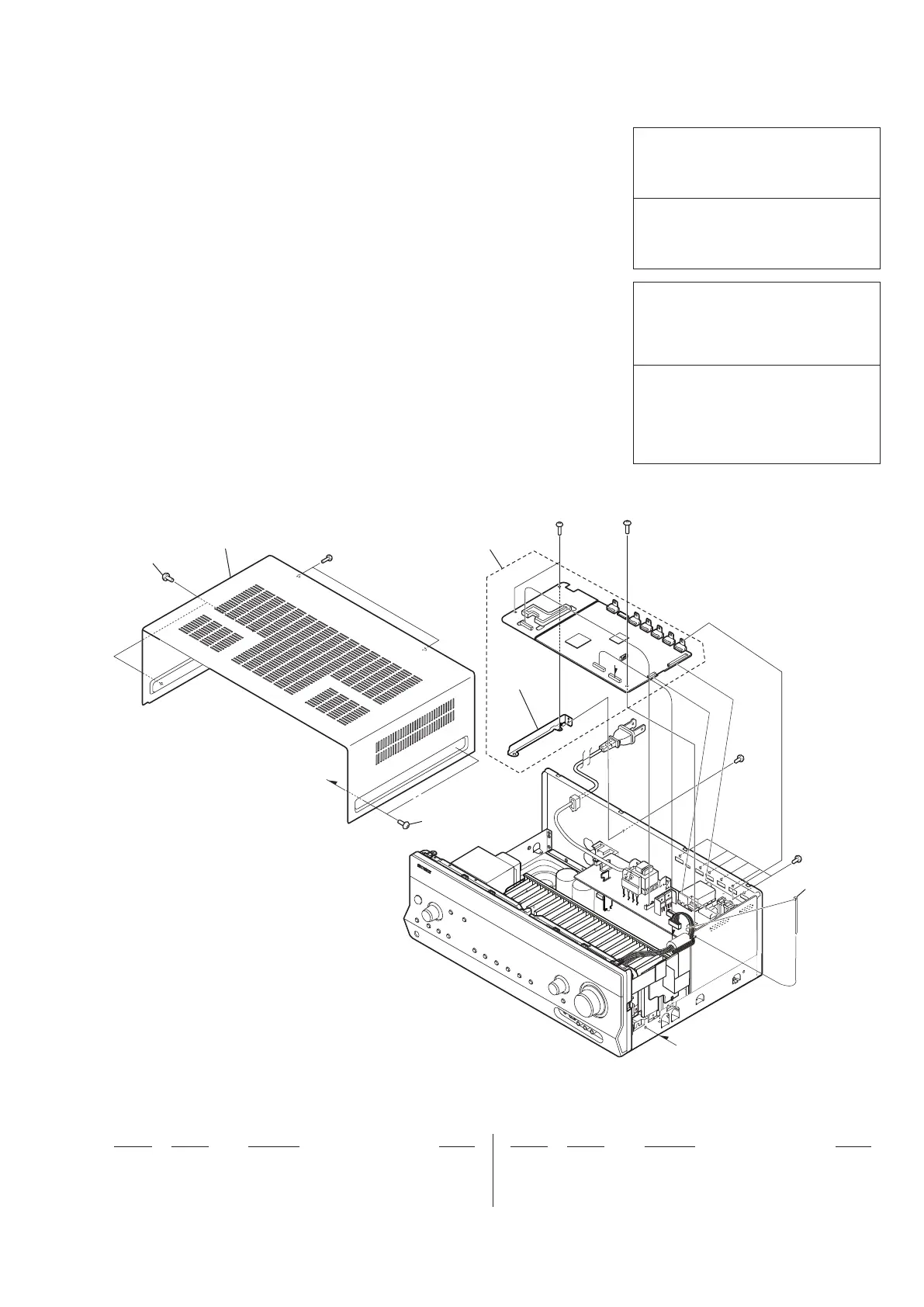

6-1. CASE SECTION
The components identified by mark
0
or dotted line with mark
0
are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifi é.
The components identifi ed by mark
9
con-
tain confi dential information.
Strictly follow the instructions whenever
the components are repaired and/or re-
placed.
Les composants identifi és par la marque
9
contiennent des informations confi denti-
elles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est rem-
placé et / ou réparé.
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-546-09 SCREW +B 3X5
B
B
not supplied
not supplied
#1
#1
#1
#1
#2
1
2
1
A
A
3
