STR-DH730/DH830
6

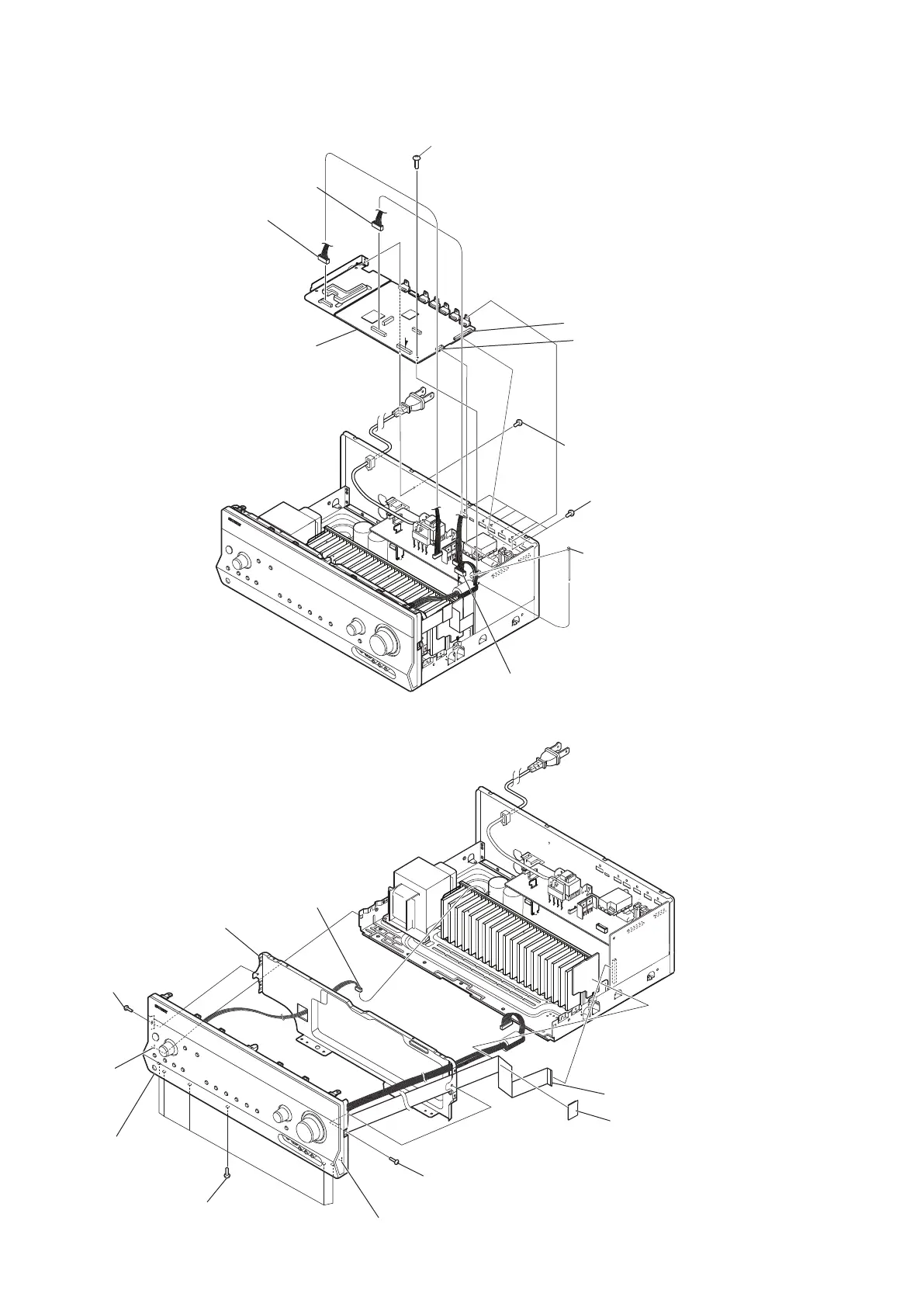

2-2. D-VIDEO BOARD
2-3. FRONT PANEL SECTION
B
B
5 six screws
(+B 3x6)
1 cut the cable tie
2 CN3007 (13P)
4 CN1500 (7P)
9 D-VIDEO board
6 one screw
(+BVTP 3x8)
7 one screw
(+BVST 3x8)
8 CN3003 (20P)
8 CN3004 (8P)
3 CN3200 (8P)
2 cushion, saranet
3 CN391 (4P)
4 one
screw
(+BVTP 3x8)
4 one screw
(+BVTP 3x8)
5 six screws
(+BVTP 3x8)
6 claw
6 claw
7 front panel section
8 shield, sub chassis
1 wire (flat type) (25 core) (CN2116)
