MULTI CHANNEL AV RECEIVER

STR-DN1050/STR-DN850

Connecting devices with jacks other than HDMI jacks (for STR-DN850)

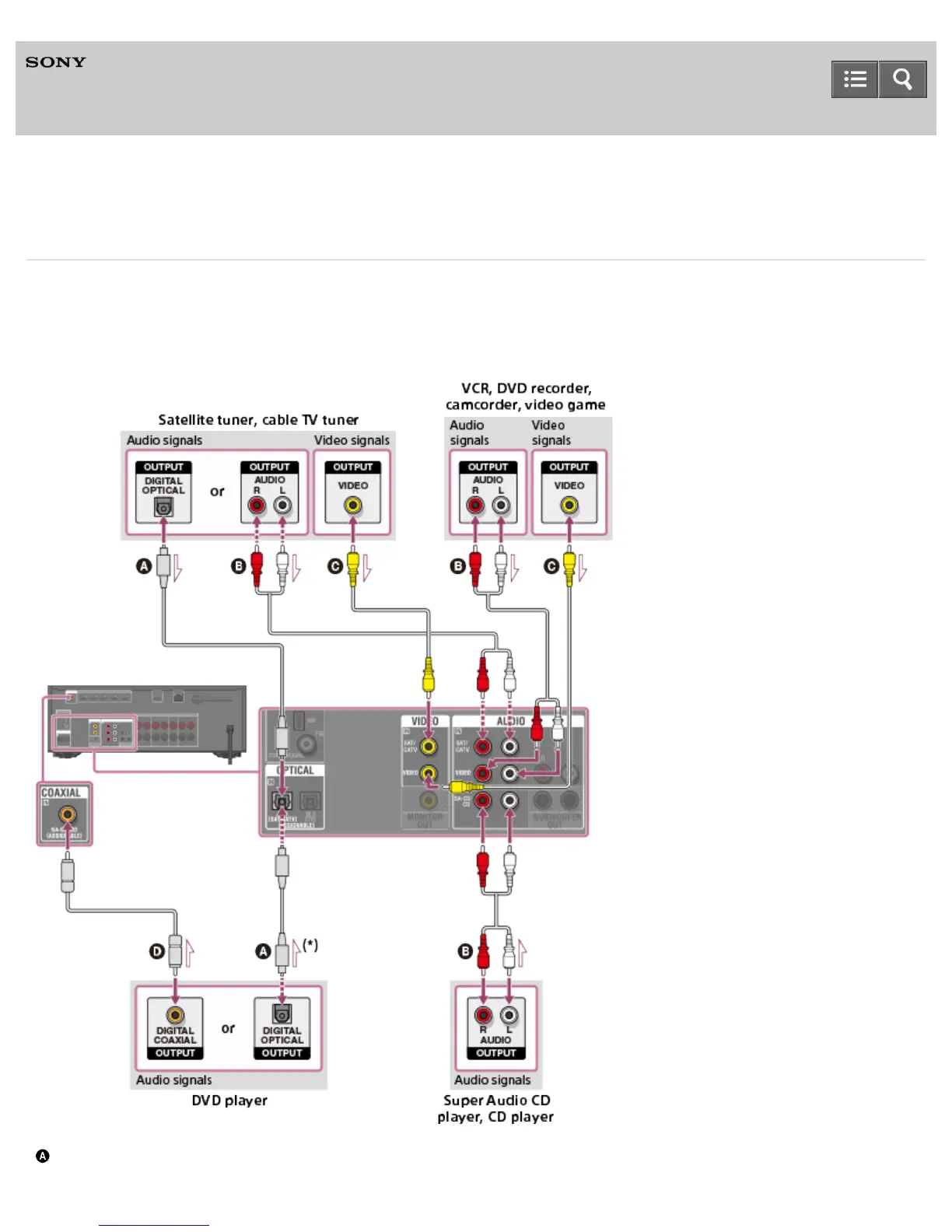

Connect devices to the receiver as illustrated below.

The solid lines show recommended connections and the dashed lines show alternative connections.

Be sure to disconnect the AC power cord (mains lead) before connecting cables.

Optical digital cable (not supplied)
