Sony STR-DN850 - Rear Panel (STR-DN850)

To Next Page

To Previous Page

MULTI CHANNEL AV RECEIVER

STR-DN1050/STR-DN850

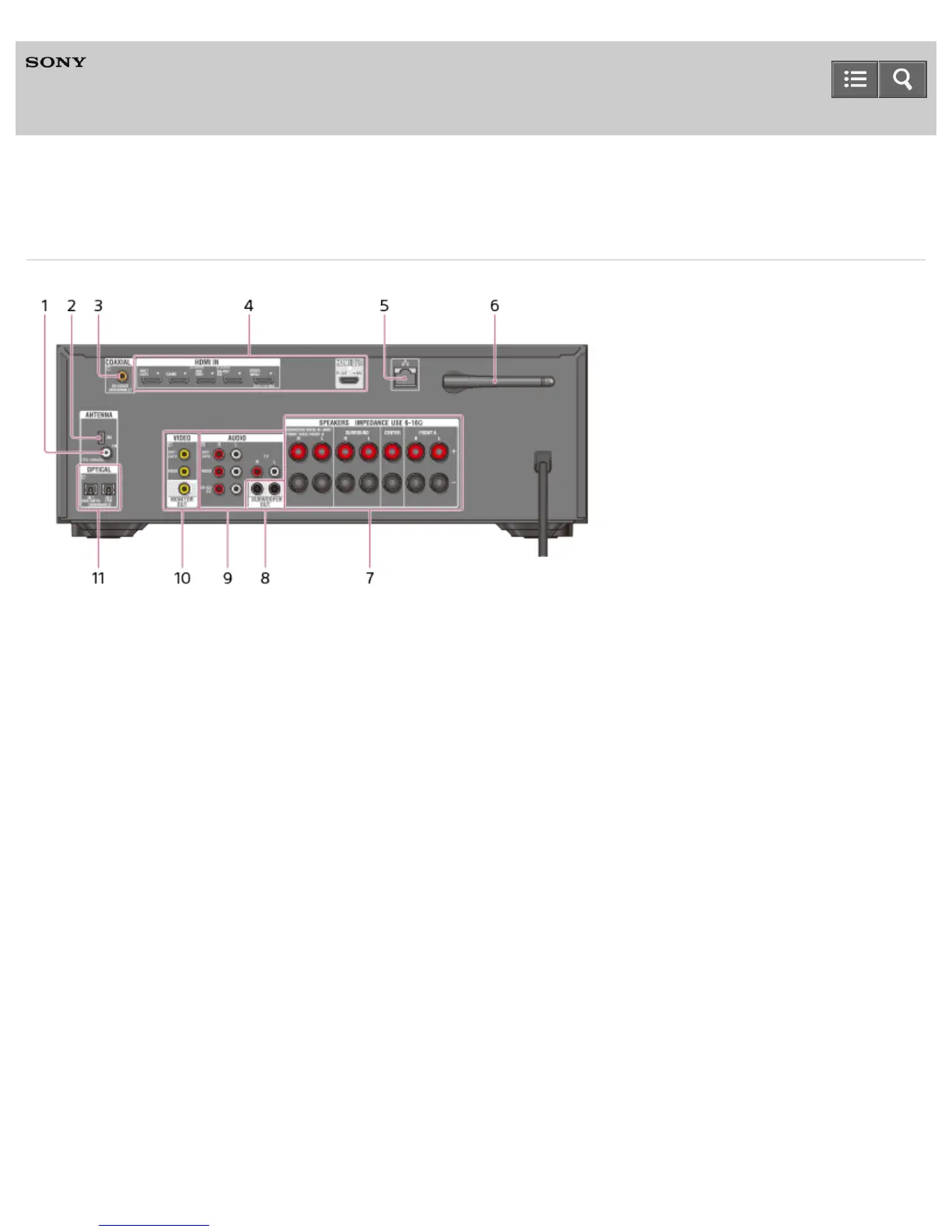

Rear panel (STR-DN850)

1. FM ANTENNA terminal

2. AM ANTENNA terminal

3. COAXIAL IN jack

4. HDMI IN/OUT (*1) jacks

5. LAN port (*2)

6. Wireless LAN antenna

7. SPEAKERS terminals

8. SUBWOOFER OUT jacks

9. AUDIO IN jacks

10. VIDEO IN/OUT (*3) jacks

11. OPTICAL IN jacks

You must connect your TV to HDMI OUT to watch images from the selected input.

You can also use this port for maintenance and service.

You must connect your TV to MONITOR OUT to watch images from the selected input.

Notes on use
