MULTI CHANNEL AV RECEIVER

STR-DN1050/STR-DN850

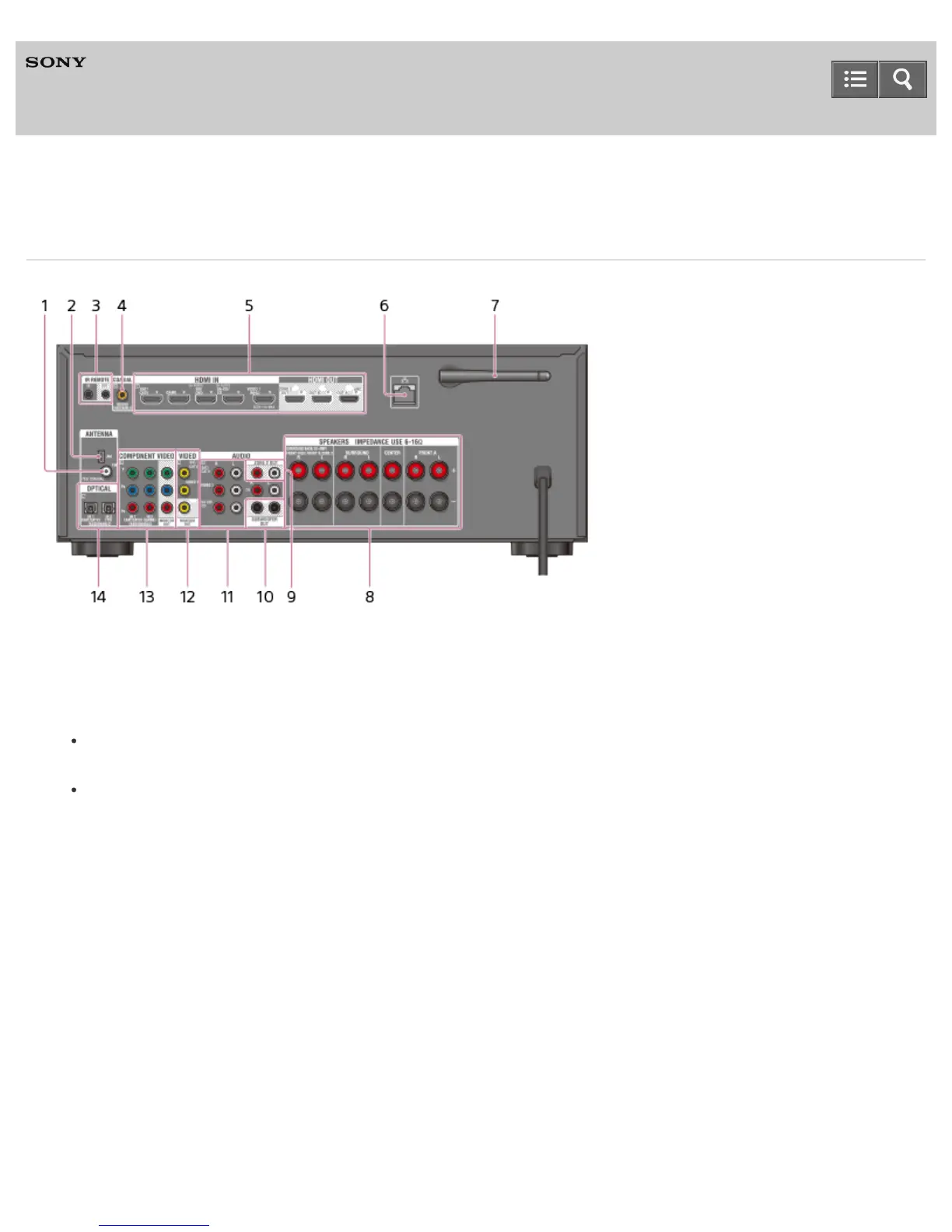

Rear panel (STR-DN1050)

1. FM ANTENNA terminal

2. AM ANTENNA terminal

3. IR REMOTE IN/OUT jacks

You can control the receiver from a distance by connecting an IR repeater (not supplied) to the IR REMOTE IN

jack.

You can start or stop playback of devices such as a CD player connected to the receiver by connecting an IR

Blaster (not supplied) to the IR REMOTE OUT jack.

4. COAXIAL IN jack

5. HDMI IN/OUT (*1) jacks

6. LAN port (*2)

7. Wireless LAN antenna

8. SPEAKERS terminals

9. ZONE 2 OUT jacks

10. SUBWOOFER OUT jacks

11. AUDIO IN jacks

12. VIDEO IN/OUT (*1) jacks

13. COMPONENT VIDEO IN/OUT (*1) jacks

14. OPTICAL IN jacks

You must connect your TV to HDMI OUT or MONITOR OUT to watch images from the selected input.

You can also use this port for maintenance and service.
