Sony STR-DN850 - Page 97

To Next Page

To Previous Page

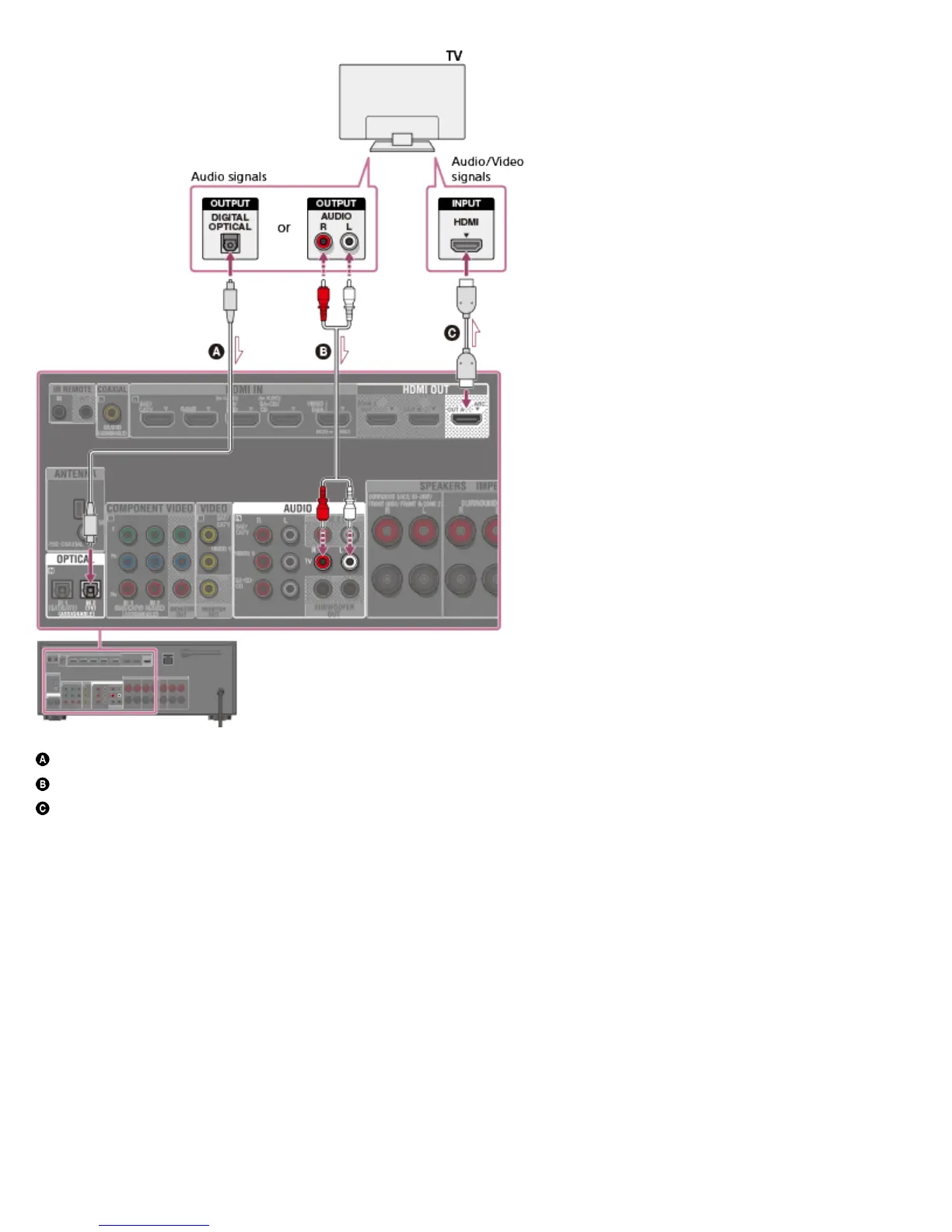

Optical digital cable (not supplied)

Audio cable (not supplied)

HDMI cable (not supplied)

Sony recommends that you use an HDMI-authorized cable or HDMI cable made by Sony.

Connecting a TV without HDMI jacks

The solid lines show recommended connections and the dashed lines show alternative connections.
