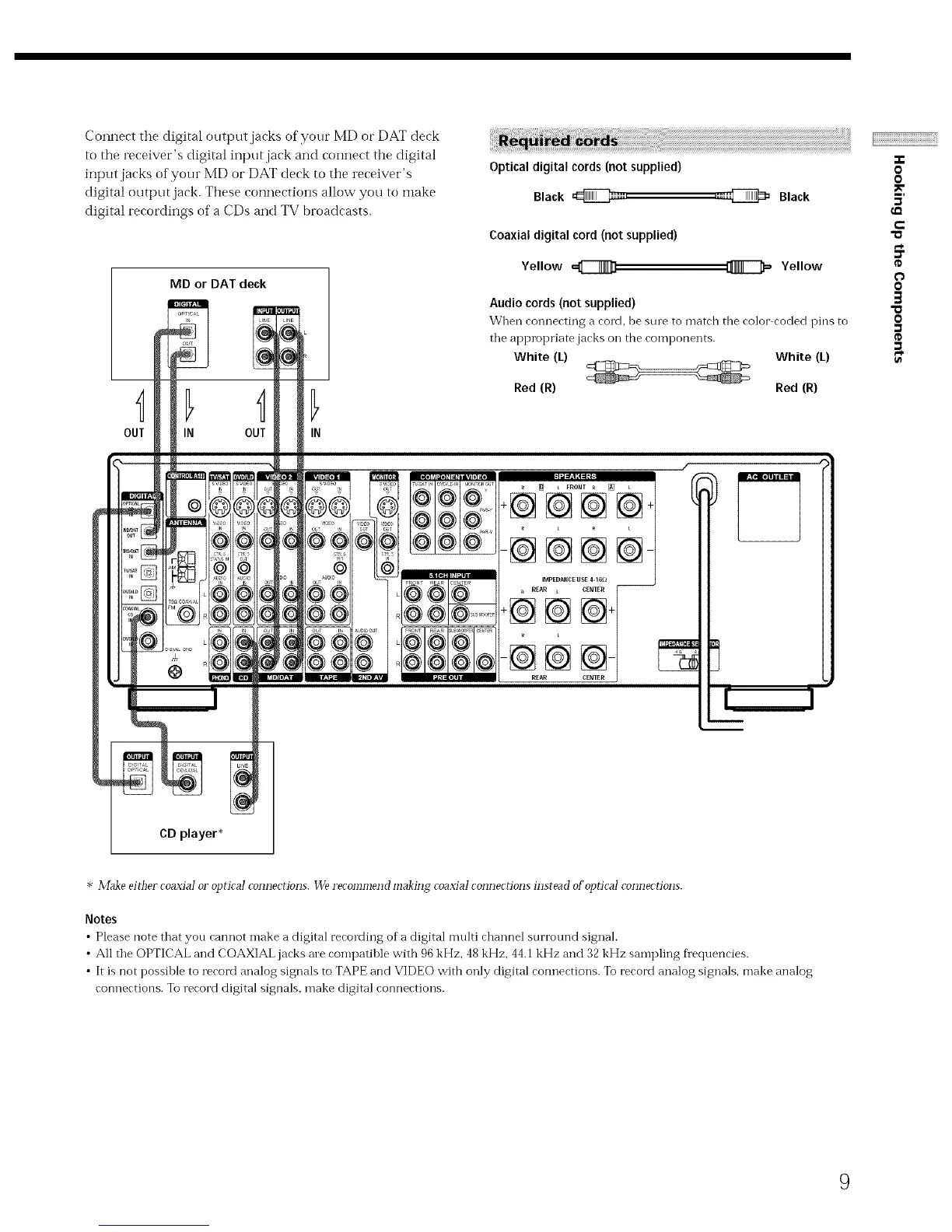

Connect the digital outt)ut jacks of your MD or DAT deck
to the receiver's digital input jack and connect the digital
input jacks of your MD or DAT deck to the receiver's
digital output jack. These connections allow you to make
digital recordings of a CDs and TV broadcasts.
Optical digital cords (not supplied)
Black _=,
Coaxial digital cord (not supplied)
,a_ Black
MD or DAT deck
IN
Yellow '=C_[]
Audio cords(notsupplied)
When connecting a cord, be sine to match the color coded pins to
the appropriate jacks on the components.
White (k) White (/)
Red (R) Red (R)
_ L FRONT R [] L
+@@@@
-@@@@
IMPEDANCE USE 4-16_ --
REAR L CENTER
-@@
REAR
0
0
0
0
"o
O
CD player*
* Make either coaxia! or optica! com]ecdons. We recommend making coaxial connections instead ofol)tical connections.
Notes
• Please note that you cannot make a digital recording of a digital multi channel surround signal.
• All the OPTICAL and COAXIAL jacks are comi)atible with 96 kHz, 48 kHz, 44.1 kHz and 32 kHz sampling frequencies.
• It is not possible to record analog signals to TAPE and VIDEO with only digital connections. To record analog signals, make analog
connections. To record digital signals, make digital connections.
9
