KV-27FA310/27FS120/29FA310/29FS120
KV-27FA310/27FS120/29FA310/29FS120
A Board
1
Press on catch tab to release A Board.
2
Disconnect cables as needed to allow A Board to be removed.
GD Board
HU Board
CW Board
V Board

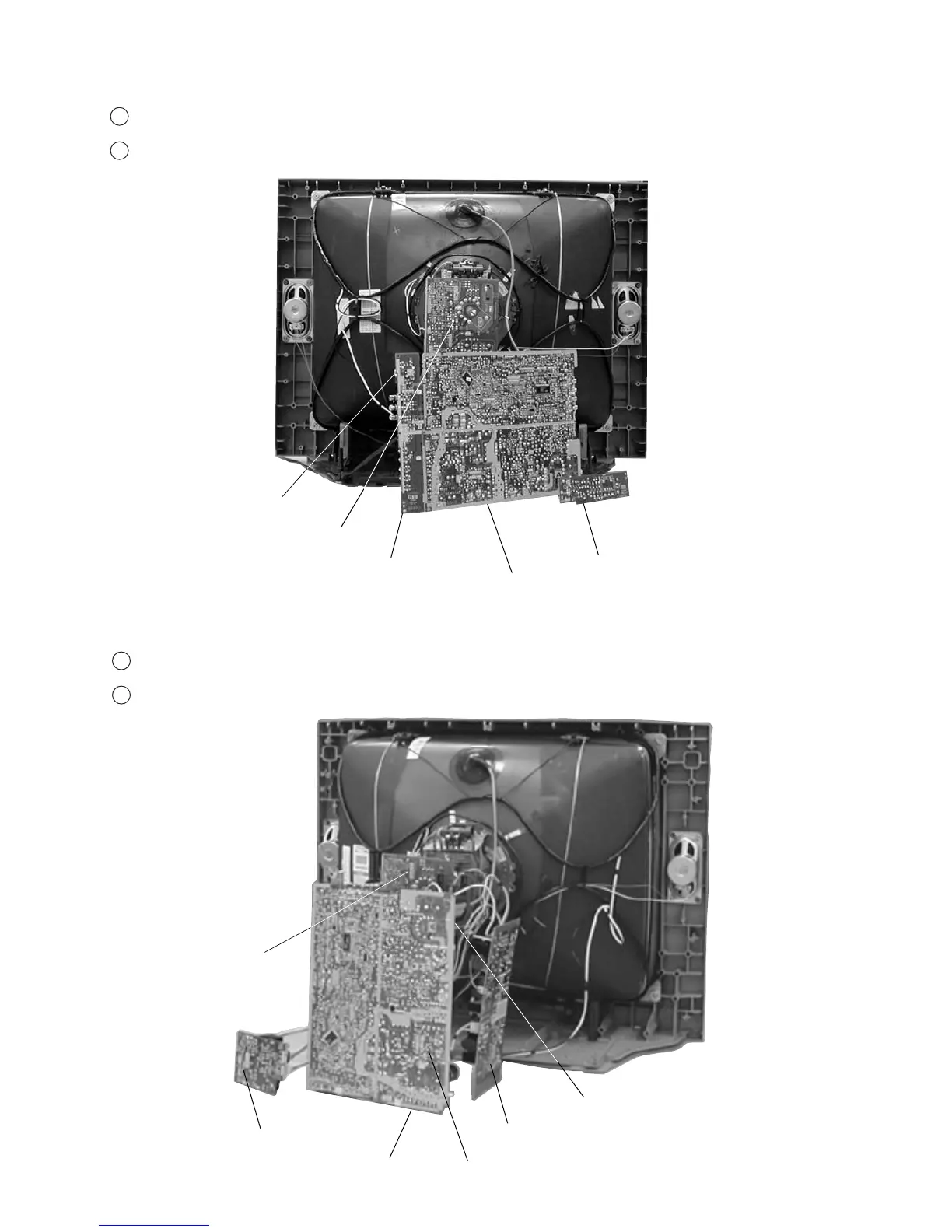

1-5. SERVICE POSITION (ALL EXCEPT KV-27FA310/29FA310)
K Board
1-6. SERVICE POSITION (KV-27FA310/29FA310 ONLY)
A Board
CW Board
1
Press on catch tab to release A Board.
2
Disconnect cables as needed to allow A Board to be removed.
D Board
HS Board
V Board
To Next Page
