KV-27FA310/27FS120/29FA310/29FS120
KV-27FA310/27FS120/29FA310/29FS120
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
45
53
54
47
48
55
50
51
52
49
46
42
44
43
41
40

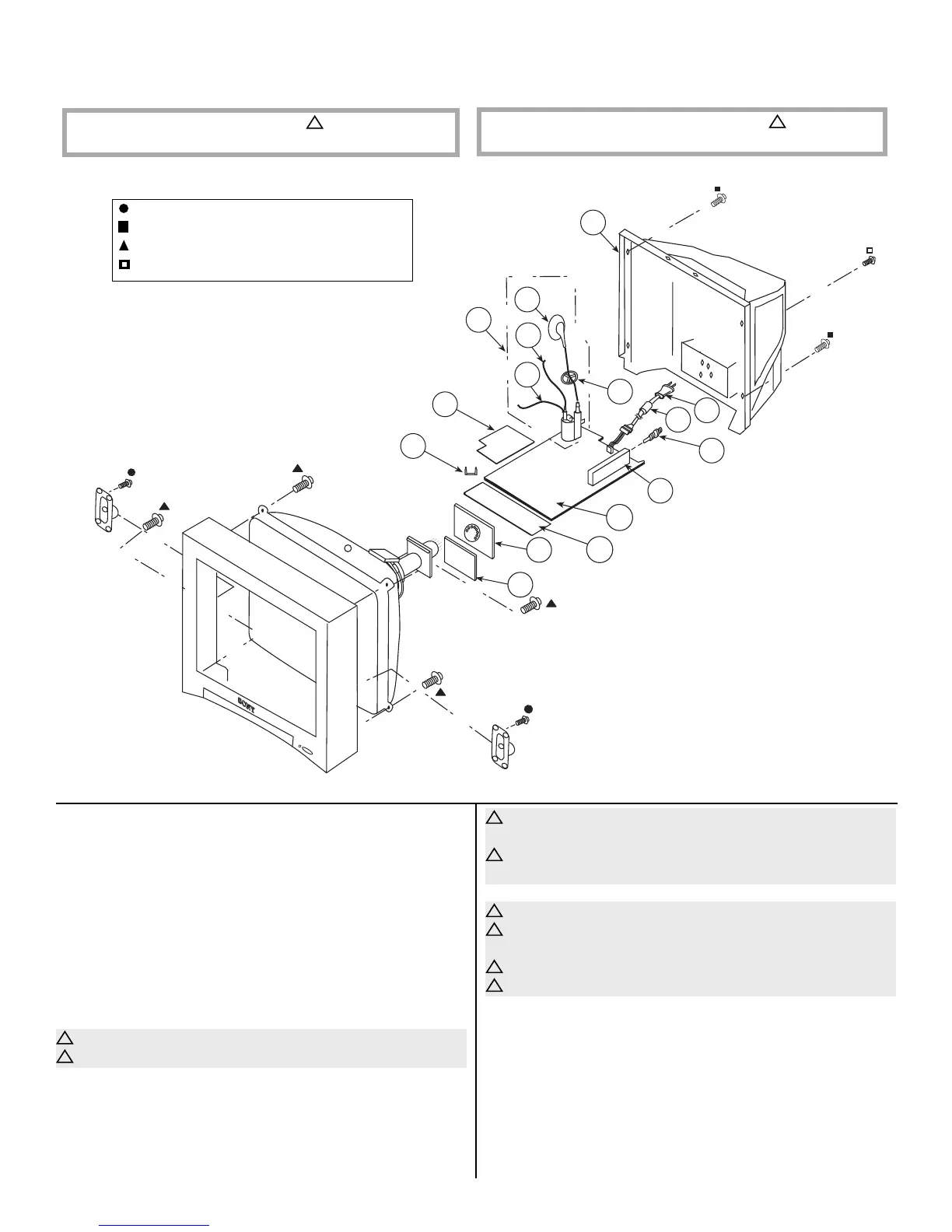

6-2. CHASSIS (KV-27FS120/29FS120 ONLY)
* 40 A-1410-924-A V BOARD, MOUNTED
* 41 A-1410-925-A CW BOARD, MOUNTED
* 42 A-1415-674-A HS BOARD, MOUNTED
* 43 A-1052-931-A A BOARD, COMPLETE
(KV-29FS120 L. SOUTH ONLY)
The high-voltage leads associated with the FBT on the A board
are not included and must be ordered separately. (See 50-52)
* 43 A-1302-967-A A BOARD, COMPLETE
(ALL EXCEPT KV-29FS120 L. SOUTH)
The high-voltage leads associated with the FBT on the A board
are not included and must be ordered separately. (See 50-52)
!
44 8-598-593-50 TUNER, FSS BTF-WA421
!
45 1-766-374-11 PLUG, F-PIN
46 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
(KV-29FS120 L. SOUTH ONLY)
!
47 1-824-069-11 CORD, AC POWER (WITH CONNECTOR)
(ALL EXCEPT KV-29FS120 L. SOUTH)
!
47 1-757-840-12 CORD, POWER (WITH CONNECTOR)
(KV-29FS120 L. SOUTH ONLY)
48 4-084-918-01 HOLDER, HV CABLE
!
49 1-453-310-21 FBT ASSY NX-4521//X4J4 [50-52]
!
50 1-251-374-14 CAP ASSY, HIGH-VOLTAGE
!
51 1-900-800-65 CONNECTOR ASSY, FOCUS LEAD
!
52 1-900-803-22 WIRE ASSY, G2 LEAD
* 53 A-1415-635-A D BOARD, MOUNTED
* 54 3-696-606-02 HINGE, VI
55 4-089-050-32 COVER, REAR
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
