KV-27FA310/27FS120/29FA310/29FS120
KV-27FA310/27FS120/29FA310/29FS120
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]

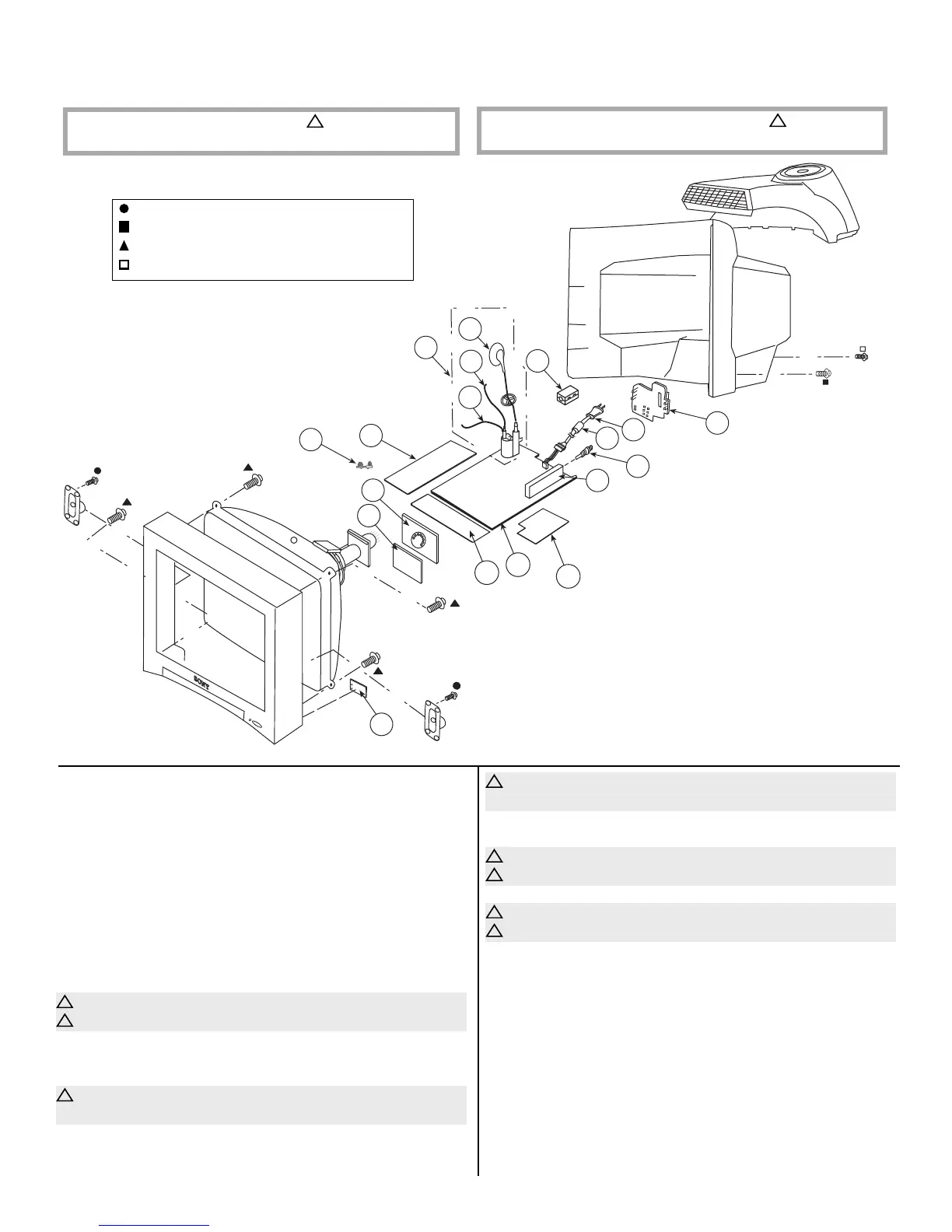

6-4. CHASSIS (KV-27FA310/29FA310 ONLY)
41
42
43
45
54
55
56
47
51
52
53
50
49
46
44
57
48
40
* 40 A-1415-629-A HR (VAR) BOARD, MOUNTED
* 41 A-1415-631-A HU (VAR) BOARD, MOUNTED
* 42 A-1302-880-A A BOARD, COMPLETE
(KV-27FA310 & KV-29FA310 L. NORTH ONLY)
The high-voltage leads associated with the FBT on the A board
are not included and must be ordered separately. (See 51-53)
* 42 A-1302-954-A A BOARD, COMPLETE
(KV-29FA310 L. SOUTH ONLY)
The high-voltage leads associated with the FBT on the A board
are not included and must be ordered separately. (See 51-53)
* 43 A-1410-921-A K BOARD, MOUNTED
!
44 8-598-593-50 TUNER, FSS BTF-WA421
!
45 1-766-374-11 PLUG, F-PIN
46 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
(KV-29FA310 L. SOUTH ONLY)
!
47 1-824-069-11 CORD, AC POWER (WITH CONNECTOR)
(KV-27FA310 & KV-29FA310 L. NORTH ONLY)
!
47 1-757-840-12 CORD, POWER (WITH CONNECTOR)
(KV-29FA310 L. SOUTH ONLY)
* 48 4-087-877-41 TERMINAL BRACKET
49 1-500-082-11 CLAMP, SLEEVE FERRITE
!
50 1-453-310-21 FBT ASSY NX-4521//X4J4 [51-53]
!
51 1-251-374-14 CAP ASSY, HIGH-VOLTAGE
!
52 1-900-800-65 CONNECTOR ASSY, FOCUS LEAD
!
53 1-900-803-22 WIRE ASSY, G2 LEAD
* 54 A-1410-927-A GD (COM) BOARD, MOUNTED
* 55 4-076-951-01 HINGE, PWB
* 56 A-1410-925-A CW BOARD, MOUNTED
* 57 A-1410-924-A V BOARD, MOUNTED
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER
7-685-663-71 SCREW +BVTP 4X16 TYPE2 IT-3
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
. . .
