KV-27FA310/27FS120/29FA310/29FS120

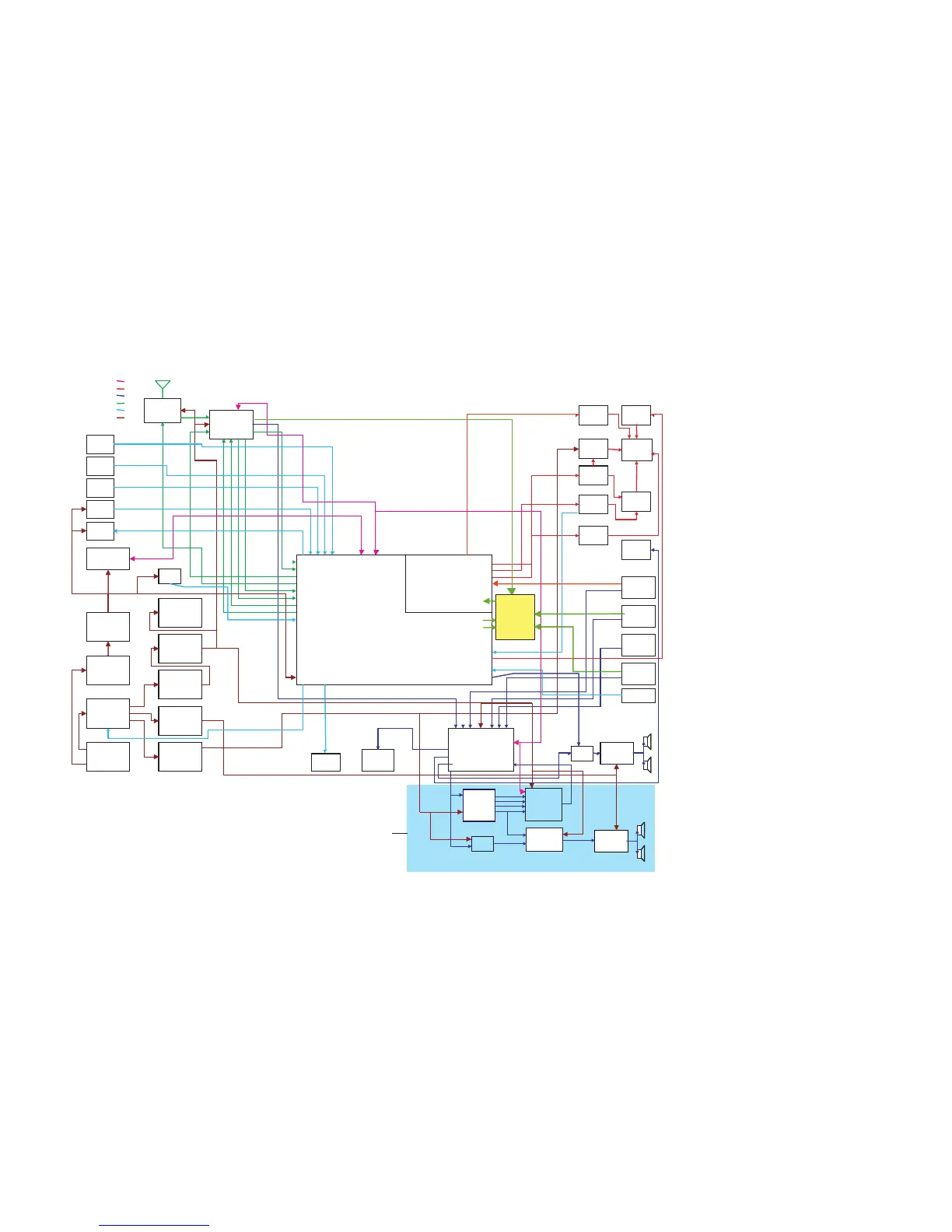

5.3. BLOCK DIAGRAM AND SCHEMATICS
Main Tuner
($C0)
Antena
Switch
Micro
M65582MF-XXXFP
($60)
IR
Receiver
Menu
Keys
Front
Panel
Keys
Stand by/
Timer
Led
M24C16
($A0,$A2,$A4,
$A6,$A8,$AA)
Reset
Degauss
SW
Video Processor/Comb Filter
($??)
Tilt
Rotation
CRT
VM
RGB
Amp
Audio Processor
NJM1134
($82)
Audio Amp.
TDA8580Q
Mute
AC Line
Main Power
Supply
Energy Star
5V Stand-by
B+ Rectifier
115V
Low B
Rectifier
12.5V
Audio
Rectifier 14V
9V Regulator
5V Regulator
Video 1
Video 2
Video 3
Video 4
V-Out
H-Out
FBT
DY
Monitor
Out
Audio
Out
Power
Key
VCC O-MUTE
Audio Inputs
Audio Outputs
O-ANTSW
I-AFT
I-AFT2
O-MONO
O-AGCMUTE
O-SAP
I-SAP
I-STEREN
O-NS
I-POWERN
I-KEY
I-MENU
I-RMCN
O-LED
Mechanical
S-Video
I-MECSVD
O-RELAYN
O-DGC
I-HLDWN
I-RESET
IO-BDAT
O-BCLKN
IO-SDAT
O-SCLKN
Communication
Picture Signal
Power
Sound Signal
Tuning Related
Control Lines
Video S W
O-S E L0
O-S E L1
Main Tuner
($C0)
Antenna
Switch
Micro
M65582MF-XXXFP
IR
Receiver
Menu
Keys
Front
Panel
Keys
Stand by/
Timer
Led
M24C16
($A0,$A2,$A4,
$A6,$A8,$AA)
Reset
Degauss
SW
Video Processor/Comb Filter
Tilt
Rotation
CRT
VM
RGB
Amp
Audio Processor
NJM
xxxx
Mute
AC Line
Main Power
Supply
Energy Star
5V Stand-by
B+ Rectifier
115V
Low B
Rectifier
12.5V
Audio
9V Regulator
5V Regulator
Video 1
Video 2
Video 3
Video 4
V-Out
H-Out
FBT
DY
Monitor
Out
Audio
Out
Power
Key
VCC O-MUTE
Audio Inputs
Audio Outputs
O-ANTSW
I-AFT
I-AFT2
O-MONO
O-AGCMUTE
O-SAP
I-SAP
I-STEREN
O-NS
I-POWERN
I-KEY
I-MENU
I-RMCN
O-LED
Mechanical
S-Video
I-MECSVD
O-RELAYN
O-DGC
I-HLDWN
I-RESET
IO-BDAT
O-BCLKN
IO-SDAT
O-SCLKN
IIC
Picture Signal
Power
Sound Signal
Tuning Related
Control Lines
Video S W
O-S E L0
O-S E L1
Dolby Pro Logic
Cross
Over
Audio Amp
TDA8947J
Audio Amp
TDA8947J
TruSurround
NJM2180
Audio
Processor
NJW1164
21FM210=14V
all others=18V
for FA310 models
(THIS SECTION FOR KV-27FA310/29FA310 MODELS ONLY)
