55
KV-27FA310/27FS120/29FA310/29FS120
KV-27FA310/27FS120/29FA310/29FS120
Components not identifi ed by a part number or
description are not stocked because they are seldom
required for routine service.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
NOTE: The components identifi ed by shading and
!
mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es per un trame et une marque
!
sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
SECTION 6: EXPLODED VIEWS
10
11
9
18
17
12
8
3
1
20
20
5
4
14
16
13
19
2
7
15
6

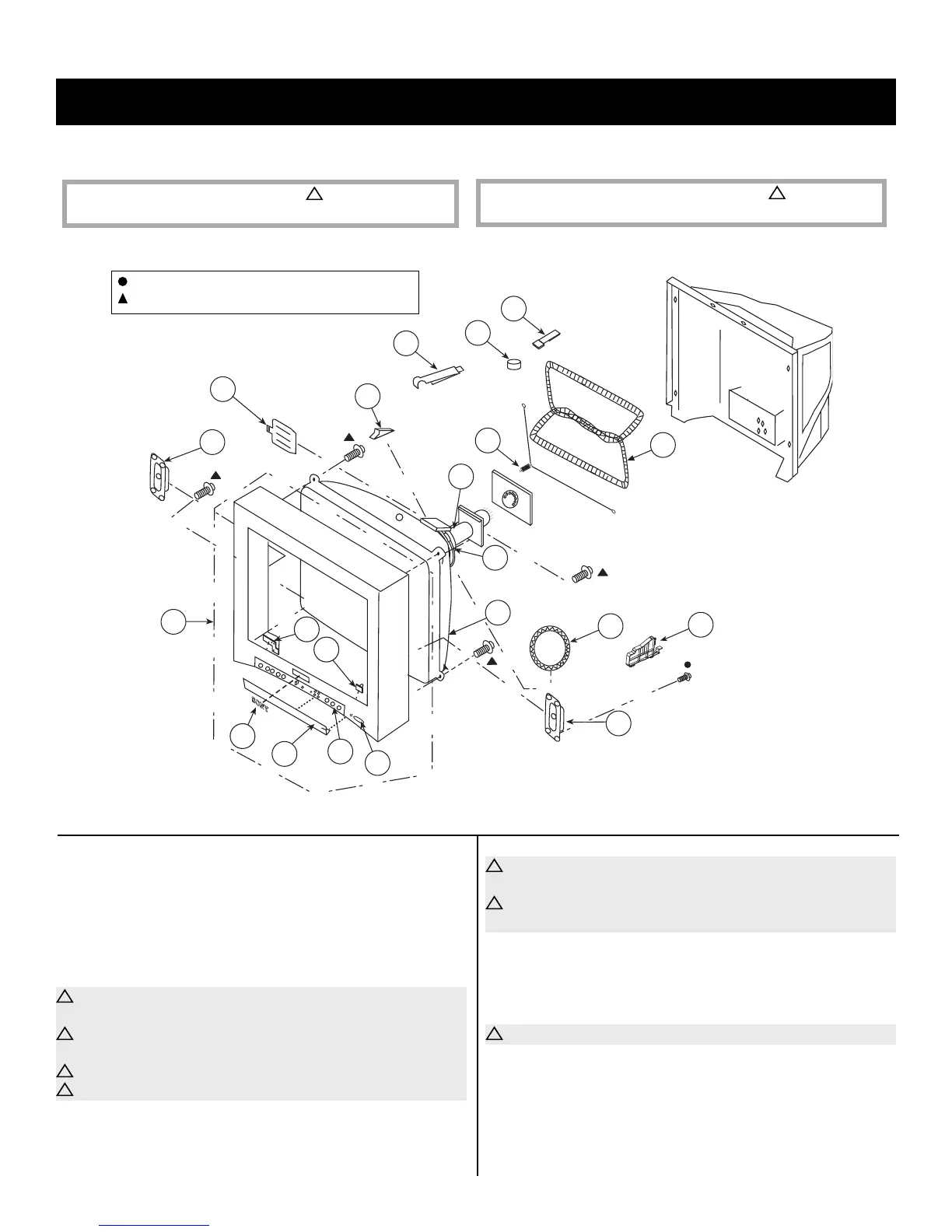

6-1. PICTURE TUBE (KV-27FS120/29FS120 ONLY)
1 X-4043-163-1 BEZNET, ASSY [2-7]
2 4-046-160-31 EMBLEM, SONY NO.9
3 4-089-056-11 DOOR
4 4-089-016-01 LABEL, DOOR
5 4-089-057-11 BUTTON, POWER
6 4-089-058-01 GUIDE, LED
* 7 4-083-303-01 SPRING, METAL
!
8 8-735-082-05 CRT 29RSN(SDP)
(ALL EXCEPT KV-29FS120 L. SOUTH)
!
8 8-735-083-05 CRT 29RSN(SDP)(SOUTH)
(KV-29FS120 L. SOUTH ONLY)
!
9 8-451-494-41 DY Y29RSA-V
!
10 1-452-896-11 COIL, NA ROTATION (RT-200)
11 4-089-062-02 SUPPORTER, CRT
!
12 1-419-156-21 COIL, DEGAUSSING
(ALL EXCEPT KV-29FS120 L. SOUTH)
!
12 1-419-523-21 COIL, DEGAUSSING
(KV-29FS120 L. SOUTH ONLY)
13 4-083-414-01 PIECE A(110), CONV CORRECT
14 1-452-885-11 MAGNET, LANDING
* 15 4-062-970-12 CLIP (29RSN), DGC
16 4-036-329-01 SPRING (B), TENSION
!
17 8-453-011-11 NECK ASSEMBLY 299-M
18 4-053-005-01 SPACER, DY
19 4-081-170-01 PLATE, TLH CORRECTION
20 1-825-206-11 LOUDSPEAKER (6X12CM)
4-388-477-01 SCREW(3X16),TAPPING,+BV WASHER
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
