Sony Trinitron KV-32TW77 - Dynamic Convergence Circuit Adjustments (32-inch)

; KV-27TW77/27TW78
KV-32TW7 W32TW 78
(3)

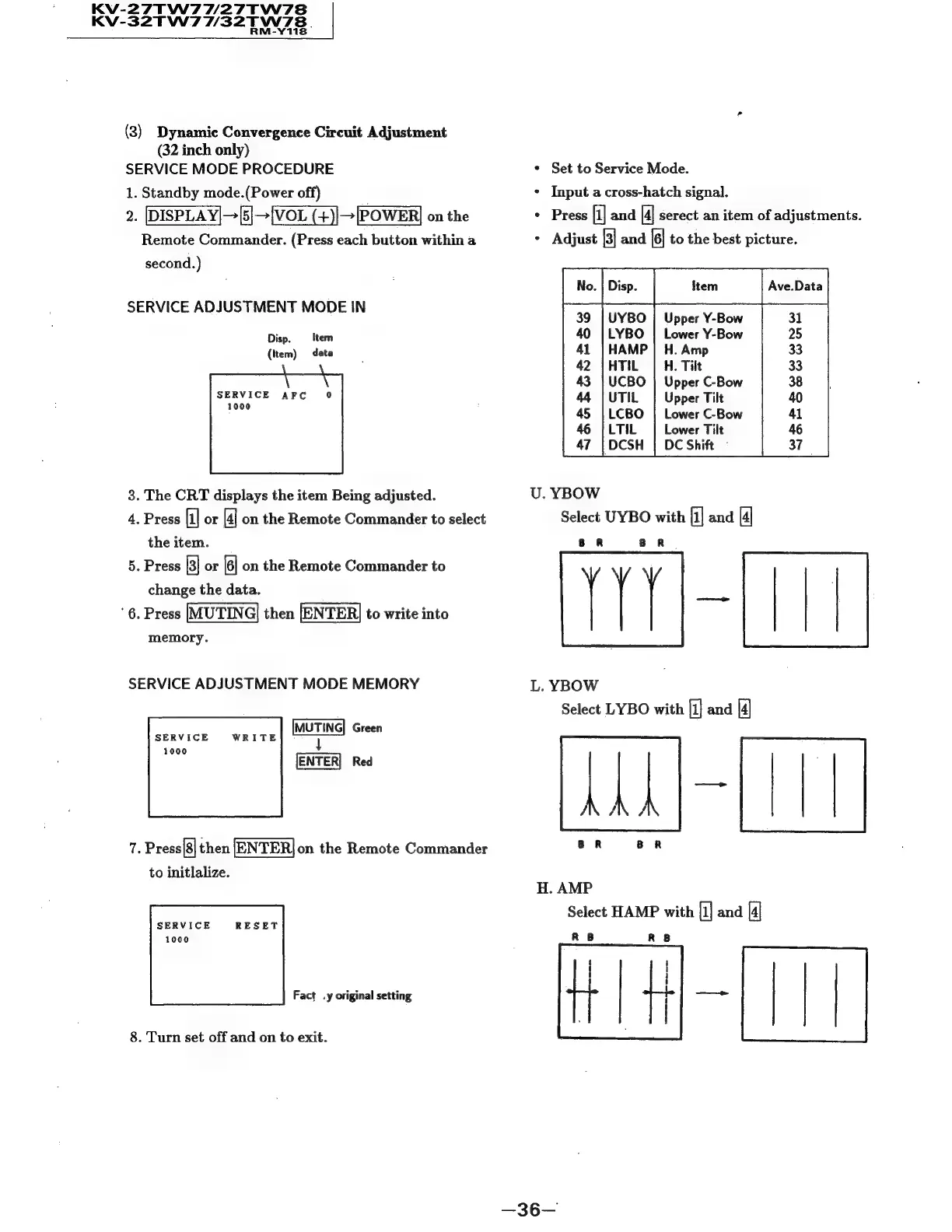

Dynamic Convergence Circuit Adjustment
(32 inch only)
SERVICE MODE PROCEDURE
1. Standby mode.(Power off)
2. [DISPLA Y|—[5]—[VOL (+)| [POWER] on the
Remote Commander. (Press each button within a
second.)
SERVICE ADJUSTMENT MODE IN
Item
data
Disp.
(Item)
SERVICE AFC 0
1000
3. The CRT displays the item Being adjusted.
4. Press |1| or |4| on the Remote Commander to select
the item.
. Press [3} or [6] on the Remote Commander to
change the data.
. Press |MU'TING|] then ENTER! to write into
memory.
Or
lon)
SERVICE ADJUSTMENT MODE MEMORY
MUTING] Green
SERVICE WRITE
1000 4
ENTER) Red
7. Press|8| then ENTER) on the Remote Commander
to initlalize.
SERVICE
1000
RESET
Fact .y original setting
8. Turn set off and on to exit.
* Set to Service Mode.
* Input a cross-hatch signal.
* Press [1] and [4] serect an item of adjustments.
° Adjust [3] and fel to the best picture.
Upper Y-Bow
Lower Y-Bow
H. Amp
H. Tilt
Upper C-Bow
Upper Tilt
Lower C-Bow
Lower Tilt
DC Shift:
U. YBOW
Select UYBO with [i] and
BR BOR
L. YBOW
Select LYBO with [1] and [4]
H. AMP
Select HAMP with [1] and [4]
RB jgj.RB8
oe.
eee
