KV-27TW77 _KV-27TW78
KV-32TW77 KV-32TW78
VHF/UHF
antenna terminal
§ VIDEO IN jack
1 IN jack:
VIDEO
jacks
AUDIO
OUT
jacks
VIDEO 3 IN jacks
8 Pretace

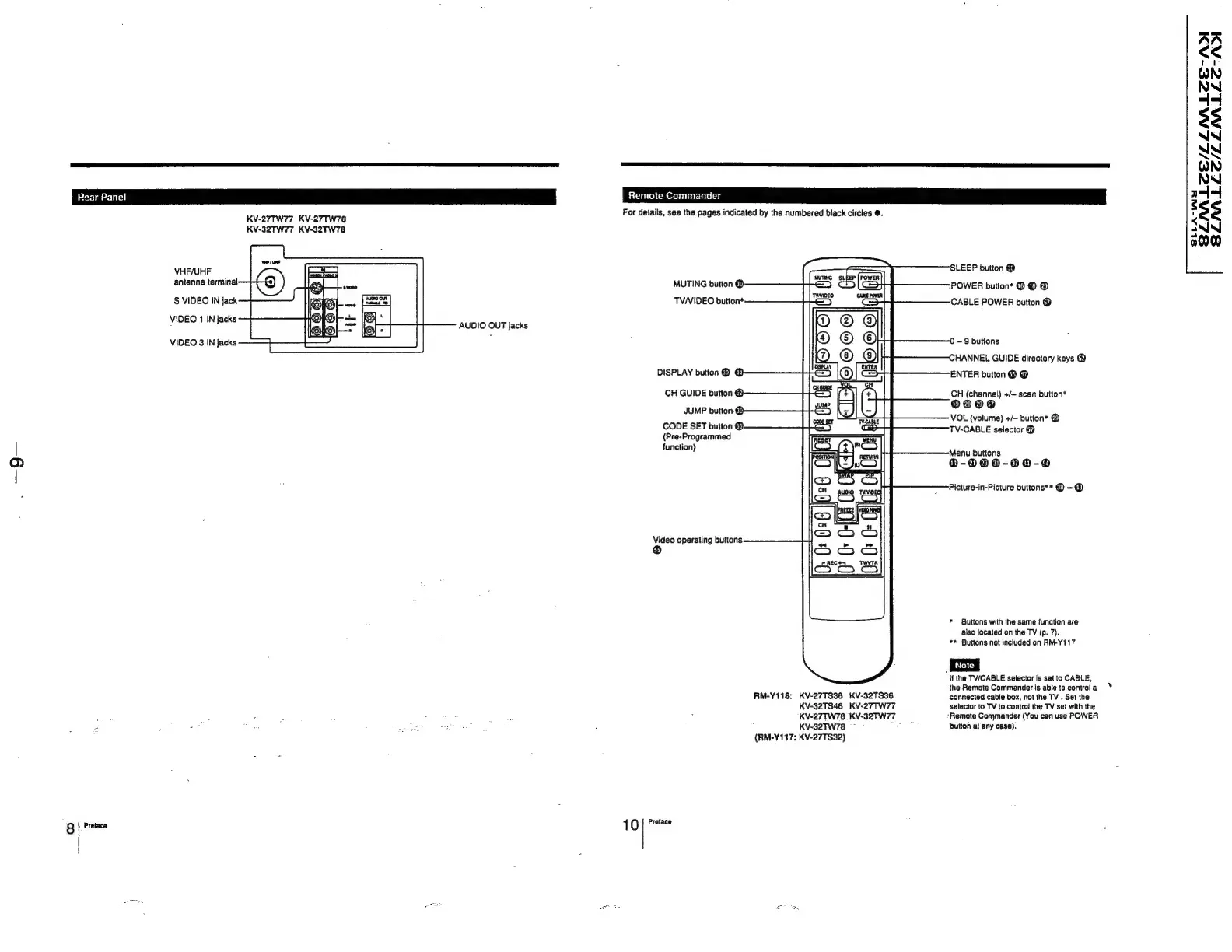

Remote Commander
For details, see the pages indicated by the numbered black circles @.
SLEEP button @
POWER button* ® ® @
CABLE POWER button @
MUTING button @:
TV/VIDEO button*:
‘0 — 9 buttons
HANNEL GUIDE directory keys @
DISPLAY button @ @. ENTER button @ @
CH (channel) +/~ scan button*
®©OO9O
JUMP button.@
VOL (volume) +/— button* @
CODE SET button @. TV-CABLE selector @
(Pre-Programmed
function)
Menu
buttons
©-@©0-00-@
Picture-in-Picture buttons** @ - @
Video operating buttons
* Buttons with the same function are
also located on the TV (p. 7).
** Buttons not included on RM-Y117
if the TV/CABLE selector is set to CABLE,
the Remote Commander is able to control a
connected cable box, not the TV . Set the
selector to TV to control the TV set with the
‘Remote Commander (You can use POWER
*
RM-Y118: KV-27TS36 KV-32TS36
KV-32TS46 KV-27TW77
KV-27TW78 KV-32TW77
KV-32TW78 . ae aa button at any case).
(RM-Y117: KV-27TS32)
1 0 Preface
