KV-27TW77/27TW78
KV-32TW7 W32TW78
M-Y118

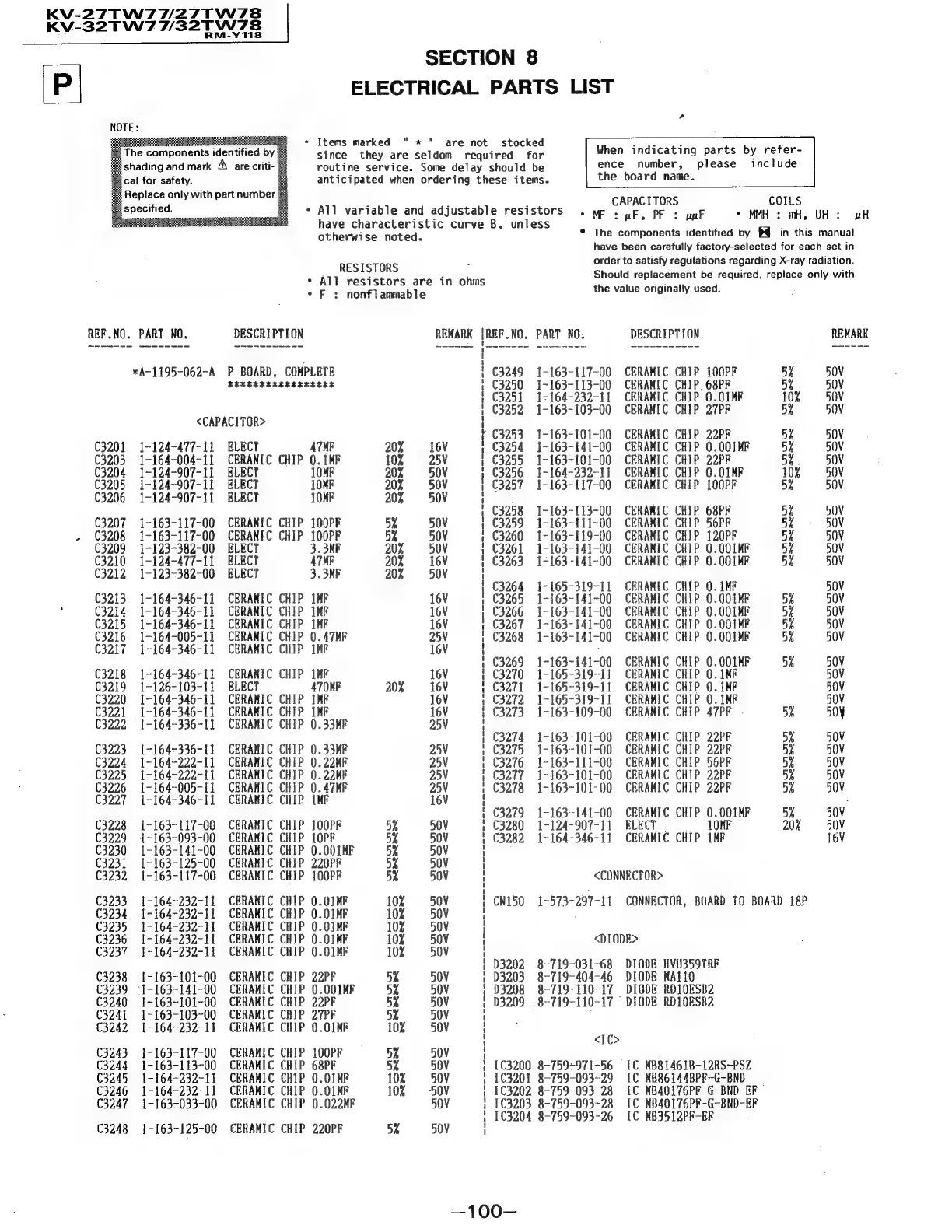

SECTION 8
P| ELECTRICAL PARTS LIST
,
+ Items marked " * “ are not stocked ote ‘i
since they are seldom required for When indicating parts by refer-
hading and mark A are crit routine service. Some delay should be ence number, please include
anticipated when ordering these items. the board name.
2 : y CAPACITORS COILS
* All variable and adjustable resistors . ve sur, PFO: yp * MMH : ain, UH: gH
have characteristic curve B, unless . oy : :
otherwise noted. * The components identified by $4 in this manual
have been carefully factory-selected for each set in
order to satisfy regulations regarding X-ray radiation.
Should replacement be required, replace only with
the value originally used.
RESISTORS
* All resistors are in ohms
* F : nonflammable
C3234 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V
C3235 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V
C3236 1-164-232-11 CERAMIC CHIP 0.01MF 10% = 50V <DIODE>
C3237 =1-164-232-11 CERAMIC CHIP 0.01MF 104 = 50V
D3202 8-719-031-68 DIODE HVU359TRF
C3238 1-163-101-00 CERAMIC CHIP 22PF ay 50V D3203 8-719-404-46 DIODE MA110
(3239 = 1-163-141-00 CERAMIC CHIP 0.001MF 54 50V D3208 =8-719-110-17 DIGDE RDIOESB2
C3240 1-163-101-00 CERAMIC CHIP 22PF 54 50V D3209 _8-719-110-17 DJODE RDIOESB2
C3241 1-163-103-00 CERAMIC CHIP 27PF 5% 50V
C3242 1-164-232-11 CERAMIC CHIP 0.01MF 102 = 50V ‘i
<1C>
C3243 1-163-117-00 CERAMIC CHIP LOOPF 5% 50V
C3244 1-163-113-00 CERAMIC CHIP 68PF 5% 50V 1€3200 8-759-971-56 IC MB81461B-12RS-PSZ
(3245 1-164-232-11 CERAMIC CHIP 0.0IMF 10% = 50V
C3246 1-164-232-11 CERAMIC CHIP 0.01MF 10% = -50V
C3247 ~=1-163-033-00 CERAMIC CHIP 0.022MF 50V
C3248 = 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
1€3201 8-759-093-29 IC NB86144BPF-G-BND
1€3202 8-759-093-28 {[C 4B40176PF-G-BND-EF
1€3203 8-759-093-28 IC MB40176PF-G-BND-EF
103204 8-759-093-26 IC NB3512PF-EF
REF.NO. PART NO. DESCRIPTION REMARK (REF. NO. PART NO. DESCRIPTION REMARK
he MPT aI ee | | GR | * Nag Be eee aes USERS rian
I
*A-1195-062-A P BOARD, COMPLETE C3249 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
EELEPEEALELELESES | C3250 1-163-113-00 CERAMIC CHIP. 68PF 5% 50V
+ C3251 1-164-232-11 CERAMIC CHIP 0.01MF 10% 50V
1 C3252 1-163-103-00 CERAMIC CHIP 27PF 54 50V
<CAPACI TOR> H
¥ C3253 1-163-101-00 CERAMIC CHIP 22PF 5% 50V
C3201 1-124-477-11 ELECT ATMF 20% 16V 1 C3254 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V
C3203 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V + €3255 1-163-101-00 CERAMIC CHIP 22PF 5%. 5OV
C3204 1-124-907-11 ELECT 10MF 20% 50V | C3256. 1-164-232-11 CERAMIC CHIP 0.01MF 10% 5OV
C3205 1-124~-907-11 ELECT 10MF 20% 50V 1 C3257 1-163-117-00 CERAMIC CHIP 1OOPF ay 4 5OV
C3206 1-124-907-11 ELECT 10MF 20% 50V
{ C3258 1-163-113-00 CERAMIC CHIP 68PF 5% 50V
C3207 1-163-117-00 CERAMIC CHIP 100PF 54 50V + C3259 1-163-111-00 CERAMIC CHIP 56PF 54 = 50V
- C3208 1-163-117-00 CERAMIC CHIP 100PF 5% 50V + €3260 1-163-119-00 CERAMIC CHIP 120PF 5% 50V
C3209 1-123-382-00 ELECT 3.3MF 20% 50V + C3261 1-163-141-00 CERAMIC CHIP 0.001MF 5% 5OV
C3210 1-124-477-11 ELECT ATMF 20% 16V 1 C3263 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V
C3212 1-123-382-00 ELECT 3.3MF 20% 50V
C3264 1-165-319-11 CERAMIC CHIP 0.1MF 5OV
C3213. 1-164-346-11 CERAMIC CHIP IMF 16V + ©3265 1-163~-141-00 CERAMIC CHIP 0.001MF 5% 50V
C3214 1-164-346-11 CERAMIC CHIP iMF 16V | C3266 1-163-141-00 CERAMIC CHIP 0.001MF 54 50V
C3215 1-164-346-11 CERAMIC CHIP IMF 16V | ©3267 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V
C3216 1-164-005-11 CERAMIC CHIP 0.47MF 25V | C3268 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V
C3217 1-164-346-11 CERAMIC CHIP IMF 16V
| C3269 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V
C3218 1-164-346-11 CERAMIC CHIP 1MF 16V i C3270 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C3219 1-126-103-11 ELECT ATOMF 20% 16V 1 C3271 1-165-319-11 CERAMIC CHIP 0.1MF 50V
C3220 1-164~-346-11 CERAMIC CHIP 1MF 16V 1 C3272 1-165-319-11 CERAMIC CHIP 0. IMF 5OV
C3221 =1-164-346-11 CERAMIC CHIP IMF 16V + ©3273 1-163-109-00 CERAMIC CHIP 47PF 5% 504
C3222 = 1-164-336-1] CERAMIC CHIP 0.33MF 25V
| C3274 1-163-101-00 CERAMIC CHIP 22PF 5% 50V
(3223 =1-164-336-11 CERAMIC CHIP 0.33MF 25V 1 C3275 1-163-101-00 CERAMIC CHIP 22PF 5k 50V
C3224 1-164-222-11 CERAMIC CHIP 0.22MF 25V | C3276 1-163-111-00 CERAMIC CHIP 56PF 54 50V
C3225 1-164-222-11 CERAMIC CHIP 0.22MF 25V | C3277 1-363-101-00 CERAMIC CHIP 22PF 5% 50V
C3226 1-164-005-11 CERAMIC CHIP 0.47MF 25V | C3278 1-163-101-00 CERAMIC CHIP 22PF 5% 50V
C3227 +1-164-346-11 CERAMIC CHIP IMF 16V i :
1 ©3279 1-163-141-00 CERAMIC CHIP 0.001MF 5% 50V
C3228 =1-163-117-00 CERAMIC CHIP 100PF 54 50V + C3280 1-124-907-11 ELECT _ OMF 20% 5OV
C3229 1-163-093-00 CERAMIC CHIP 1OPF 0% 50V ; C3282 1-164-346-11 CERAMIC CHIP 1MF 16V
C3230 1-163-141-00 CERAMIC CHIP 0.001MF 54 50V 1
C3231 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
C3232 1-163-117-00 CERAMIC CHIP 100PF 5% 50V <CONNECTOR>
C3233 1-164~-232-11 CERAMIC CHIP 0.01MF 10% 50V | CN150 1-573-297-11 CONNECTOR, BOARD TO BOARD L8P
!
H
I
|
I
{
|
i
{
{
1
1
'
|
I
1
H
i
1
—100—
