Sony Trinitron KV-35V35 - Hookup Procedures

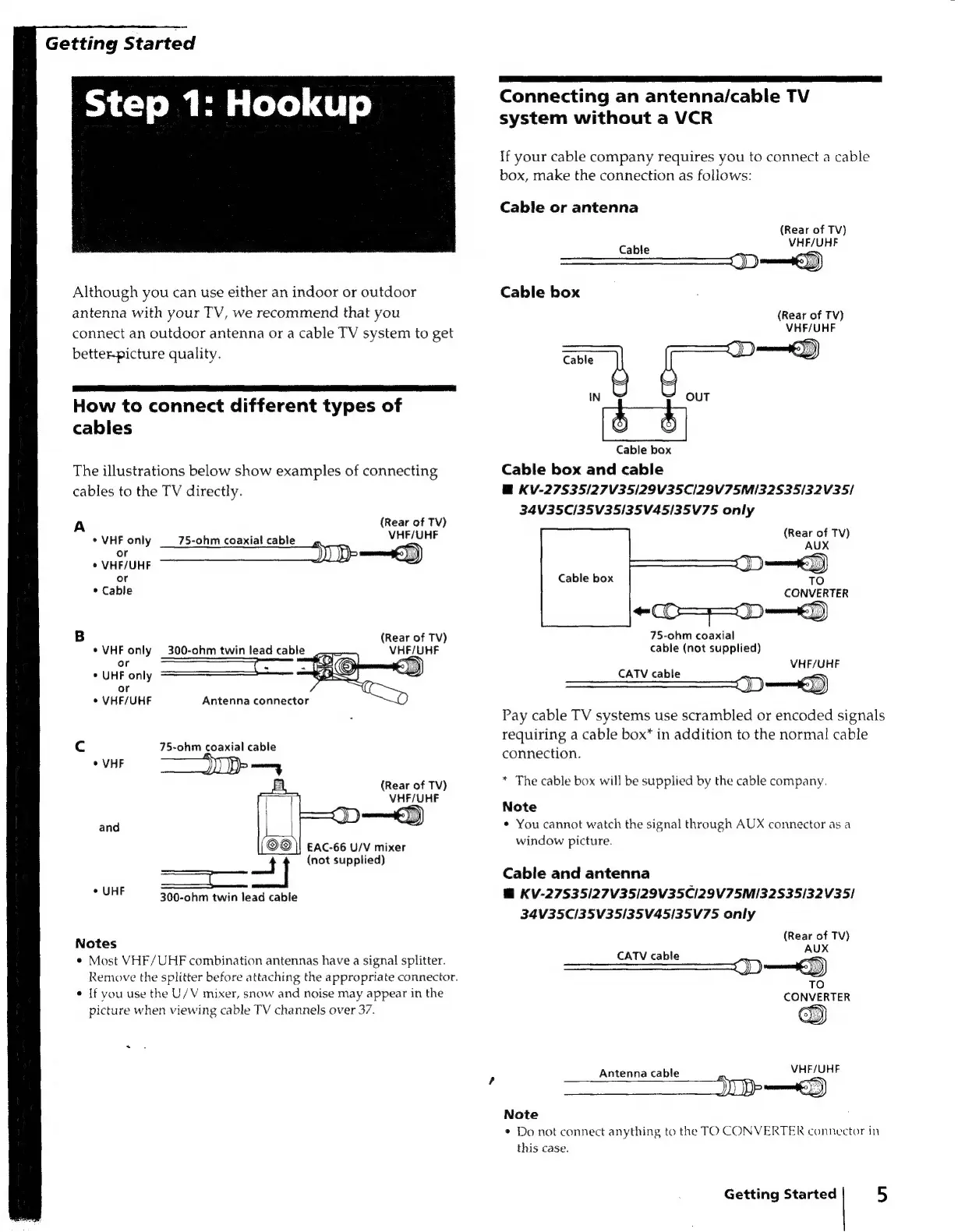

Getting Started
Step 1: Hookup
Although you can use either an indoor or outdoor
antenna with your TV, we recommend that you
connect an outdoor antenna or a cable TV system to get
better-picture quality.
How to connect different types of
cables
The illustrations below show examples of connecting
cables to the TV directly.
A (Rear of TV)
° VHF only 75-ohm coaxial cable VHF/UHF
or }> aeneetS))
© VHF/UHF
or
* Cable
B (Rear of TV)
* VHF only —300-ohm twin lead cable |
VHF/UHF
or 4
¢ UHF only
or
© VHF/UHF Antenna connector
Cc 75-ohm coaxial cable
° VHF
(Rear of TV)
VHF/UHF
ey)
and )
EAC-66 U/V mixer
t | (not supplied)
* UHF 300-ohm twin lead cable
Notes
¢ Most VHF/UHF combination antennas have a signal splitter.
Remove the splitter before attaching the appropriate connector.
¢ If you use the U/V mixer, snow and noise may appear in the
picture when viewing cable TV channels over 37.
Connecting an antenna/cable TV
system without a VCR
If your cable company requires you to connect a cable
box, make the connection as follows:
Cable or antenna
(Rear of TV)
Cable VHF/UHF
Cable box
(Rear of TV)
VHF/UHF
a -— p——€]))
Cable ~ )
IN , , OUT
Cable box
Cable box and cable
@ KV-27835/27V35/29V35C/29V75M/I32835/32V35/
34V35C/35V35/135V45/35V75 only
(Rear of TV)
AUX
TO
CONVERTER
lax
-O>—-D—
75-ohm coaxial
cable (not supplied)
Cable box
CATV cabl VHF/UHF
cable a
[SSS _O —*)
Pay cable TV systems use scrambled or encoded signals
requiring a cable box* in addition to the normal cable
connection.
* The cable box will be supplied by the cable company.
Note
* You cannot watch the signal through AUX connector as a
window picture.
Cable and antenna
@ KV-27535/27V35/29V35C/29V75M132835/32V35!
34V35C/35V35/35V45/35V75 only
(Rear of TV)
AUX
CATV cable °
aE et)
TO
CONVERTER
VHF/UHF
— ie —€D)
Note
¢ Do not connect anything to the TO CONVERTER connector in
this case.
Antenna cable
Getting Started 5
