Sony Trinitron PVM-14L2 Service Manual

2-9
PVM-14L2/20L2

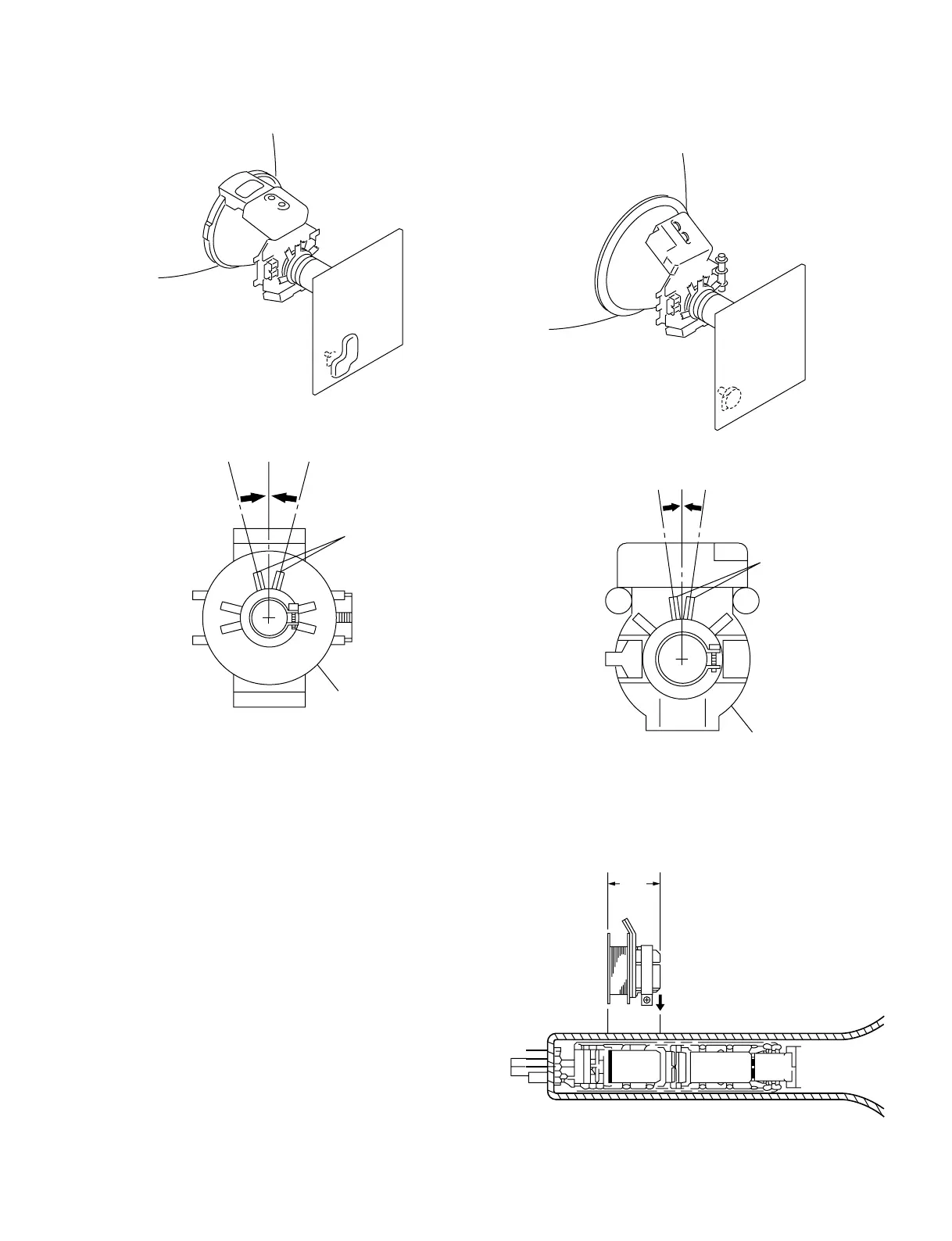

Purity
Purity control
DY (Deflection yoke)
14 inch
Fig. 2-11
Fig. 2-12
Purity control
Purity
DY (Deflection yoke)
20 inch
Fig. 2-11
Fig. 2-12
Fig. 2-13
n
Attach the magnets inside the NTC for the model PVM-
20L2 referring to Fig. 2-13.
25mm
6-pole magnet
(Move it to the top-most position)
Install it so that the magnet
comes to the top-most position.
