1-3
PVM-14L2/20L2

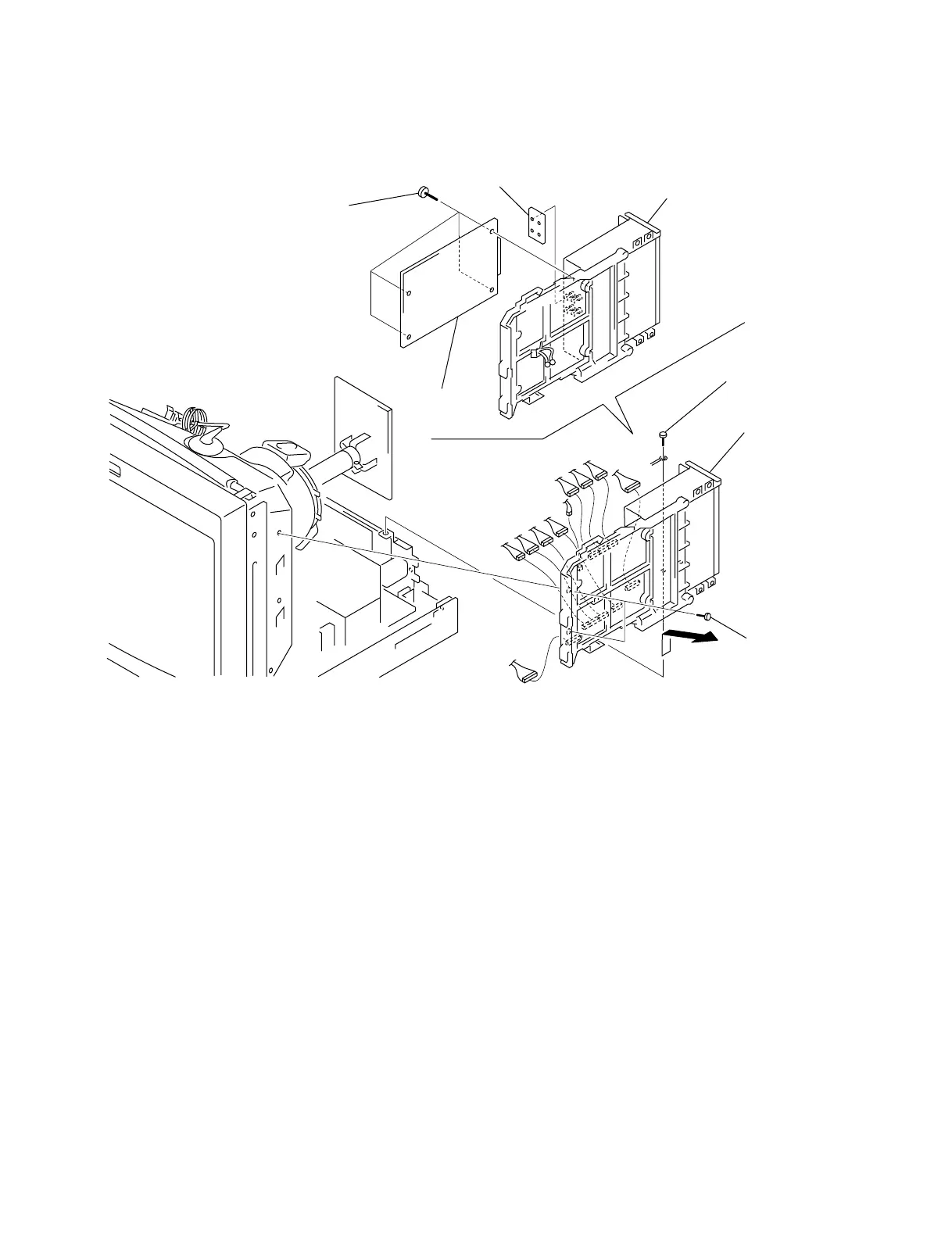

1-2-2. B and B1 Boards Removal (14 inch)
CN102
CN230
CN452
CN454
CN450
CN103
CN104
CN105
CN106
CN231
2
Two screws
(+BVTT 4x8)
1
Screw (+PS 4x8)
6
B board
4
Four screws
(+BVTP 3x12)
5
B bracket, Shield assy
Blank panel assy
3
B block assy
7
B1 board
