Sony UP-890CE - Preparation and Setup; Printer Connections

5
Preparation
Connection
Notes
• Turn off the power to each device before making connection.
• Connect the AC power cord last.

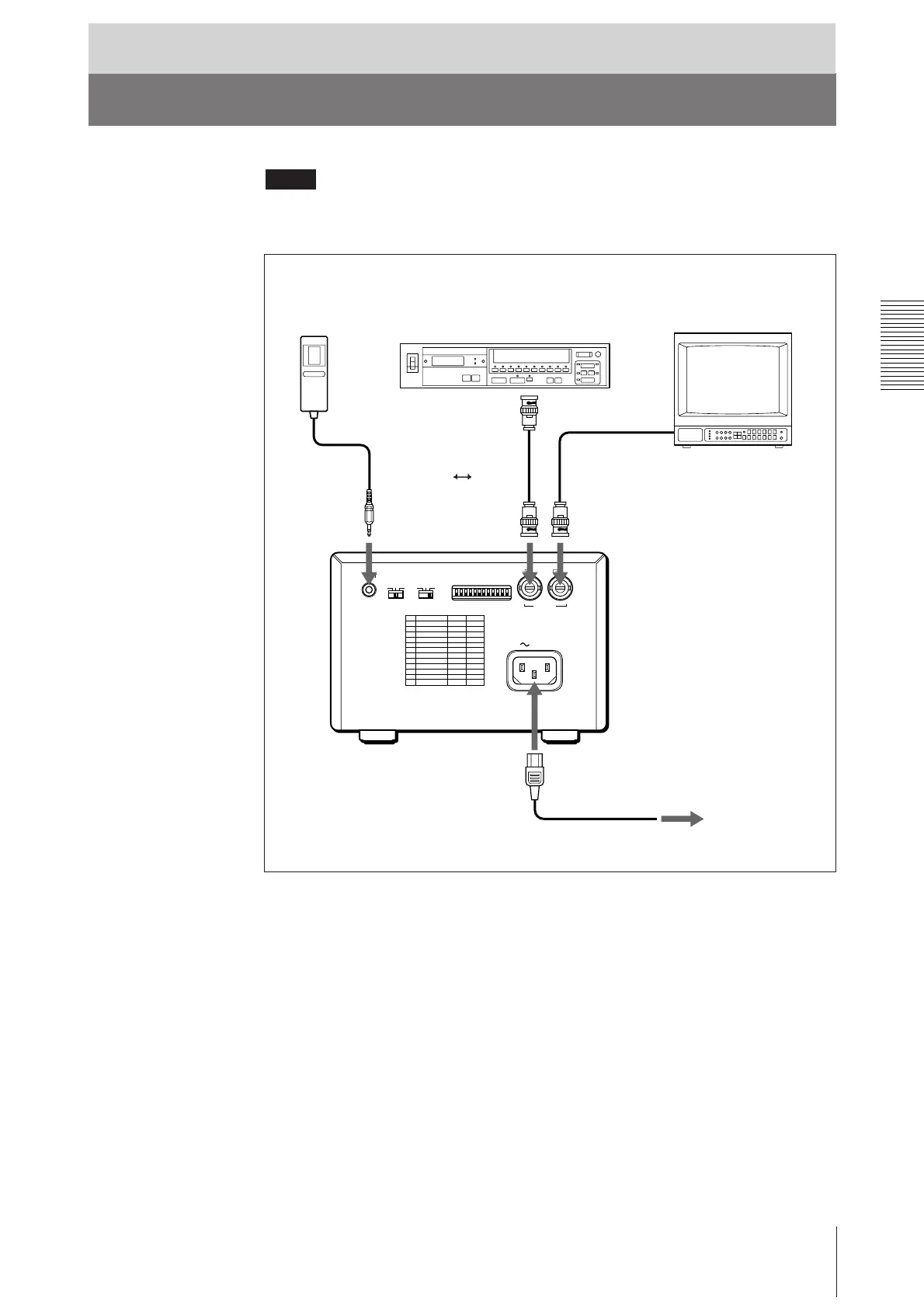

Preparation
to REMOTE
Video equipment
to video output
connector
Supplied coaxial
connecting cable
(BNC ˜ BNC)
to VIDEO IN
RM-91 remote
commander*
Color/black and white
video monitor
Connecting cable
(not supplied)
to video input
connector
to VIDEO OUT
to AC IN
to wall outlet
* The RM-91 remote commander is supplied with UP-890MD only.
Supplied AC power cord
REMOTE GAMMA TYPE
PAPER
DIP SW
OFF
ON
VIDEO
IN OUT
AC IN
IIIIII IIIIV
