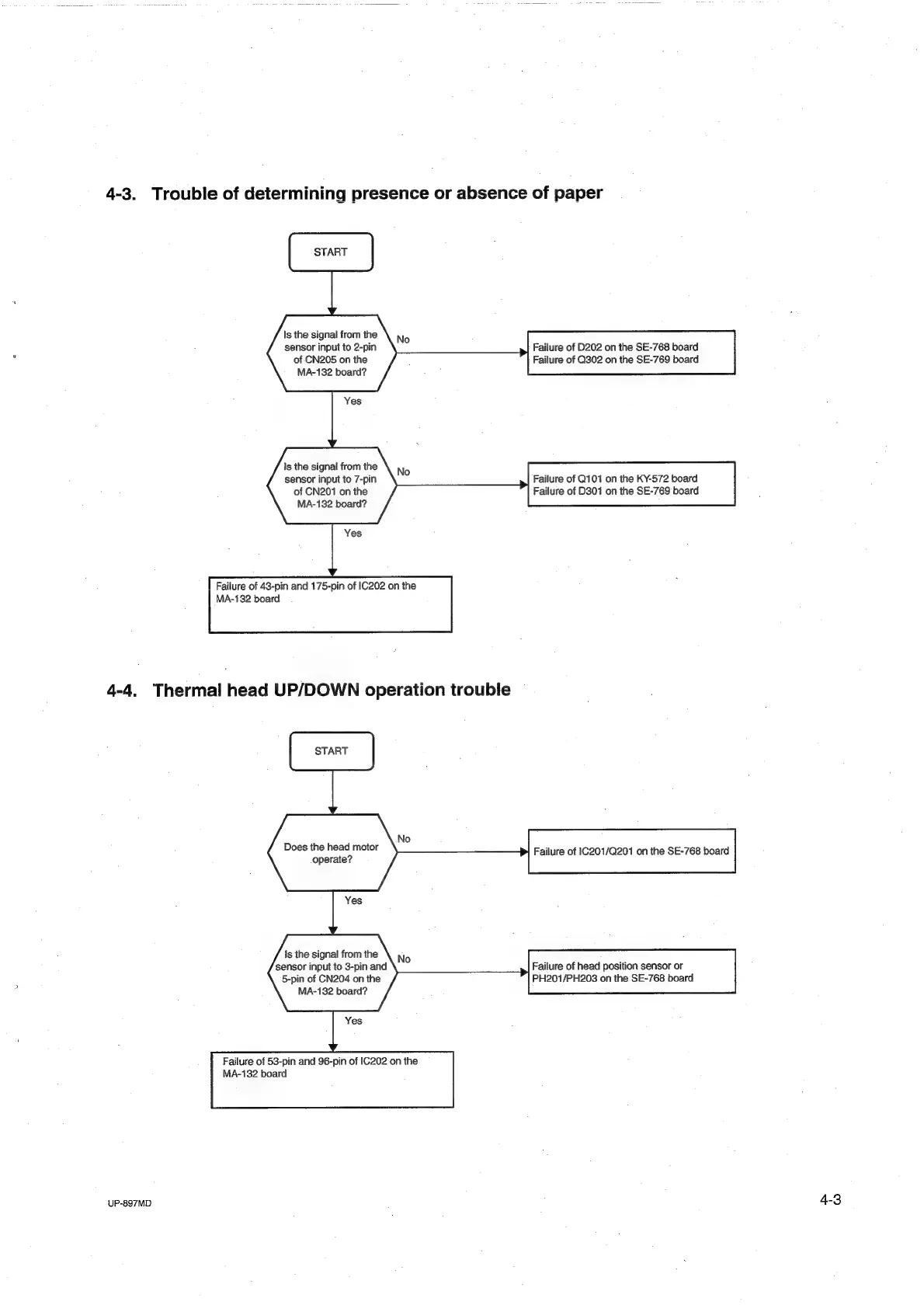

4-3.
Trouble
of
determining
presence
or
absence
of
paper
Is
the
signal
from
the
sensor
input
to
2-pin
of
CN205
on
the
MA-132
board?
Failure
of
D202
on
the
SE-768
board
Failure
of
Q302
on
the
SE-769
board
Is
the
signal
from
the
sensor
input
to
7-pin
of
CN201
on
the
MA-132
board?
Failure
of
Q101
on
the
KY-572
board
Failure
of
D801
on
the
SE-769
board
Failure
of
43-pin
and
175-pin
of
[C202
on
the
MA-132
board
4-4.
Thermal
head
UP/DOWN
operation
trouble
START
Does
the
head
motor
operate?
Failure
of
1C201/Q201
on
the
SE-768
board
\s
the
signal
from
the
sensor
input
to
3-pin
and
5-pin
of
CN204
on
the
MA-132
board?
Failure
of
head
position
sensor
or
PH201/PH203
on
the
SE-768
board
Failure
of
53-pin
and
96-pin
of
IC202
on
the
MA-132
board
