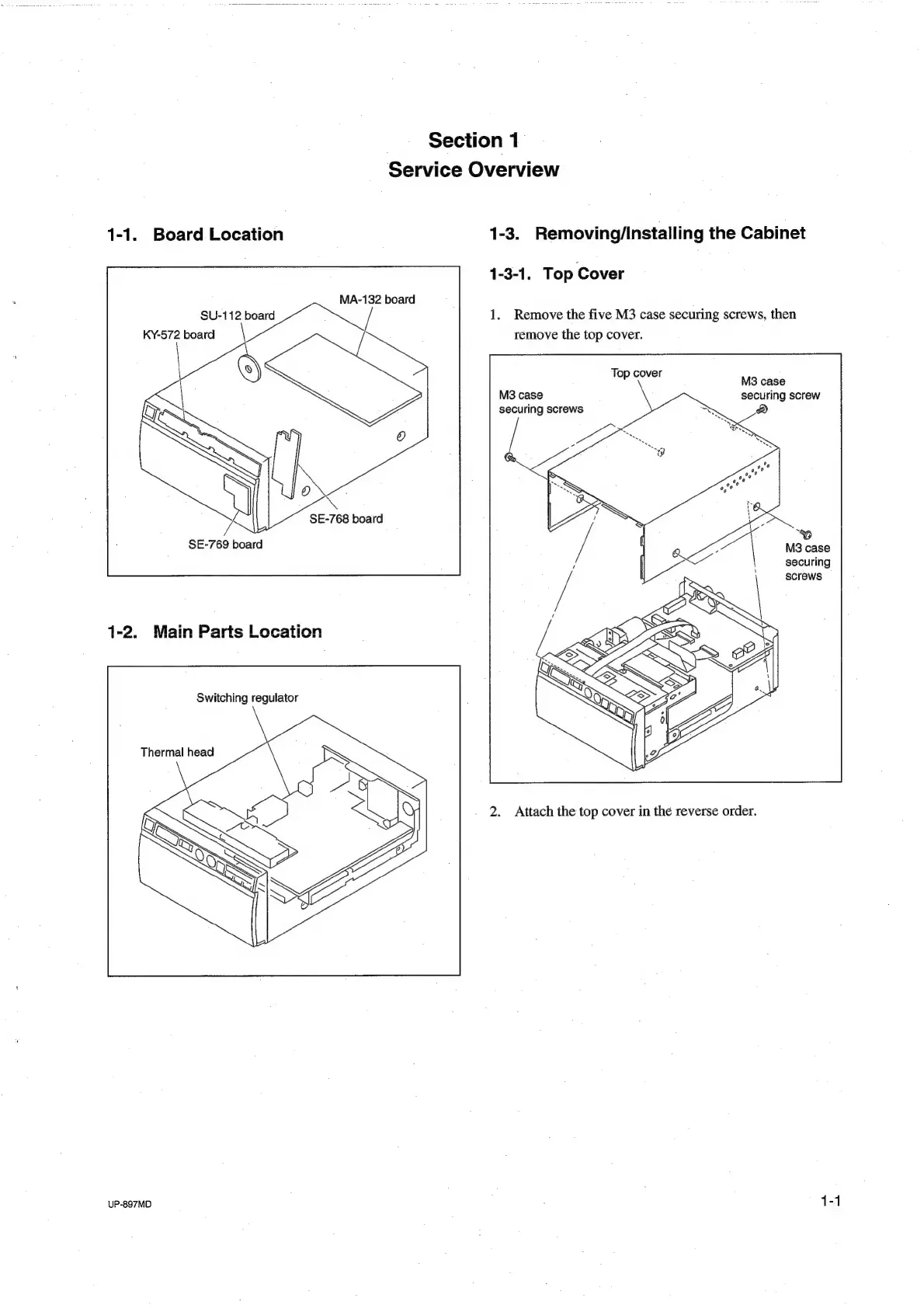

Section 1
Service Overview
1-1. Board Location 1-3. Removing/Installing the Cabinet
1-3-1. Top Cover
MA-132 board
SU-112 board 1. Remove the five M3 case securing screws, then
KY-572 board remove the top cover.
Top cover
ee M3 case
M3 case securing screw
g
securing
screws
&
0 l
O IS . 00°
A
iS)
ee
ie as board
Ne
SE-769 board
°°
M3 case
securing
1-2. Main Parts Location
Switching regulator
Thermal head
2. Attach the top cover in the reverse order.
UP-897MD
4-1
