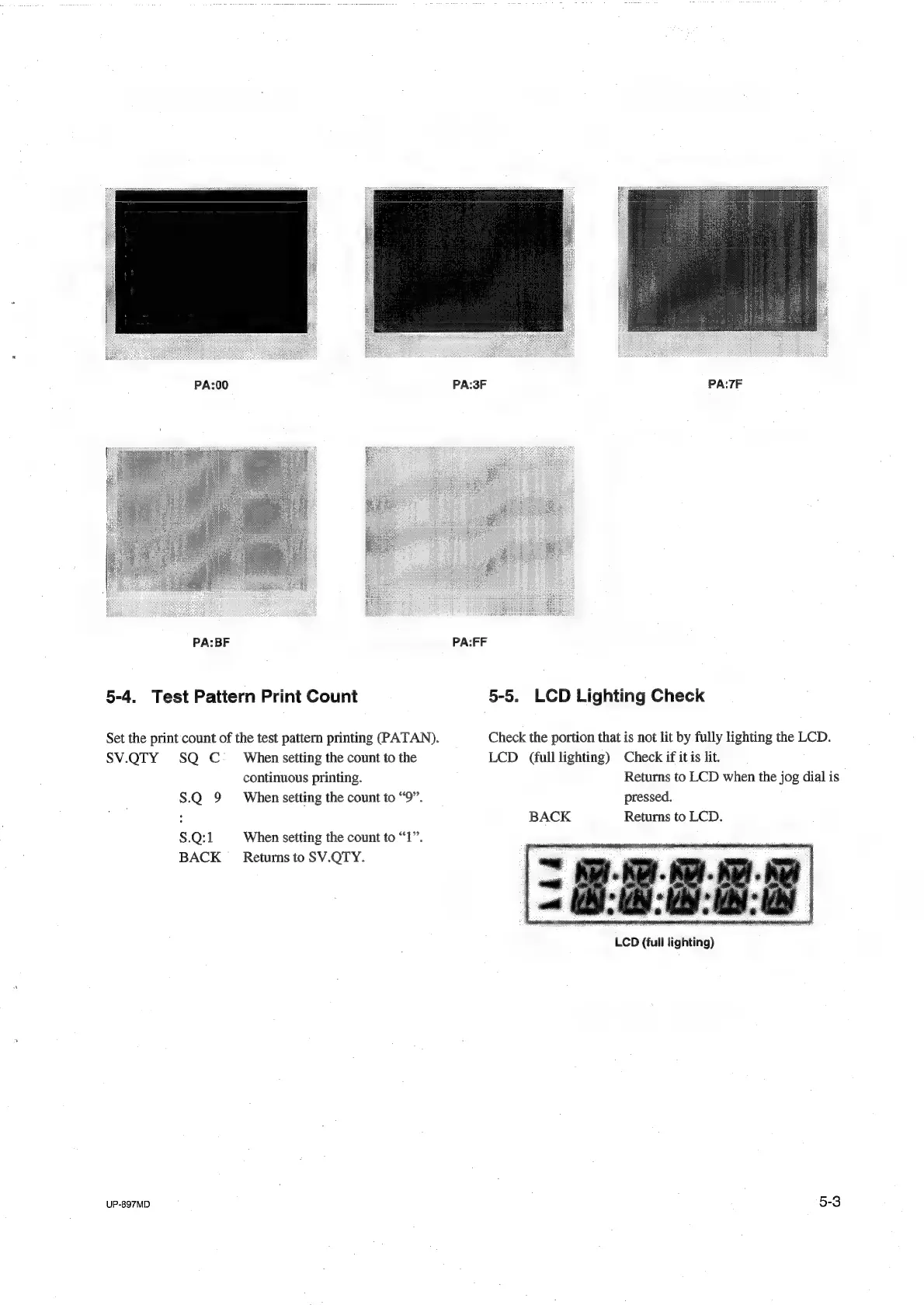

Sony UP-897MD - Test Pattern Print Count; LCD Lighting Check 00.0

PA:00 PA:3F PA:7F
PA:BF PA:FF
5-4. Test Pattern Print Count 5-5. LCD Lighting Check
Set the print count of the test pattern printing (PATAN). Check the portion that is not lit by fully lighting the LCD.
SV.QTY SQ C _ When setting the count to the LCD (fulllighting) Check if it is lit.
continuous printing. Returns to LCD when the jog dial is
S.Q 9 When setting the count to “9”. pressed.
: BACK Returns to LCD.
$.Q:1 When setting the count to “1”,
BACK _ Returns to SV.QTY.
LCD (full fighting)
UP-897MD
5-3
