Sony UP-897MD - Exploded Views

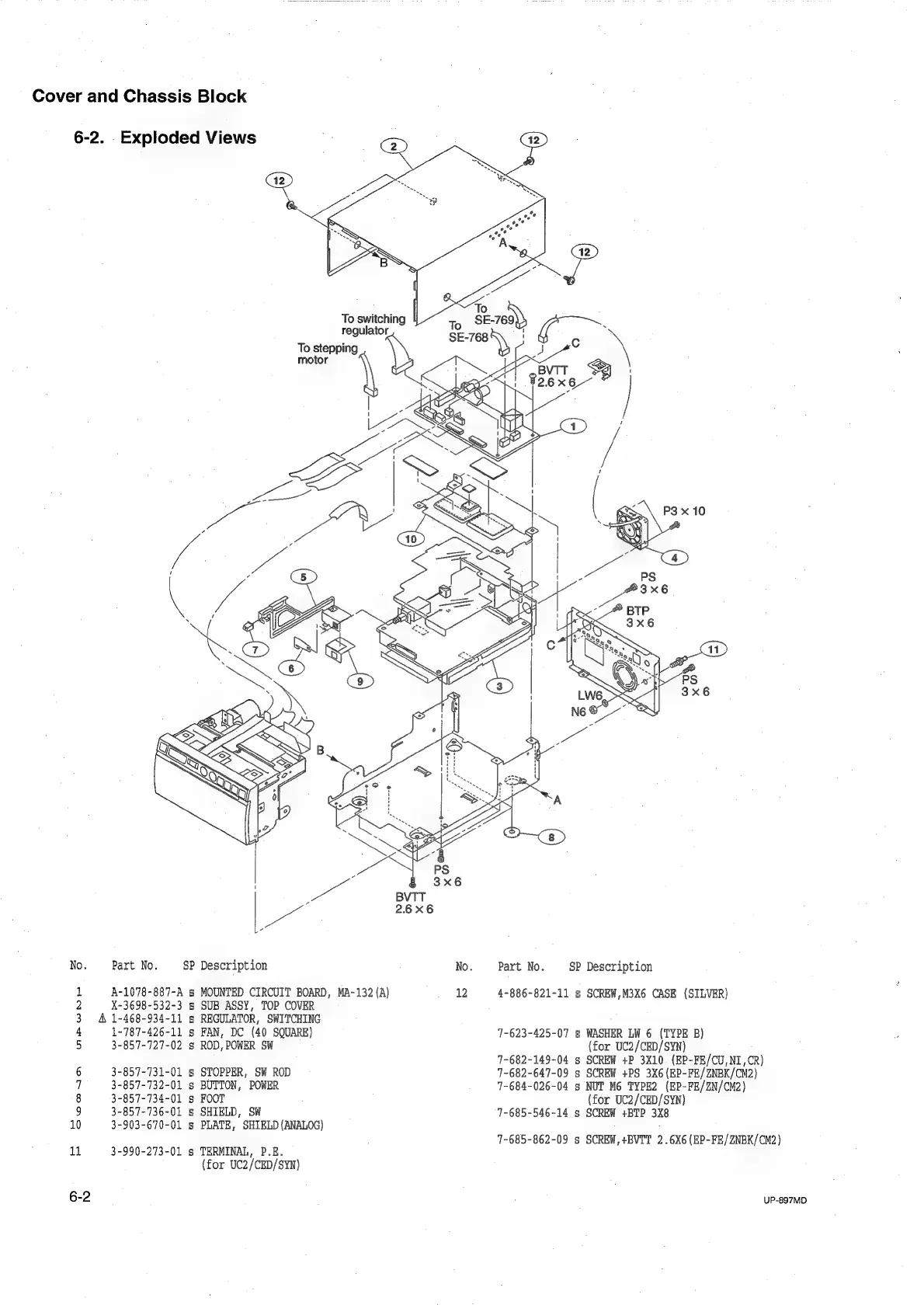

Cover and Chassis Block
6-2. .Exploded Views
To switching
regulator
To stepping
motor
No. Part No. SP Description No. Part No. SP
1 A-1078-887-A s MOUNTED CIRCUIT BOARD, MA-132(A) 12 4-886-821-11 s
2 X-3698-532-3 s SUB ASSY, TOP COVER
3. A 1-468-934-11 s REGULATOR, SWITCHING
4 1-787-426-11 s FAN, DC (40 SQUARE) 7-623-425-07 s
5 3-857-727-02 s ROD, POWER SW
7-682-149-04 s
6 3-857-731-01 s STOPPER, SW ROD 7-682-647-09 s
7 3-857-732-01 s BUTTON, POWER 7-€84-026-04 s
8 3-857-734-01 s FOOT
9 3-857-736-01 s SHIELD, SW 7-685-546-14 s
10 3-903-670-01 s PLATE, SHIELD (ANALOG)
7-685-862-09 s
11 3-990-273-01 ¢ TERMINAL, P.E.
(for UC2/CED/SYN)
Description
SCREW, M3X6 CASE (SILVER)
WASHER LW 6 (TYPE B)
(for UC2/CED/SYN
SCREW +P 3X10. (EP-FE/CU,NI, CR)
SCREW +PS 3X6 (EP-FE/ZNBK/CM2)
NUT M6 TYPE2 (EP-FE/ZN/CM2)
(for UC2/CED/SYN
SCREW +BTP 3X8
SCREW, +BVIT 2.6X6 (EP-FE/ZNBK/CM2)
UP-897MD
