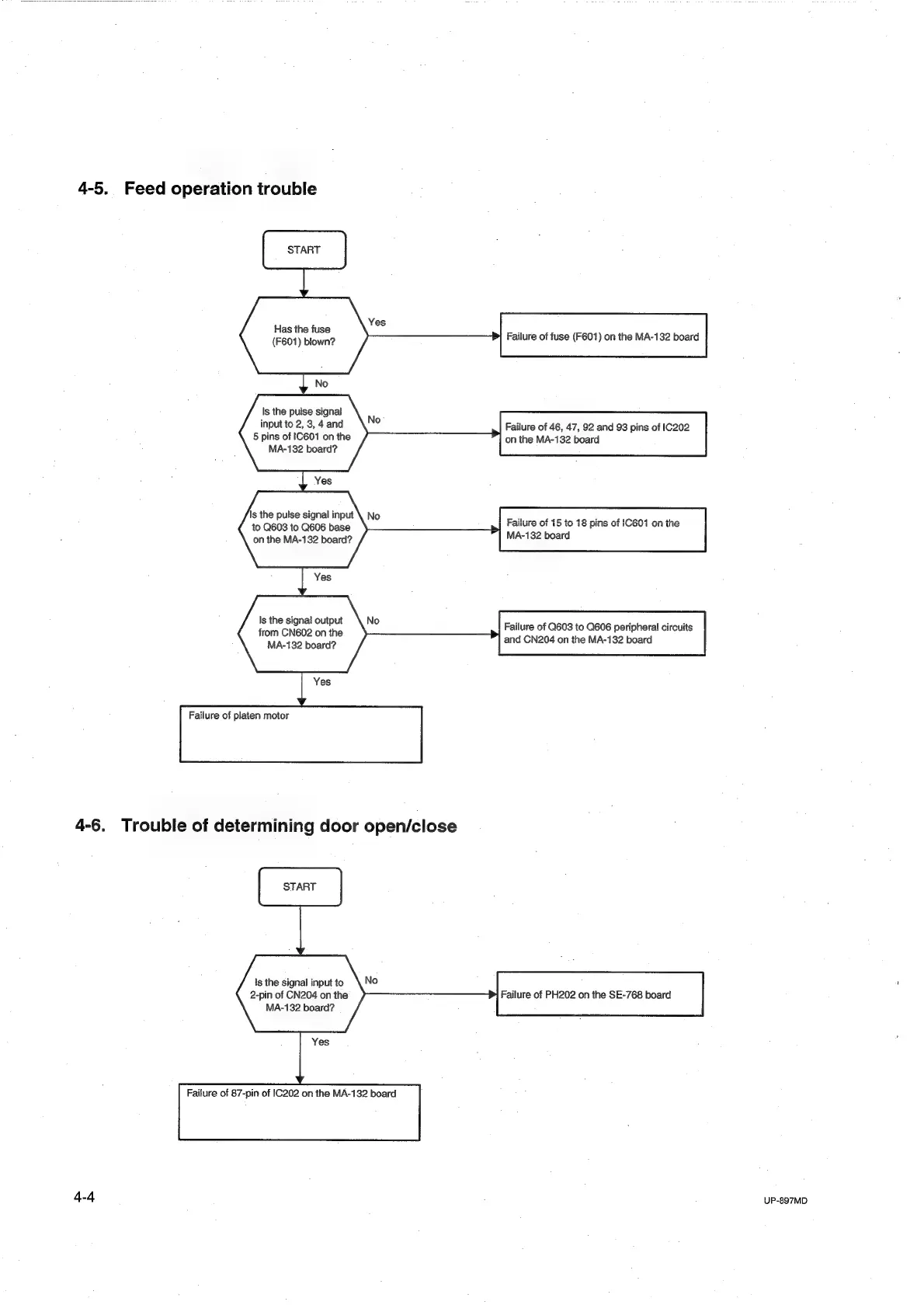

4-5.
Feed
operation
trouble
Has
the
fuse
(F601)
blown?
Failure
of
fuse
(F601)
on
the
MA-132
board
Is
the
pulse
signal
input
to
2, 3,
4
and
5
pins
of
IC601
on
the
MA-132
board?
Failure
of
46,
47,
92
and
93
pins
of
IC202
on
the
MA-132
board
Is
the
pulse
signal
input
to
Q603
to
Q606
base
on
the
MA-132
board?
Failure
of
15
to
18
pins
of
MA-132
board
Is
the
signa!
output
from
CN602
on
the
MA-132
board?
Failure
of
Q603
to
Q606
peripheral
circuits
and
CN204
on
the
MA-132
board
Failure
of
platen
motor
4-6.
Trouble
of
determining
door
open/close
1s
the
signal
input
to
2-pin
of
CN204
on
the
MA-132
board?
Failure
of
PH202
on
the
SE-768
board
Failure
of
87-pin
of
IC202
on
the
MA-132
board
UP-897MD
