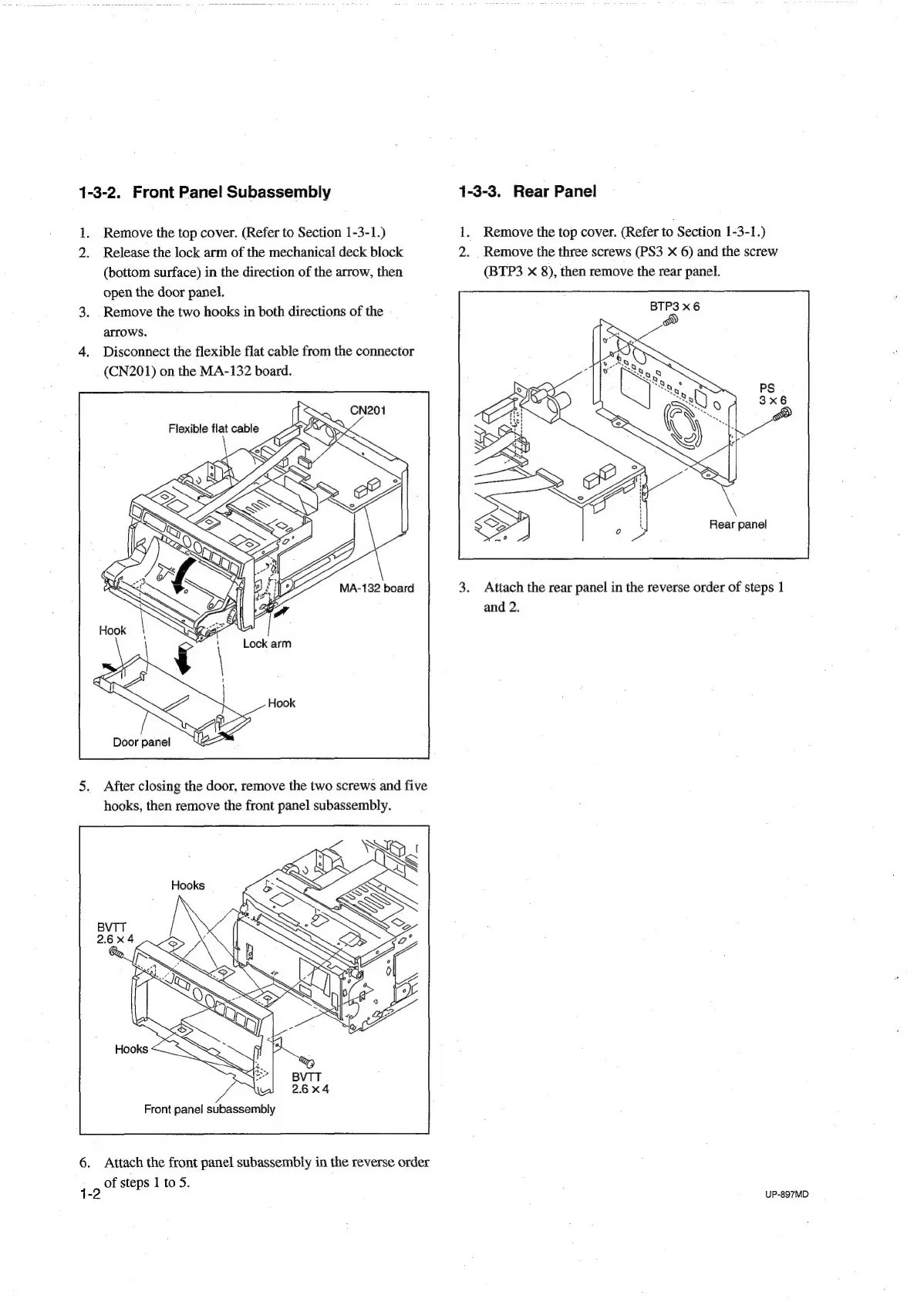

1-3-2. Front Panel Subassembly 1-3-3. Rear Panel
1. Remove the top cover. (Refer to Section 1-3-1.) 1. Remove the top cover. (Refer to Section 1-3-1.)
2. Release the lock arm of the mechanical deck block 2. Remove the three screws (PS3 X 6) and the screw
(bottom surface) in the direction of the arrow, then (BTP3 X 8), then remove the rear panel.
open the door panel.
3. Remove the two hooks in both directions of the
arrows.
4. Disconnect the flexible flat cable from the connector
(CN201) on the MA-132 board.
| > | | 5 J Rear pane)
3. Attach the rear panel in the reverse order of steps 1
and 2.
Door panel
5. After closing the door, remove the two screws and five
hooks, then remove the front panel subassembly.
Front panel subassembly
6. Attach the front panel subassembly in the reverse order
of steps 1 to 5.
-2 UP-897MD
