Sony UP-897MD - Board Layouts

KY-572, SE-768, SE-769, SU-112 KY-572, SE-768, SE-769, SU-112
Section 9
Board Layouts
Index
Board name Page
KY-572 9-1
SE-768 9-1 ,
SE-769 9-1
SU-112 9-1
MA-132 9-2

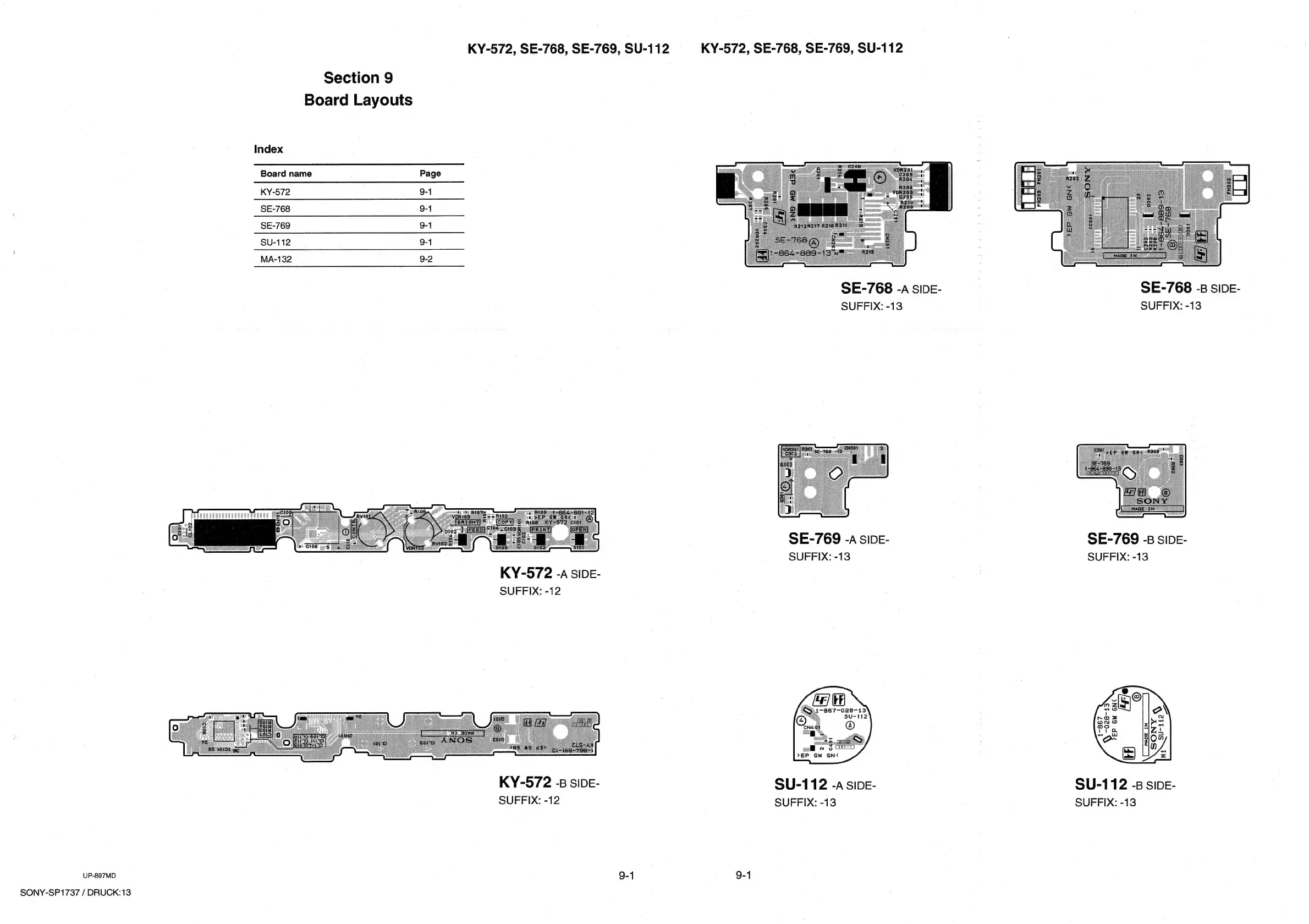

SE-768 -a SIDE- SE-768 -B SIDE-
SUFFIX: -13 SUFFIX: -13
SE-769 -A SIDE- SE-769 -B SIDE-
SUFFIX: -13 SUFFIX: -13
KY-572 -A SIDE-
SUFFIX: -12
-867-028-13
SU-112
eda 6 G2
>EP GW GN¢
KY-572 -B SIDE- SU-112 -a SIDE- SU-112 -B SIDE-
SUFFIX: -12 SUFFIX: -13 SUFFIX: -13
UP-897MD 9-14 9-1
