Sony VPL-CS7 - Lens Gear; Fan Holder

1-4
VPL-CS7/ES2

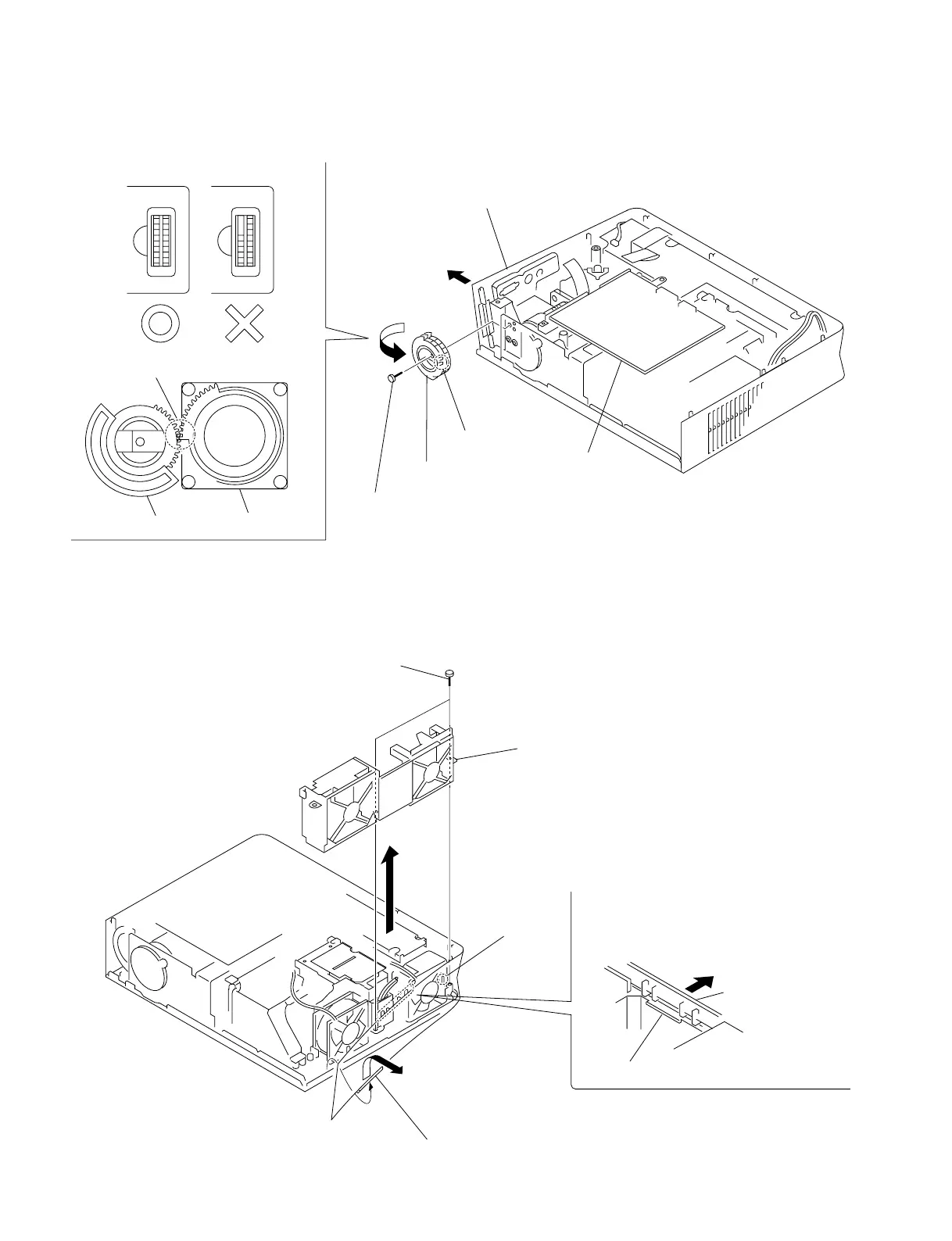

1-3-4. Lens Gear
. Remove the C board. (Refer to 1-3-3.)
1-3-5. Fan Holder
ZOOM/FOCUS ZOOM/FOCUS
Fan holder
2 Open the side panel assembly in the
direction of the arrow A.
4 Remove the Iens gear
in the direction of the arrow B.
3 Two dowels
A
B
1 Screw
(+PSW3 x 8)
C board
Lens gear
Lens
Engage the gears.
1 Two screws
(+BVTP3 x 10)
5 Remove the fan holder
while taking care so that it must
not be caught by other parts.
4 Dowel
2 Remove the side panel assembly
in the direction of the arrow A.
3 Remove the four claws
in the direction of the arrow B.
A
B
Side panel assembly
