Sony VPL-CS7 - Fan (Sirocco)

1-12
VPL-CS7/ES2
CN815
CN809
CN811
CN806
CN802
4 Three screws
(+BTP3 x 10)
2 Three screws
(+BTP3 x 10)
6 Fan holder
9 D.C. fan (Sirocco)
8 Two dowels
5 Remove the fan holder
in the direction of the arrow.
3 SA board
C board
7 Remove the harness.
Dowel
D.C. fan (Sirocco)
1 Remove the
fuse connector assembly.

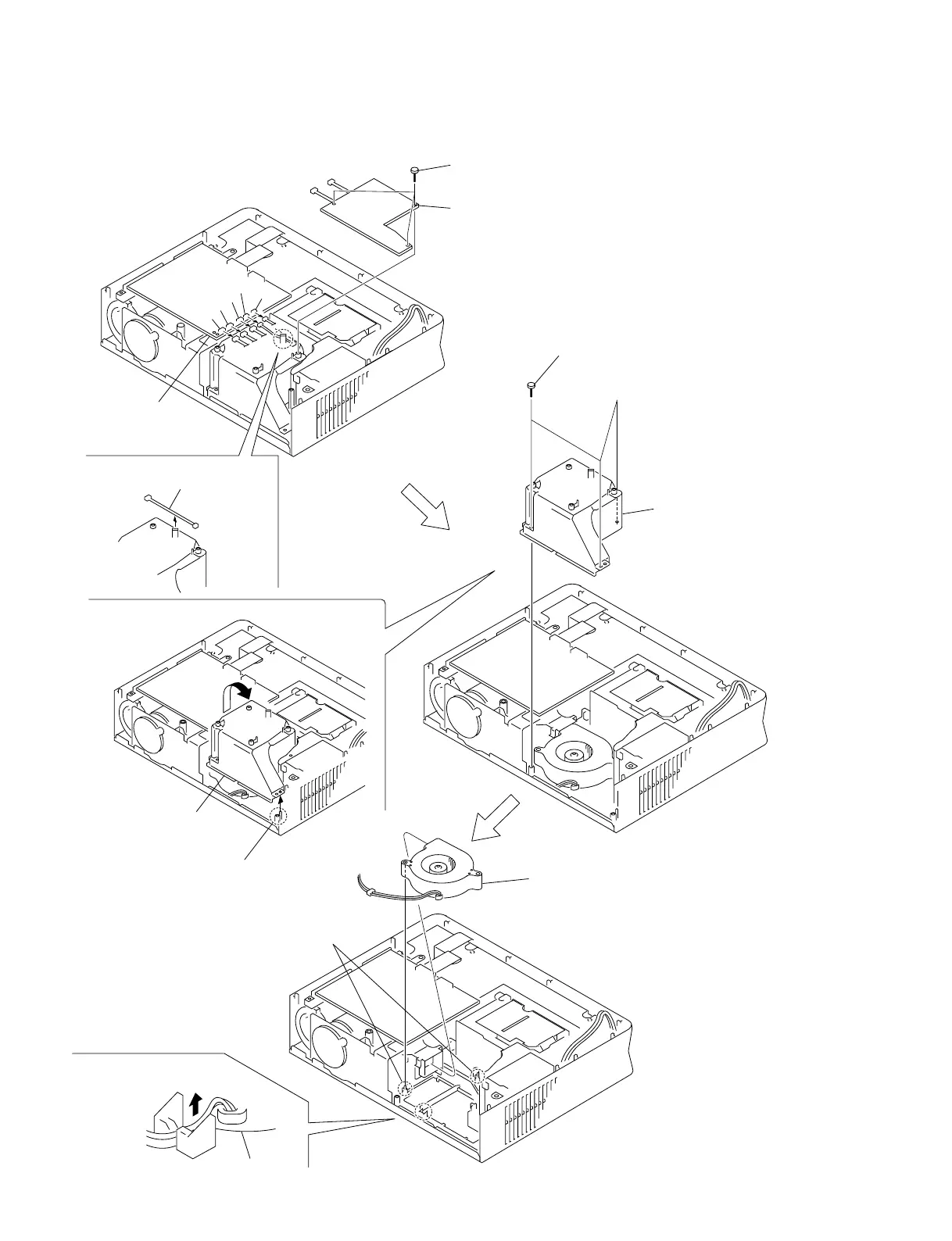

1-3-16. D.C. Fan (Sirocco)
