Sony VPL-CS7 - Adjuster Block Assembly

1-13
VPL-CS7/ES2
4 Optics block assembly
. Remove the optics block assembly.
(Refer to 1-3-8.)
5 Three screws
(+BTP3 x 10)
7 Dowel
8 Remove the adjuster block assembly
in the direction of the arrow.
6 Dowel
9 Adjuster block assembly
1 C board
. Remove the C board.
(Refer to 1-3-3.)
3 Lamp house
. Remove the lamp house.
(Refer to 1-3-7.)
2 Fan holder
. Remove the fan holder.
(Refer to 1-3-5.)

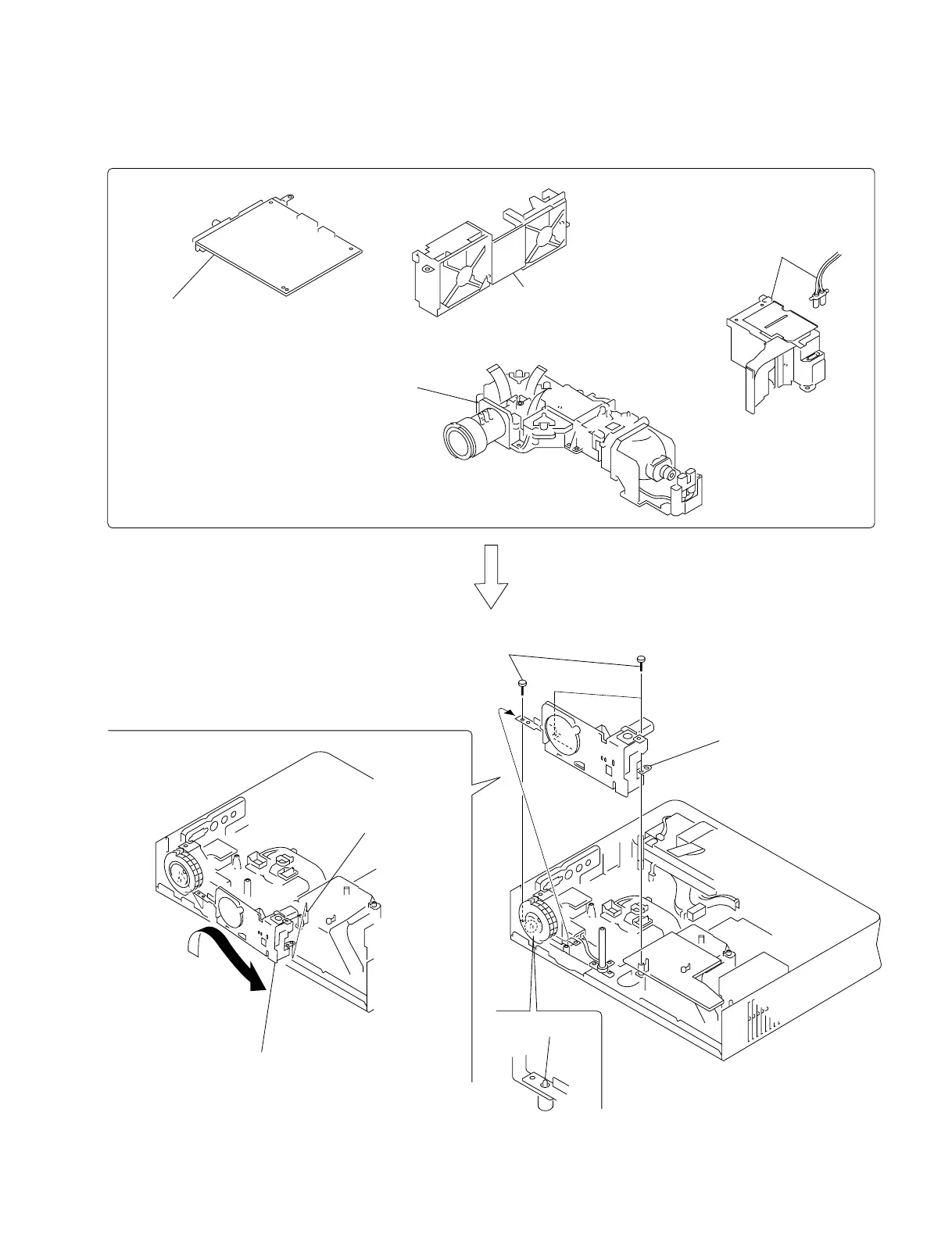

1-3-17. Adjuster Block Assembly
. To remove the adjuster block assembly, remove the related parts beforehand.
