Sony VPL-CS7 - Fan (60 MM) and D.C. Fan (70 MM); Lamp House

1-5
VPL-CS7/ES2

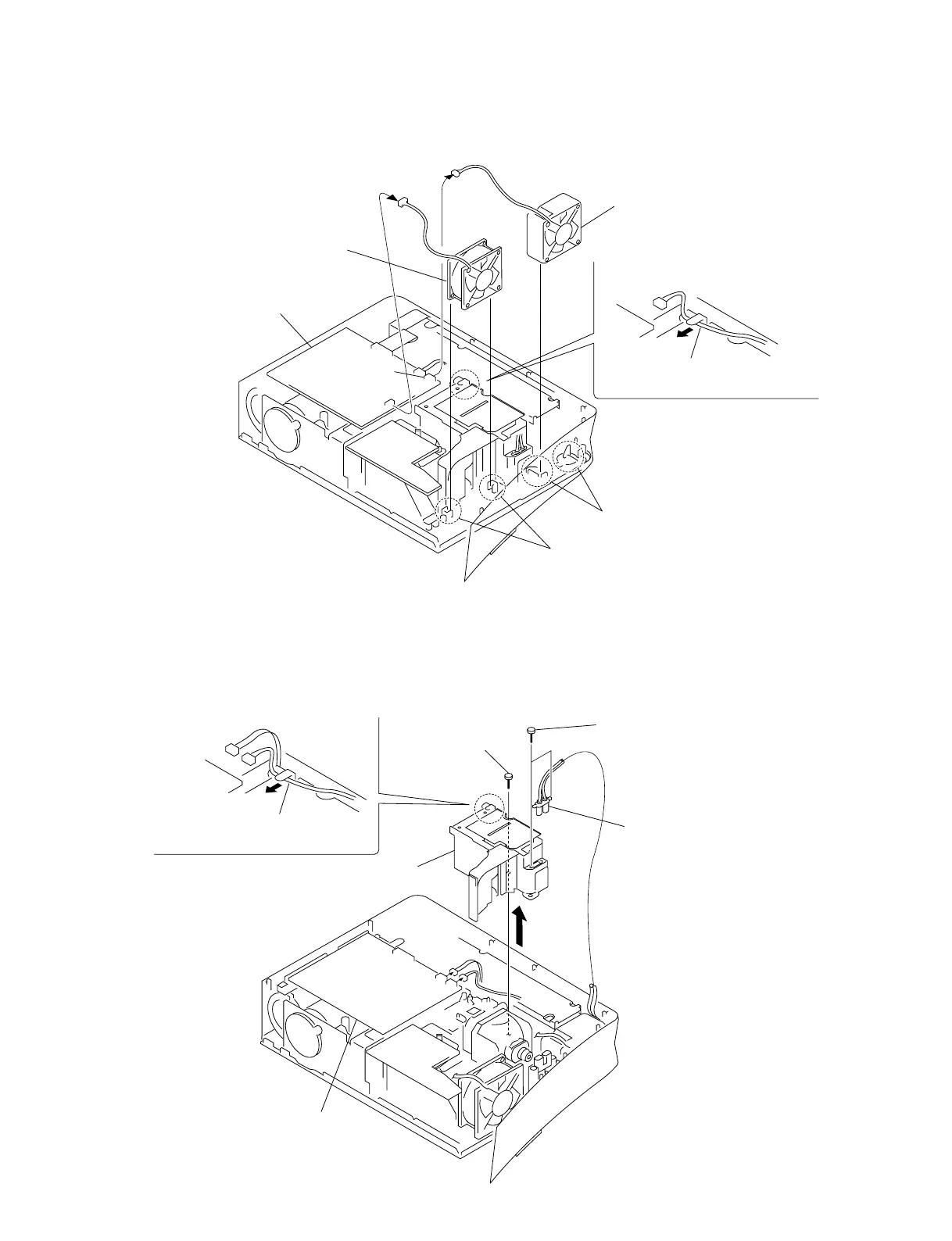

1-3-6. D.C. Fan (60 mm) and D.C. Fan (70 mm)
. Remove the fan holder. (Refer to 1-3-5.)
1 Two grooves
4 Two grooves
2 D.C. fan (70 mm)
5 D.C. fan (60 mm)
CN811
C board
CN810
3 Remove the harnesses.
5 Lamp house
C board
2 Two screws
(+BTP3 x 10)
3 Lamp power supply
4 Screw
(+BTP3 x 10)
CN807
CN810
1 Remove the harness.
1-3-7. Lamp House
. Remove the fan holder. (Refer to 1-3-5.)
