VPL-CS7/ES2

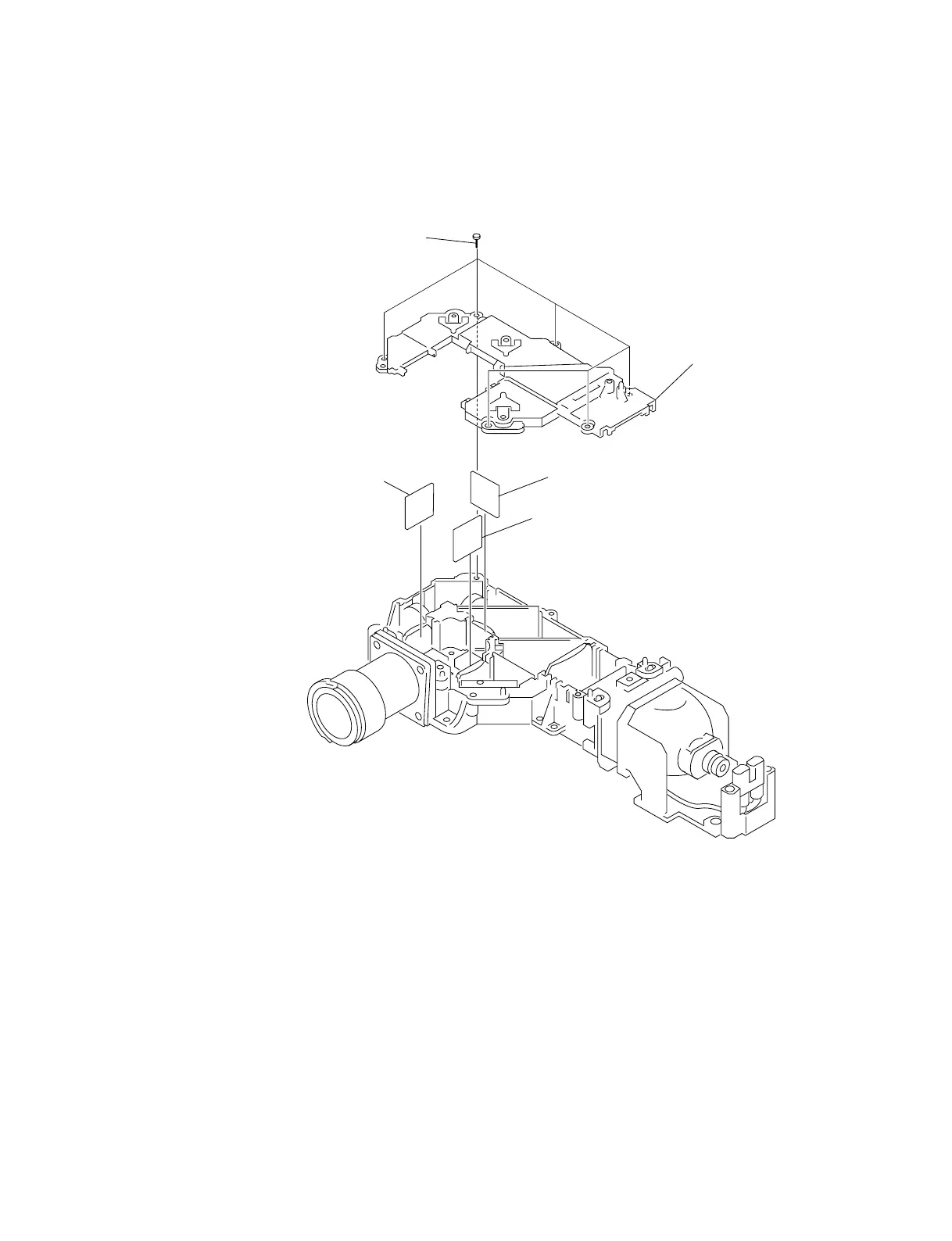

5 Incidence polarizer (B) assembly
3 Incidence polarizer (R) assembly
4 Incidence polarizer (G) assembly
2 Unit cover
1 Six screws
(+BTP3 x 10)
1-3-10. Incidence Polarizer (R), (G), (B)
. Remove the optics unit assembly. (Refer to 1-3-8.)
. Remove the prism block assembly. (Refer to 1-3-9.)
