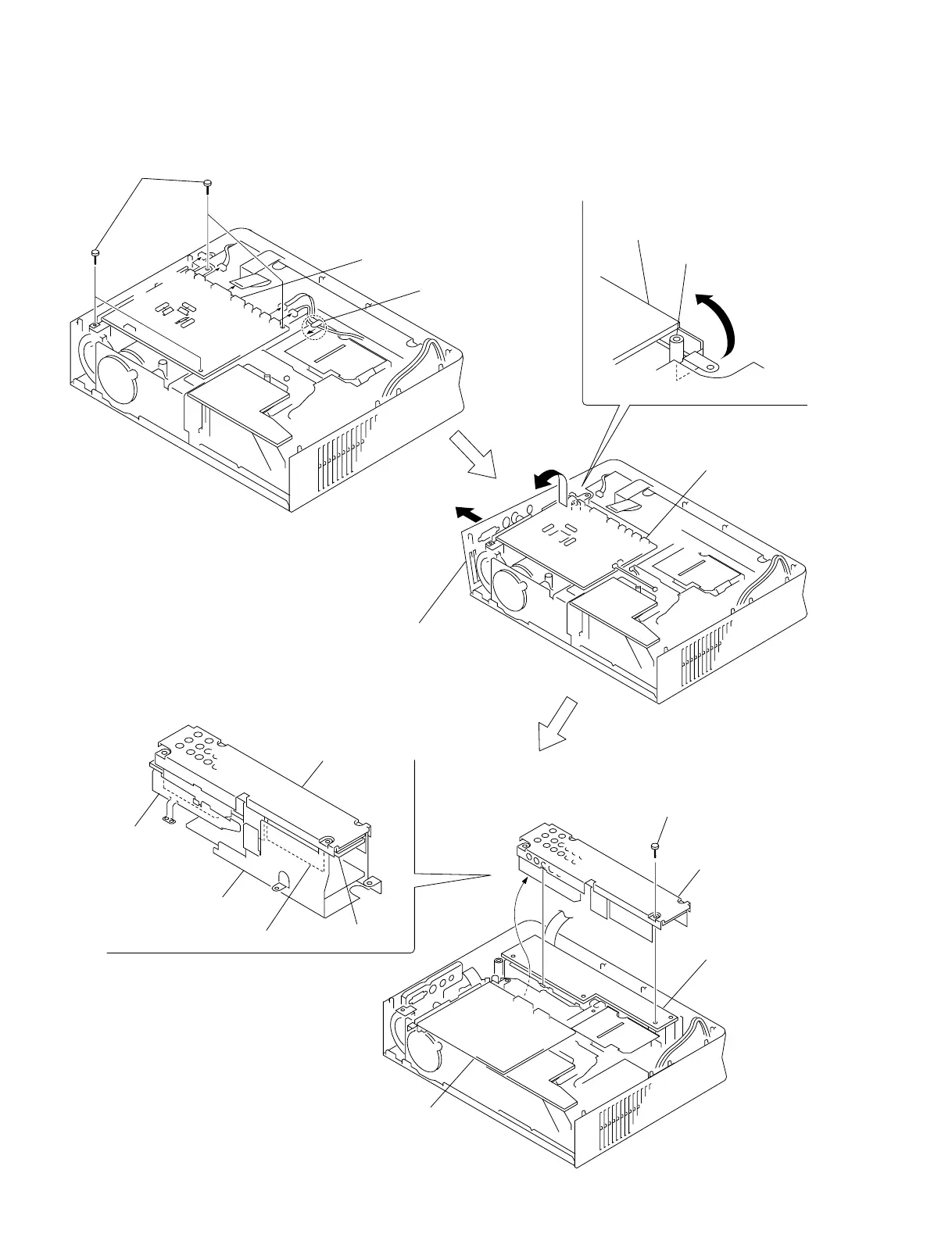

Sony VPL-CS7 - Side Panel Assembly-1

1-8
VPL-CS7/ES2
CN804
CN501
CN651
CN601
CN807
CN810
CN802
CN812
CN906
2 Four screws
(+PSW3 x 8)
5 Screw
(+PSW3 x 8)
6 Cover (G),
Sheet (G)
1 Remove the harness.
C board
C board
C board
G board
G board
3 Open the side panel assembly in the
direction of the arrow A.
4 Remove the C board
in the direction of the arrow B.
A
B
B
Side panel shaft
Cover (G)
Sheet (G)
Cover (B)
Cover (B2)
1-3-11. Side Panel Assembly-1
