Sony VPL-CS7 - Exploded Views

4-2
VPL-CS7/ES2
Cover

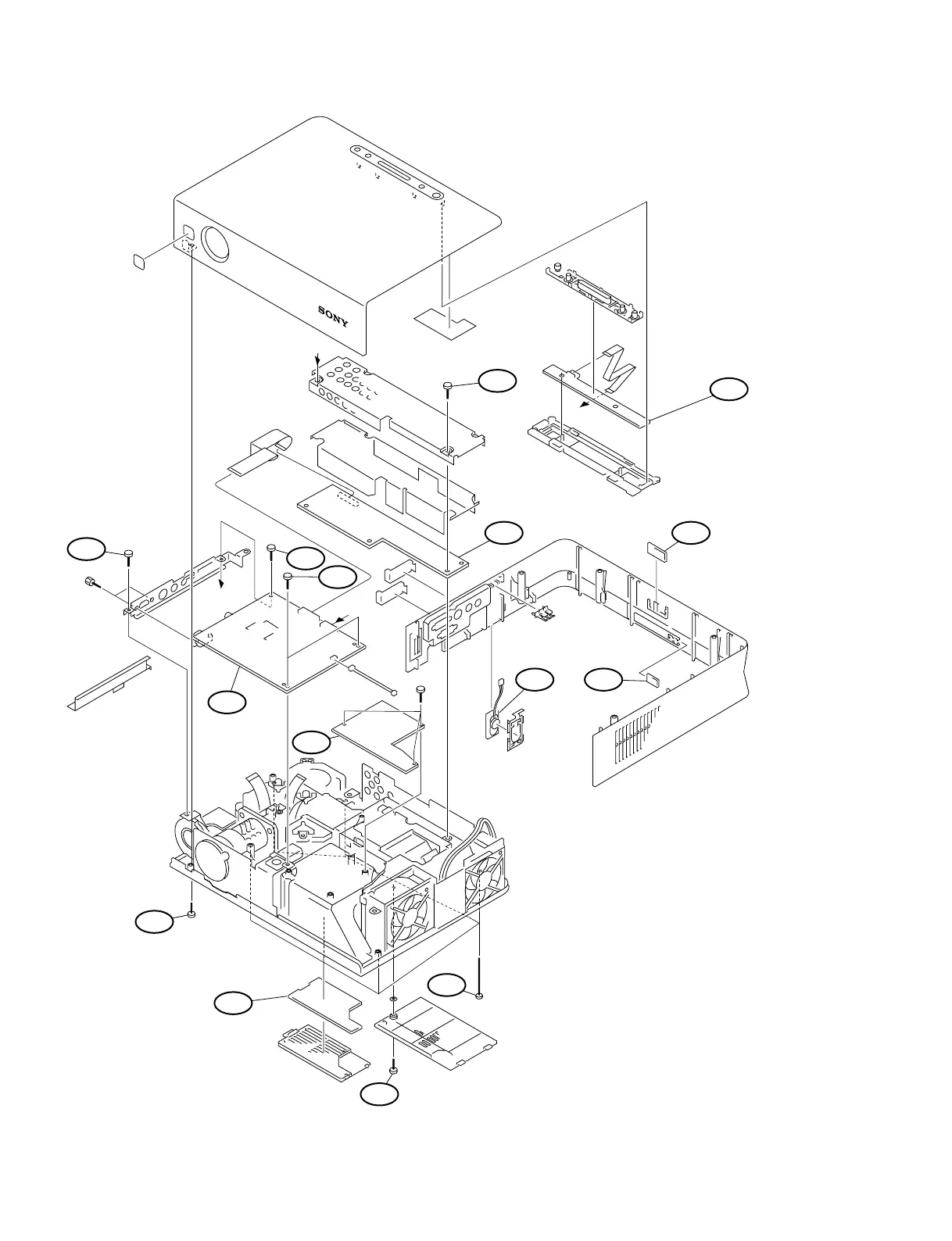

4-2. Exploded Views
BTP3 x 10
4
9
9
9
10
9
9
9
2
7 6
8
5
3 1
A
A
B
B
No. Part No. SP Description
1 A-1061-840-A s MOUNTED CIRCUIT BOARD, NR
2 A-1061-845-A s MOUNTED CIRCUIT BOARD, SA
(FOR VPL-CS7)
A-1067-069-A s MOUNTED CIRCUIT BOARD, SA
(FOR VPL-ES2)
3 A-1067-060-A s MOUNTED CIRCUIT BOARD, G
4 A-1067-061-A s MOUNTED CIRCUIT BOARD, C
(FOR VPL-CS7)
A-1067-062-A s MOUNTED CIRCUIT BOARD, C
(FOR VPL-ES2)
5 A-1078-661-A s MOUNTED CIRCUIT BOARD, H
6 A-1078-662-A s MOUNTED CIRCUIT BOARD, L
7 ! A-1603-156-B s SPEAKER ASSY
8 ! 4-099-113-01 s FILTER (E1)
9 4-382-854-01 s SCREW +PSW M3X8(EP-FE/ZN/CM2)
10 4-099-122-01 s SCREW +BV3X70 TYPE2,SPECIAL
