Sony VPL-CS7 - Page 41

4-3
VPL-CS7/ES2

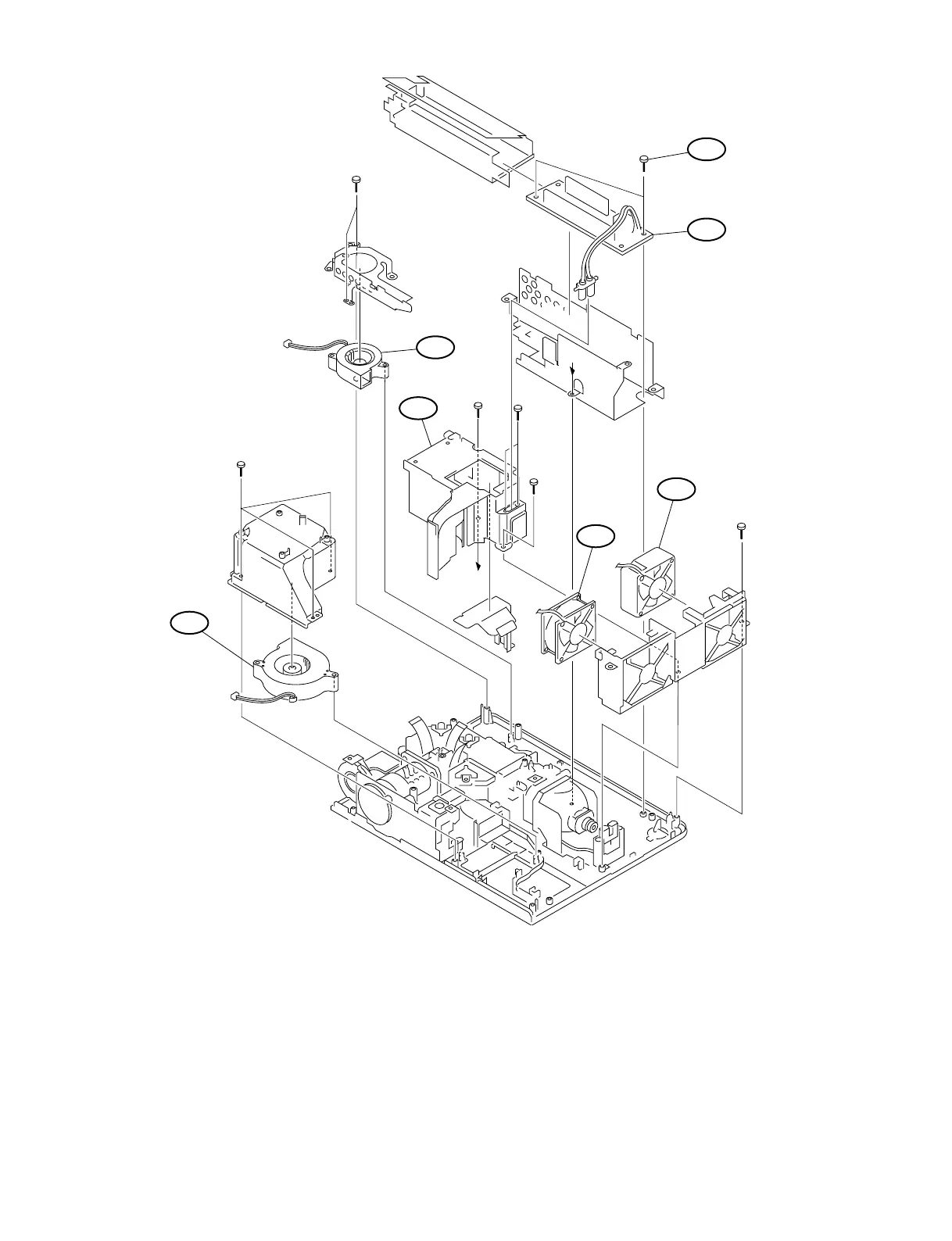

Chassis
BTP3 x 10
BTP3 x 10
BTP3 x 10
BTP3 x 10
BTP3 x 10
BTP3 x 10
A
A
101
107
104
103
105
106
102
No. Part No. SP Description
101 ! 1-468-803-11 s LAMP POWER SUPPLY
102 ! 1-787-065-21 s D.C. FAN (SIROCCO)
103 ! 1-787-078-11 s DC FAN
104 ! 1-787-079-11 s D.C. FAN (SIROCCO)
105 ! 1-787-080-11 s DC FAN
106 4-099-158-02 s HOUSE, LAMP(VPL-CS7)
4-099-158-11 s HOUSE, LAMP(VPL-ES2)
107 4-382-854-01 s SCREW +PSW M3X8(EP-FE/ZN/CM2)
7-685-547-19 s SCREW +BTP 3X10(EP-FE/ZNBK/CM2)
